| Weight(KG) |
1.6 |

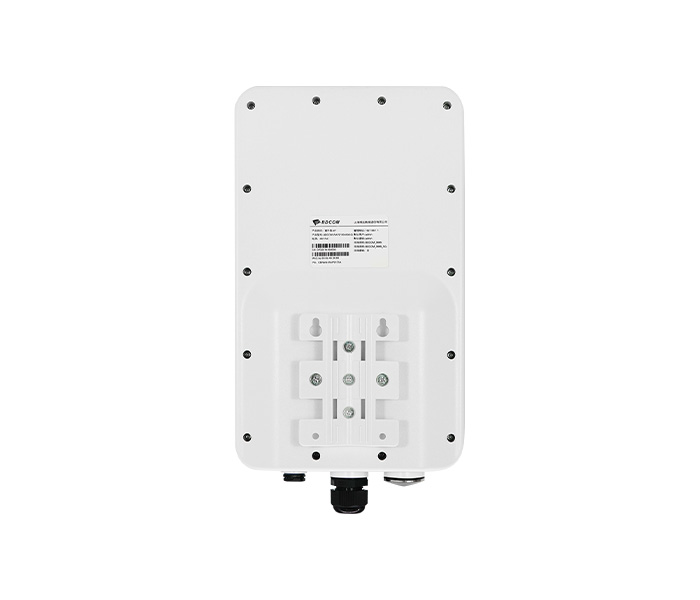

| Mounting method |
Pole-mount/Wall-mount |
| Dimensions(mm) |
304x180x88 |
| Ethernet port |
1 GE WAN port
(PoE supported) |
| Local power supply |
PoE input or 12V DC |
| PoE power supply |
802.3at |
| Antenna type |
Built-in omnidirectional |
| Antenna gain |
8dBi |
| Operating frequency bands |
802.11a/n/ac : 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac: 2.4GHz-2.483GHz |
| Wi-Fi data rate |
2.4G: 2*2 11ax 576Mbps
5G: 2*2 11ax 2400Mbps |
| Maximum total transmitting power (The actual transmission power is subject to relevant regulations.) |
2.4 GHz: 27 dBm
(combined power)
5 GHz: 27 dBm
(combined power) |
| Modulation technology |
OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS:
DBPSK@1Mbps, DQPSK@2Mbps,
CCK@5.5/11Mbps
MIMO-OFDM(11n):
MCS 0-15
MIMO-OFDM(11ac):
MCS 0-9
MIMO-OFDM(11ax):
MCS 0-11 |
| Modulation mode |
11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps,
DBPSK@1Mbps
11a/g: OFDM:
64QAM@48/54Mbps,16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM,
1024QAM |
| Power adjustment |
Automatic |
| Reset |
Supported |
| Status LED |
SYS, WLAN, Link/Act |
| Operating temperature/ Storage temperature |
-35℃ ~55℃ /-40℃ ~70℃ |
| Operating humidity / Storage humidity |
10%~95% (non-condensing) |
| Protection class |
IP67 |
| Power consumption |
<18W |
| MTBF |
>250000H |

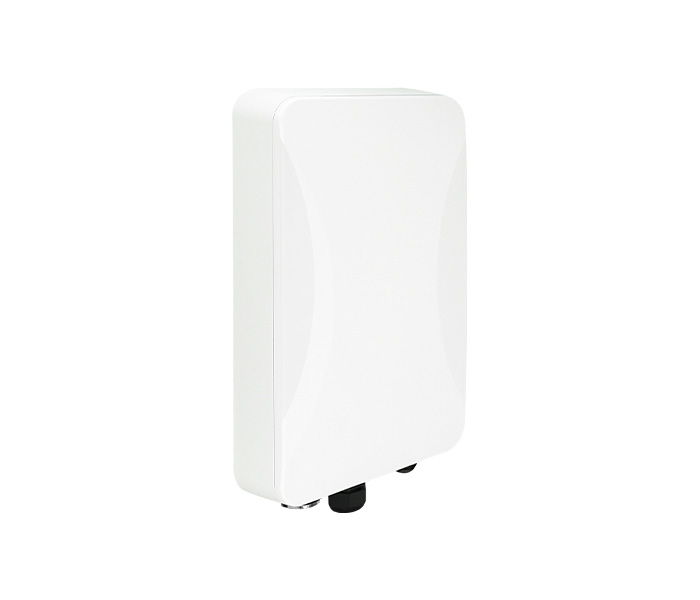

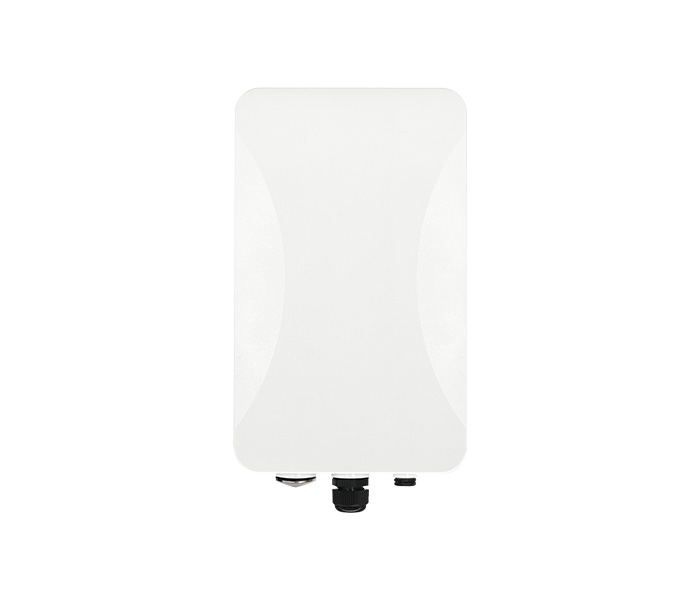

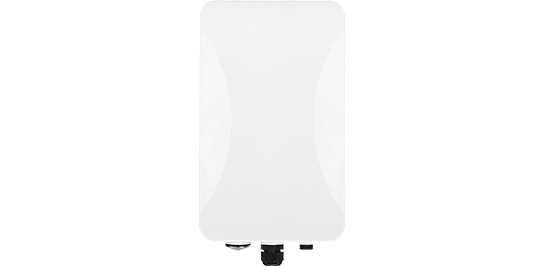

WAP2100-I630-Q
