>Products>Switch

L3 Managed Multi-Giga PoE++ Switch

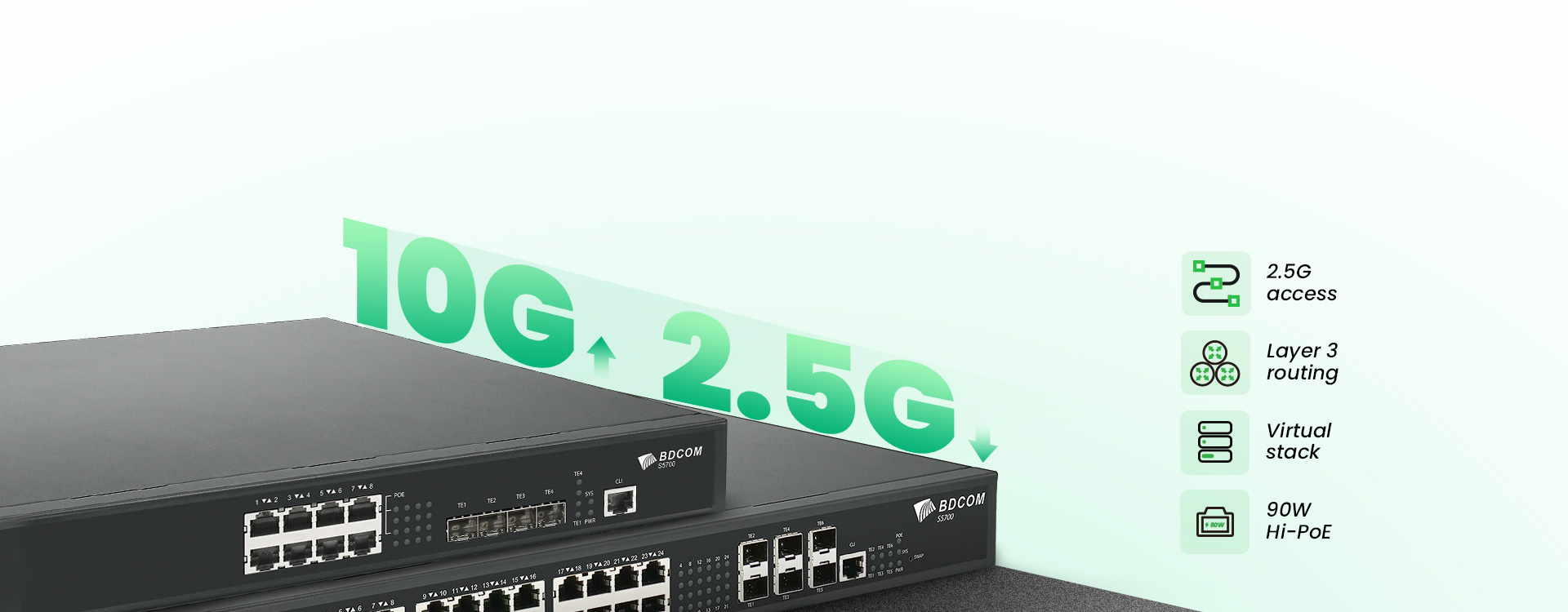

S5700 Multi-giga series boosts the switching capacity of enterprise LAN network up to a whole new level, and makes the best use of WiFi6 for unprecedented fast experience

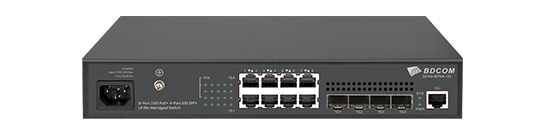

S5700-8EP4X

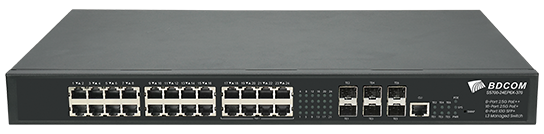

S5700-24EP6X

Highlight Features

Advanced hardware architecture, cutting edge processing capability

S5700-P Series supports up to a maximum of 740W PoE power budget;

Perfect security authentication mechanisms: IEEE 802.1x, Radius and TACACS+.

consult

Advanced hardware architecture, cutting edge processing capability

S5700-P Series 1U pizza-box switch realizes the ultra-high port density of 8-Port 2.5G PoE++, 16-Port 2.5G PoE+ and 6-Port 10G SFP+. Equipped with high-performance ASIC switch chips

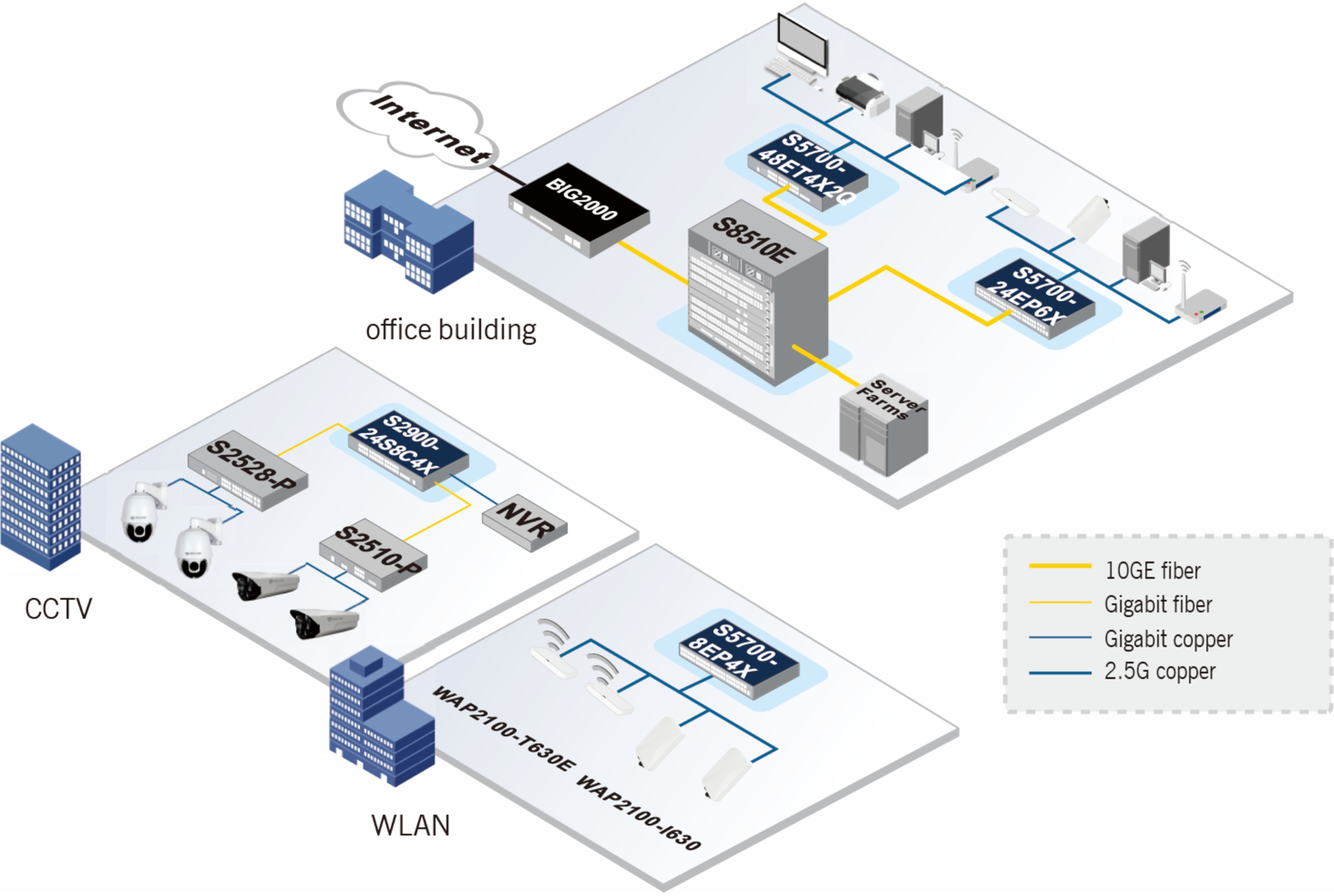

Typical Application

Technical Parameter

S5700-8EP4X S5700-24EP6X

Interface
RJ45	8-Port 2.5G/GE PoE++
SFP+	4-Port 10G/GE
Console	1-Port RJ45
Switching Capacity	120Gbps
Forwarding rate	90 Mpps
Chassis
Dimensions (WxDxH)(mm)	30024044
Package
Dimensions (WxDxH)(mm)	576x448x94
Power supply	AC: 100V-240V, 50/60Hz
PoE budget	370W
Total output BTU (1000BTU/H=293W)	1433.45
Noise@25°C(dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	256
MAC	16K
Buffer size(MB)	1.5
Jumbo frame	9K
Routing table
IPv4	512
IPv6	128
ARP table
IPv4	2K
IPv6	2K
Total SVI	63

Interface
RJ45	8-Port 2.5G/GE PoE++ 16-Port 2.5G/GE PoE+
SFP+	6-Port 10G/GE
Console	1-Port RJ45
Switching Capacity	240 Gbps
Forwarding rate	180 Mpps
Chassis
Dimensions (WxDxH)(mm)	44028044
Package
Dimensions (WxDxH)(mm)	576x448x94
Power supply	AC: 100V-240V, 50/60Hz
PoE budget	740W
Total output BTU (1000BTU/H=293W)	2901
Noise@25°C(dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	8K
IPv6	4K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Features

Multicast

IGMP v1/v2c/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

Multicast filtering

MVR

IGMP snooping in certain port and VLAN

Support for transparent passing of multicast traffic without IGMP

snooping in certain port and VLAN

PIM-DM/SM/SSM

IPv4

Static routing, RIP v1/v2, OSPF, BGP

Policy Based Routing(PBR)

ECMP

BFD for static routing, RIP, OSPF, BGP

DHCP: DHCP server, client, relay, snooping

MPLS: MCE

IPv6

IPv4/v6 dual stack

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD V1

MLD snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6-to-4 tunnel

QoS

Traffic classification of port/L2~4 protocol headers/VLAN/CoS/DSCP

CAR traffic control

802.1P/DSCP priority mapping and remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

Tail-Drop, WRED

Traffic supervision and traffic shaping

8 queues per port

Security

DDoS attack prevention, TCPSYN/UDP/ARP Flood attack prevention

IEEE 802.1x authentication, multiple-user authentication, guest vlan

L2~L4 ACL

Anti-DOS/IP spoofing/TCP/ping/SYN/ICMP flood attacks

Broadcast/multicast/unknown-unicast storm-control

Port isolation

Port Security, MAC address limitation, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

DAI(Dynamic ARP Inspection)

IPSG(IP Source Guard)

IEEE 802.1x certification

MAC-based authentication

AAA

Radius, TACACS+

Multiple user privileges

Reliability

802.3ad Static/LACP link aggregation,

EAPS

G.8032 ERPS

ISSU

VRRP

GR for OSPF and BGP

BFD for OSPF and BGP

BVSS virtual stacking system

Management

CLI: Console, Telnet, SSHv1/2

Web-GUI: HTTP, HTTPS/SSL

SNMP v1/v2c/v3, RMON, SNMP alarm/inform/traps

Upload and download of FTP/TFTP/SFTP files

Debugging

Syslog for alarm/notification/command/debug

Web-GUI: HTTP, HTTPS/SSL

NTP

SPAN, RSPAN (1:1 and N:1 mirror)

LLDP, LLDP-MED

sFLOW

ZTP(Zero Touch Provisioning)

Optical DDM

Ethernet cable diagnosis

802.3ah, 802.1ag

Environment

Operating temperature/humidity: 0℃ -50℃ ,10%-90% non-condensing

Storage temperature/humidity: -20℃ -70℃ , 5%-95% non-condensing

Ordering Information

S5700-P series switches
S5700-8EP4X	8-Port 2.5G PoE++ 4-Port 10G SFP+ L3-lite Managed Switch (built-in single AC-220V power supply; 370W POE budget; with cooling fan, 1U, standard 19-inch rack-mounted installation)
S5700-24EP6X	24-Port 2.5G PoE+ 6-Port 10G SFP+ L3 Managed Switch (built-in single AC-220V power supply; with cooling fan, 1U, standard 19-inch rack-mounted installation)
