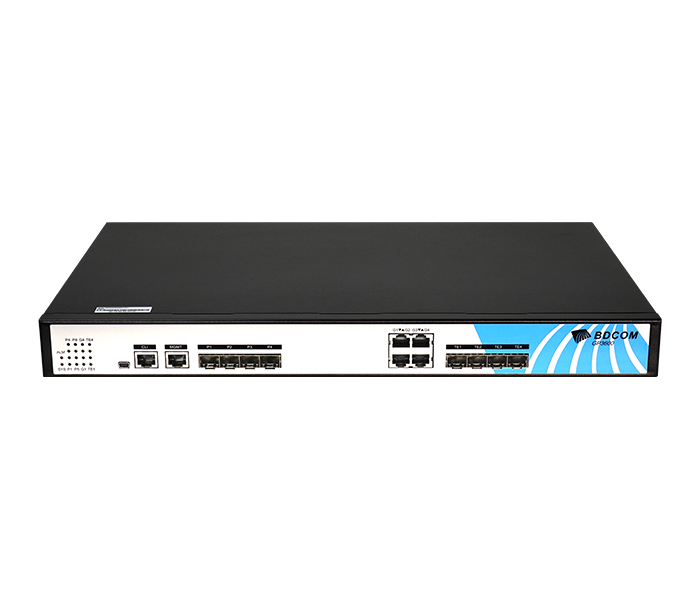

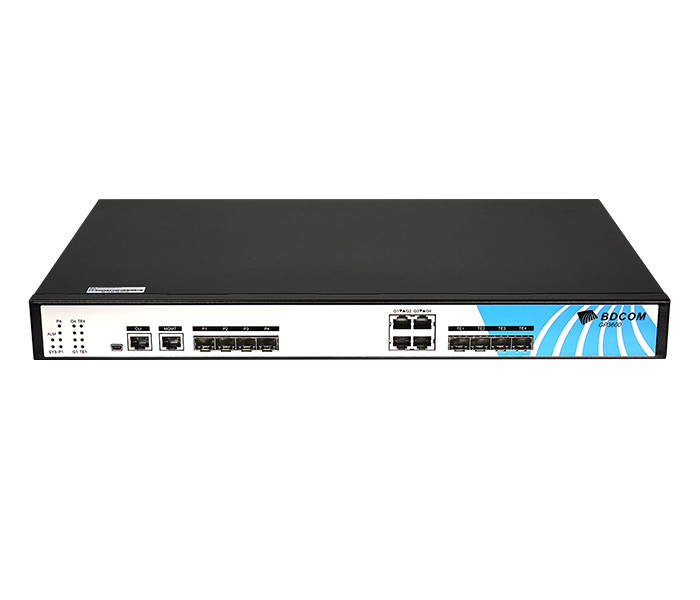

Pizza-box GPON OLT

BDCOM GP3600 Series complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.


Highlight Features

Support 1.25Gbps uplink  and 2.5Gbps downlink  bandwidth

Efficient bandwidth usage and Ethernet services

The Splitting ratio ups to 1:128

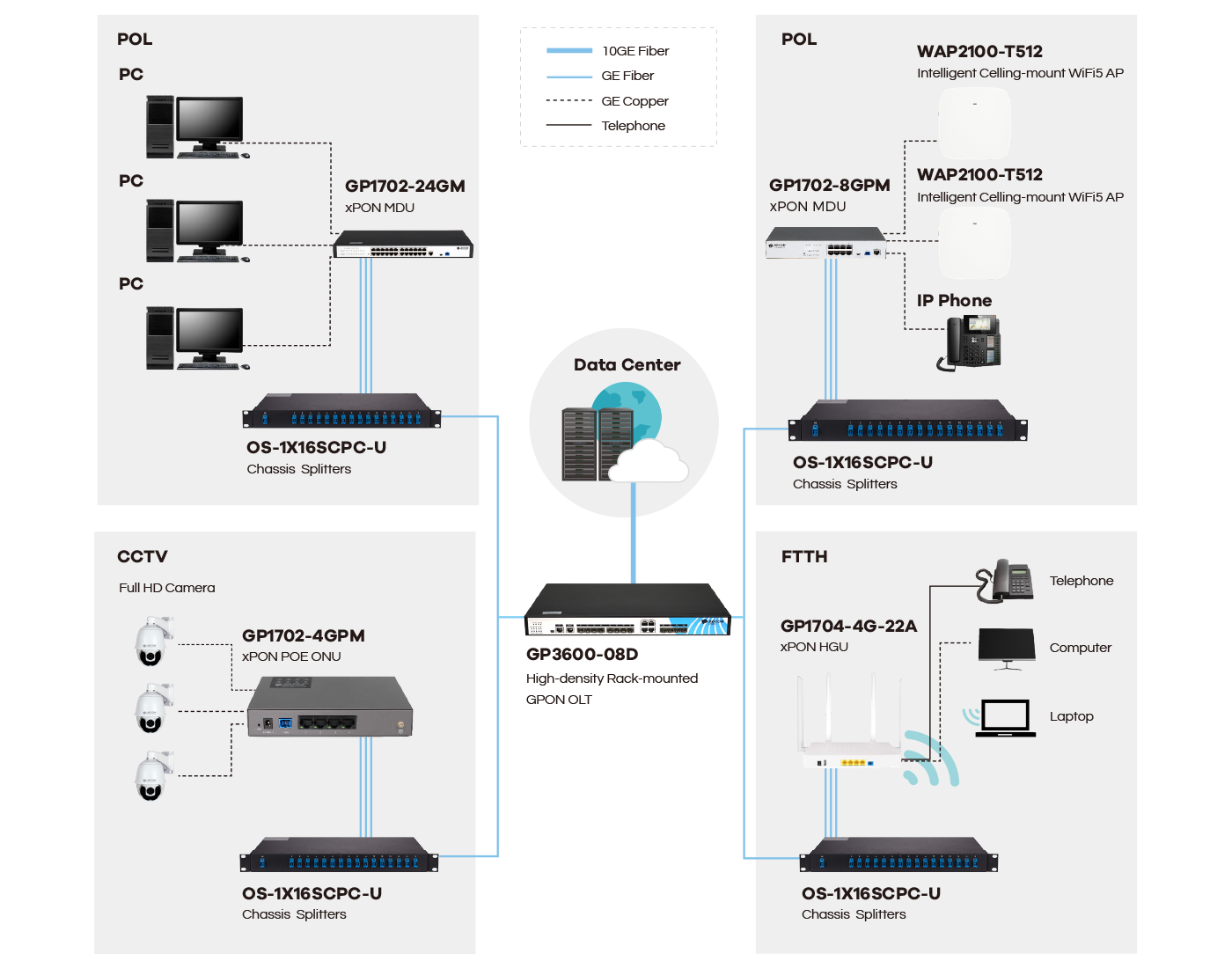

Typical Application

Technical Parameter

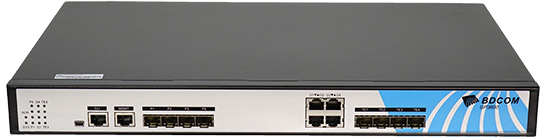

PON ports 4
GE uplink 4-Port Gigabit RJ45
10GE uplink 4-Port 10G/GE SFP+
Supported GPON SFP module Class B+, C+, C++, C+++
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 1024
Flash (MB) 32
Backplane (Gbps) 126
MAC table 24K
Buffer size (MB) 2
Jumbo frame (KB) 2
IPv4 routing table 24K
IPv6 routing table 6K
Active VLAN 4,094
SVI number 512
Forwarding mode Store-and-forward
AC (V) 100~240
Max. consumption (W) 50
Total output BTU (note: 1000 BTU/hr = 293W) 170.65
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 440.5 x 280 x 44.5
Weight (Kg)(empty) 3.8
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 4.8
Operating
Temperature 0~45°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord, rackmount kits, console cable
MTBF (Hr) 95,000

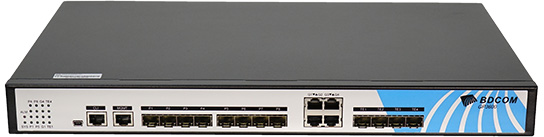

PON ports 8
GE uplink 4-Port Gigabit RJ45
10GE uplink 4-Port 10G/GE SFP+
Supported GPON SFP module Class B+, C+, C++, C+++
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 1024
Flash (MB) 32
Backplane (Gbps) 126
MAC table 24K
Buffer size (MB) 2
Jumbo frame (KB) 2
IPv4 routing table 24K
IPv6 routing table 6K
Active VLAN 4,094
SVI number 512
Forwarding mode Store-and-forward
AC (V) 100~240
Max. consumption (W) 60
Total output BTU (note: 1000 BTU/hr = 293W) 204.8
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 440.5 x 280 x 44.5
Weight (Kg)(empty) 3.8
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 4.8
Operating
Temperature 0~45°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord, rackmount kits, console cable
MTBF (Hr) 95,000

Features

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP)

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCPSYN-flood, UDP-flood, ARPflood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP

Ordering Information

GP3600 Series
BDCOM GP3600-04L 4-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (single 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-04L-2AC 4-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (dual 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-08D 8-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (single 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-08D-2AC 8-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (dual 100-240V power supply, 19-inch rack-mounted installation)
Optical modules
OLT-GSFP-C+ OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C++ OLT SFP module, Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C+++ OLT SFP module, Class C+++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
