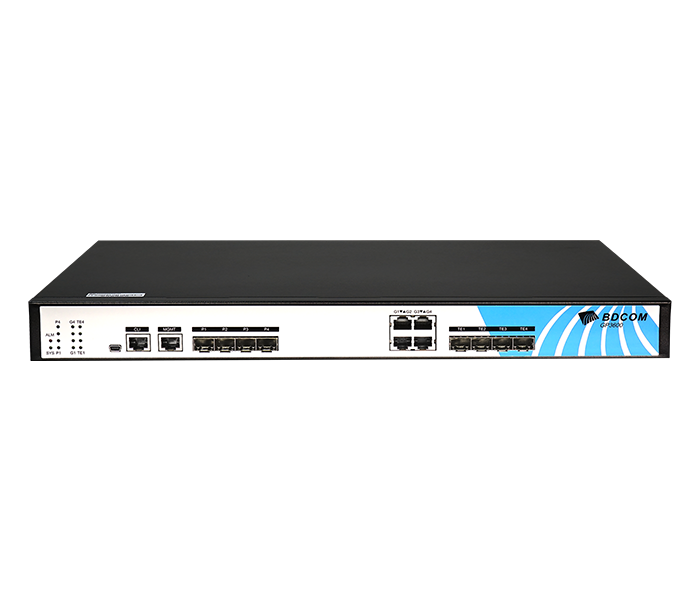

High-density Pizza-box GPON OLT

BDCOM GP3600-C Series complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It fully suppor ts CTC2.0, automatic discovery and  cooperation with ONUs of different manufacturers.

GP3600-04C
GP3600-08C
GP3600-16C

Support 1.25Gbps uplink  and 2.5Gbps downlink  bandwidth

Efficient bandwidth usage and Ethernet services

The Splitting ratio ups to 1:128

consult

Typical Application

Technical Parameter

GP3600-04C GP3600-08C GP3600-16C
Service interface
PON ports 4
Gigabit RJ45 4
10G SFP+ 4
40G QSFP+ /
Supported GPON SFP module Class C+/C++/C+++/D+
Management interface
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
System capacity
DRAM (GB) 4
Flash (GB) 2
Backplane (Gbps) 216Gbps
MAC table 32K
Jumbo frame (KB) 9
IPv4 routing table 8K
IPv6 routing table 2K
Active VLAN 4,094
SVI number 1K
Forwarding mode Store-and-forward
Power supply
AC (V) 100~240
DC (V) 36~72
Power slots 1 fixed AC
Max. consumption (W) 35
Total output BTU (note: 1000 BTU/hr = 293W) 170.6
Cooling system
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 50
Appearance
Chassis
Dimensions(WxDxH mm) 440.5 x 280 x 44.5
Weight (Kg)(empty) 3.8
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 4.8
Environmental specifications
Operating
Temperature 0~50°C
Humidity (non-condensing) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Accessories
Parts Power cord, rackmount kits, console cable
Reliability
MTBF (Hr) 200,000
Service interface
PON ports 8
Gigabit RJ45 4
10G SFP+ 8
40G QSFP+ /
Supported GPON SFP module Class C+/C++/C+++/D+
Management interface
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
System capacity
DRAM (GB) 4
Flash (GB) 2
Backplane (Gbps) 880Gbps
MAC table 128K
Jumbo frame (KB) 9
IPv4 routing table 8K
IPv6 routing table 2K
Active VLAN 4,094
SVI number 1K
Forwarding mode Store-and-forward
Power supply
AC (V) 100~240
DC (V) 36~72
Power slots 2
Max. consumption (W) 60
Total output BTU (note: 1000 BTU/hr = 293W) 204.8
Cooling system
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 50
Appearance
Chassis
Dimensions(WxDxH mm) 442x280x44
Weight (Kg)(empty) 4.2
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 5.2
Environmental specifications
Operating
Temperature 0~50°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Accessories
Parts Power cord, rackmount kits, console cable
Reliability
MTBF (Hr) 200,000
Service interface
PON ports 16
Gigabit RJ45 4
10G SFP+ 4
40G QSFP+ 2
Supported GPON SFP module Class C+/C++/C+++/D+
Management interface
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
System capacity
DRAM (GB) 4
Flash (GB) 2
Backplane (Gbps) 880Gbps
MAC table 128K
Jumbo frame (KB) 9
IPv4 routing table 8K
IPv6 routing table 2K
Active VLAN 4,094
SVI number 1K
Forwarding mode Store-and-forward
Power supply
AC (V) 100~240
DC (V) 36~72
Power slots 2
Max. consumption (W) 70
Total output BTU (note: 1000 BTU/hr = 293W) 238.9
Cooling system
Fan number 4
Air-flow Front-back
Noise@25°C(dBA) < 55
Appearance
Chassis
Dimensions(WxDxH mm) 442x280x44
Weight (Kg)(empty) 4.5
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 5.5
Environmental specifications
Operating
Temperature 0~50°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Accessories
Parts Power cord, rackmount kits, console cable
Reliability
MTBF (Hr) 200,000

Features

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP), Ethernet - II

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Hot swap of the EPON optical module

Optical path protection of EPON (type B/C, hand-in-hand)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCP-SYN-flood, UDP-flood, ARP-flood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Ordering Information

GP3600-C Series
GP3600-04C 4-port GPON OLT with4-port fixed PON (excluding OLT SFP module) + 4-port GE RJ45 + 4-port 10G SFP+; (built-in single AC100~240V power supply, 19-inch rack-mounted installation)
GP3600-08C 8-Port GPON OLT with 4-Port Gigabit RJ45 + 8-Port 10G SFP+ (2 power slots, single hot-swap AC 100-240V power supply, 19-inch rack-mounted installation)
GP3600-16C 16-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ 2-Port 40G QSFP+ (2 power slots, single hot-swap AC 100-240V power supply, 19-inch rack-mounted installation)
