>Products>Router>Edge Router

Integrated Gateway

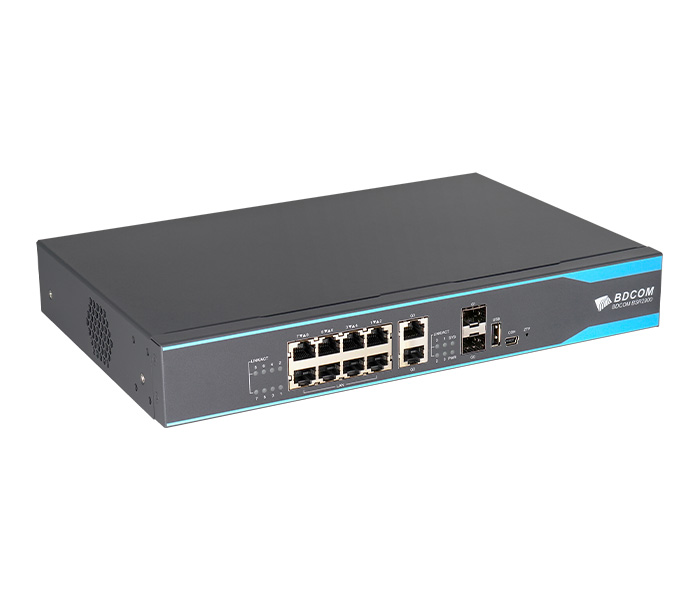

BDCOM BSR2900 Series is the next-generation multi-functional switching router developed by BDCOM. It adopts the 64-bit multi-core processor, high-speed switching engine. It is a well-adapted router.

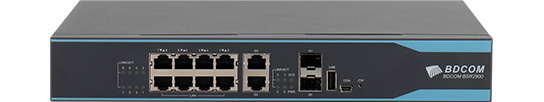

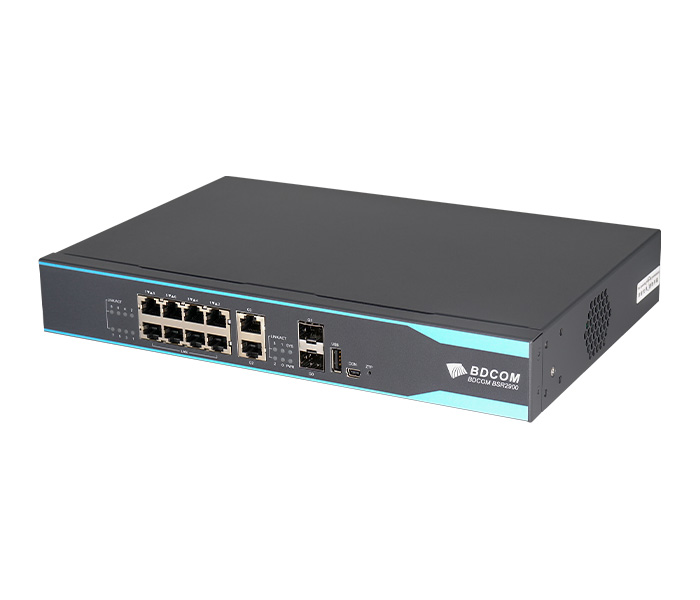

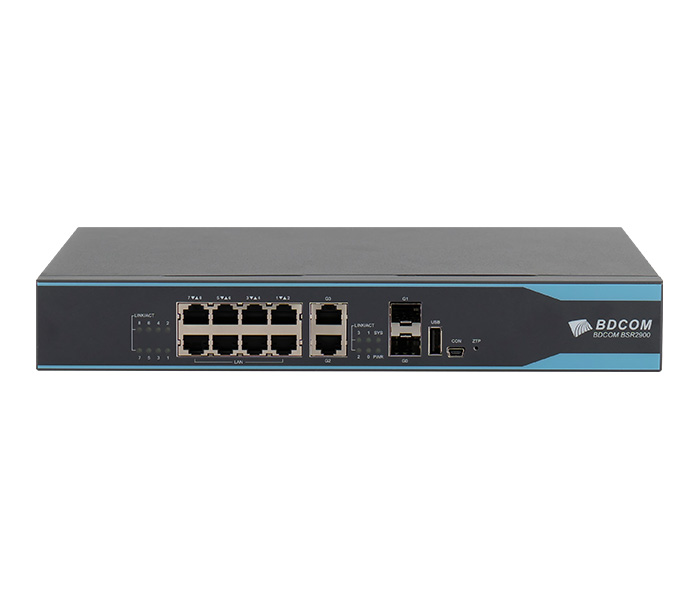

BSR2900-10B

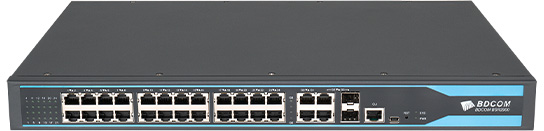

BSR2900-24G

Highlight Features

High Performance

Strong Expansibility

Energy-Saving Advantage

Varied Protocols

New Services

Secure Service Access

Traffic Management Policy

Flexible Management and Maintenance

consult

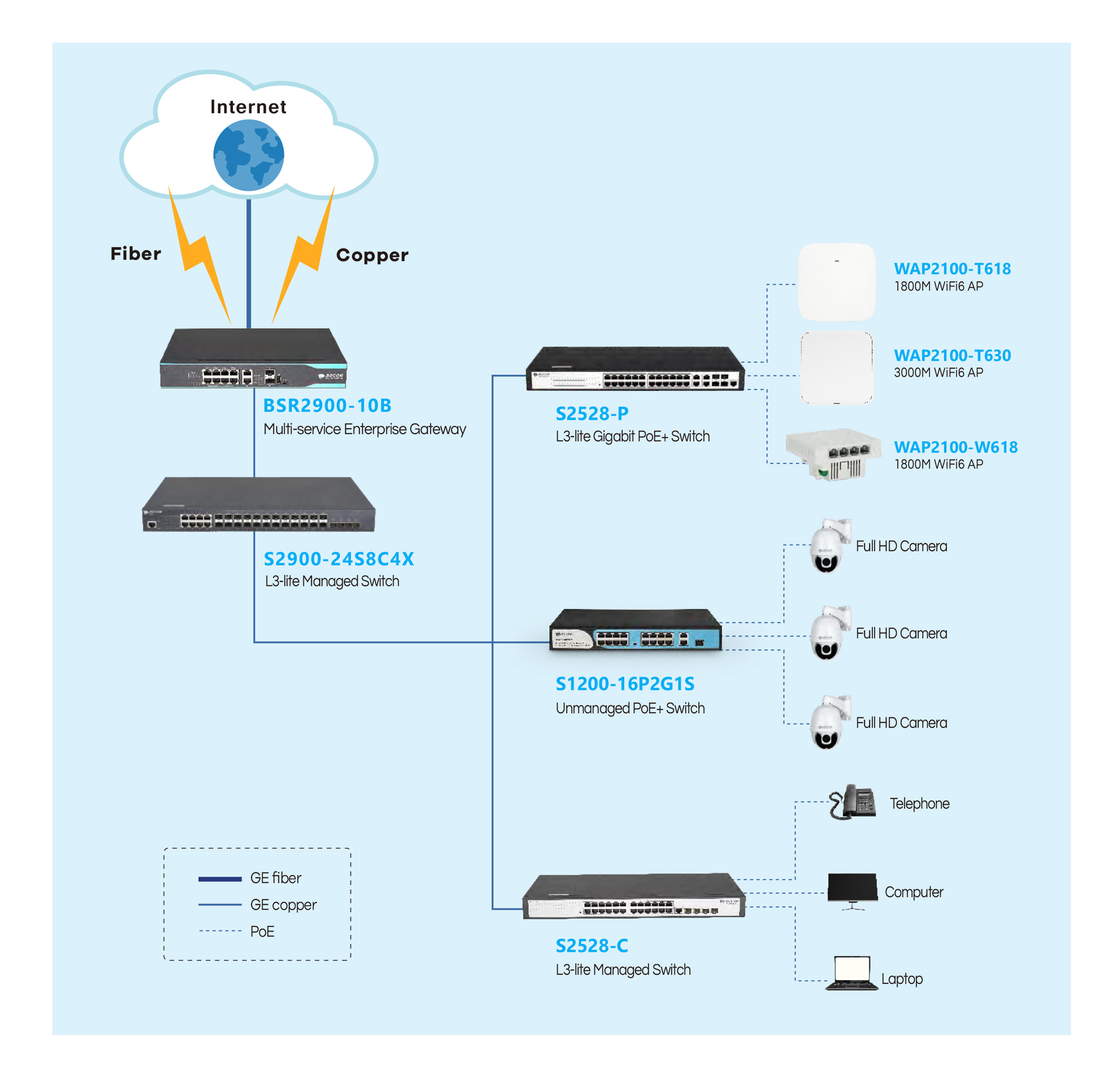

Typical Application

Technical Parameter

BSR2900-10B BSR2900-24G
Console(RJ45) 1
USB2.0 1
WAN 2-Port Gigabit SFP
2-Port Gigabit RJ45
LAN 8-Port Gigabit RJ45
RST 1
Encryption engine Built-in
Throughput 3Mpps
Flash 32MB
DRAM 1GB
Consumption
No-load ≤15W
Full-load ≤30W
Total output BTU (note: 1000 BTU/hr = 293W) 102.39
Chassis
Dimensions mm (WxDxH) 300x200x44
Weight (kg,empty) 1
Package
Dimensions mm (WxDxH) 454x96x287
Weight(kg) 2
Operating
temperature 0℃ ~ 50℃
humidity 0%~85%
(non-condensing)
Storage
temperature -40℃+85℃
humidity 5%~95%
(non-condensing)
Fan Fanless
Noise@25°C (dBA) 0
Power supply AC 100~240V 50/60Hz
Accessory Console cable, power adaptor
Console(RJ45) 1
USB2.0 1
WAN 2-Port Gigabit RJ45/SFP combo
2-Port Gigabit RJ45
LAN 24-Port Gigabit RJ45
RST 1
Encryption engine Built-in
Throughput 5Mpps
Flash 32MB
DRAM 1GB
Consumption
No-load ≤25W
Full-load ≤50W
Total output BTU (note: 1000 BTU/hr = 293W) 170.65
Chassis
Dimensions mm (WxDxH) 440x300x44
Weight (kg,empty) 1.7
Package
Dimensions mm (WxDxH) 576x448x94
Weight(kg) 4.5
Operating
temperature 0℃ ~ 50℃
humidity 0%~85%
(non-condensing)
Storage
temperature -40℃+85℃
humidity 5%~95%
(non-condensing)
Fan 2
Noise@25°C (dBA) 45
Power supply AC 100~240V 50/60Hz
Accessory Console cable, power adaptor

Features

Routing

LAN

ARP, ARP proxy, Gratuitous ARP

WAN

PPP, PPPoE (Client/Server)

Multicast

IGMP

PIM-DM, PIM-SM

Multicast

IGMP

PIM-DM, PIM-SM

IPv6

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, IPv6 (authenticate through IPv6 PhaseII )

IPv6 QoS

IPv6 transition: NAT-PT, IPv6 tunnel, 4over6

IPv6 tunnel: IPSec v6, GRE, 6to4, ISATAP

IPv6 route: IPv6 static route, RIPng, OSPFv3, BGP4+


Switching

Switching

802.1p CoS, 802.1Q VLAN

STP, RSTP

Keep alive, port mirror, broadcast/multicast storm control

Network safety

AAA

Authentication, Authorization, Accounting

Enable, local, Radius, Tacacs+

PAP, CHAP, MS-CHAP

MPLS

VPLS, MP-BGP, VRF

L2VPN, L3VPN

IP service

ICMP, TCP, UDP, IP Option

NAT, PAT, Port-MAP, Private-Service, ALG

Ping, Trace Route, Nslookup

IP ACL, IMP filter, Fast-Access

DHCP Client/Serv/Relay

DNS, DNS host, DNS Proxy, DDNS (Peanut Hull/DynDNS/CTC)

Helper-Address, UDP Helper

IP unnumber, DDR

Keep alive, PDP (compatible with CISCO)

NetFlow, IP SLA

TFTP Client/Serv, FTP Client

SNTP, job/schedule

PNP

ALIAS

Reverse telnet, VTY binding


Network Security

Firewall

ASPF state detection

SYN flood, UDP flood or ICMP flood ptotection

ARP attack protection, ARP-SCAN and DHCP-Snooping

Prevention of Ping of Death, Teardrop, Land-Based, Win Nuke, Ping Sweep, ARP attack and IP-Spoofing

VPN

IKE, IPSec, DMVPN, EZVPN

L2TP, PPTP, GRE,EoGRE

VPN stacking

Reliability

Backup function

Interface backup

Route backup

E-Backup, Keep alive Ethernet remote monitoring

VRRP, HSRP

Bandwidth based load sharing and backup

Traffic based load balancing and backup

BFD

BFD for RIP, OSPF, BGP, MPLS and VRRP

QoS

Congestion management

FIFO, PQ, CQ, WFQ, CBWFQ

Congestion avoidance

WRED/RED

Traffic shaping

GTS (Generic Traffic Shaping)

Others

GBSC, Layer7filter

Traffic classification

ACL Flow Classification

IP Precedence Flow Classification

DSCP flow classification

MAC address classification

802.1P classification

Management

SNMP, MIB, SYSLOG, RMON

·Console/Telnet/VTY/SSH/HTTP

Ordering Information

BSR2900 Series
BSR2900-10B BSR2900-10B Multi-service Enterprise Gateway (1-Port MiniUSB console, 1-Port USB2.0, 2-Port Gigabit SFP WAN,2-Port Gigabit RJ45 WAN, 8-Port Gigabit RJ45 LAN; single AC-220V power supply)
BSR2900-24G BSR2900-24G Multi-service Enterprise Gateway(1-Port RJ45 console, 1-Port USB2.0, 2-Port Gigabit RJ45/SFP Combo WAN, 2-Port Gigabit RJ45 WAN, 24-Port Gigabit RJ45 LAN, single AC-220V power supply）
