Distributed Multi-service Chassis OLT Platform

BDCOM GP8600 series OLT is a multiservice unified bearing platform, offering GPON, XG-PON, XGS-PON , 10G and 100G access. It supports various networking construction

modes like FTTH/FTTO/FTTD and POL, enabling comprehensive service integration access for both home and enterprise users.

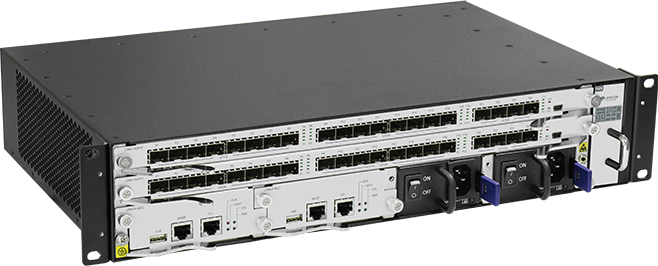

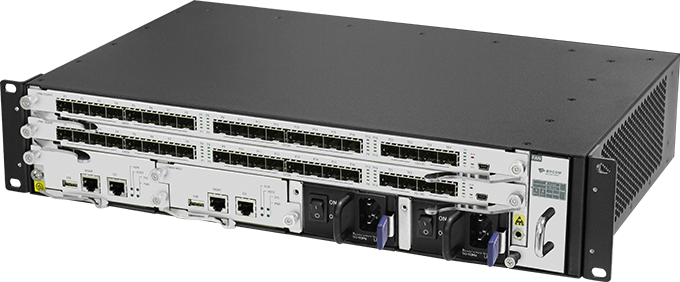

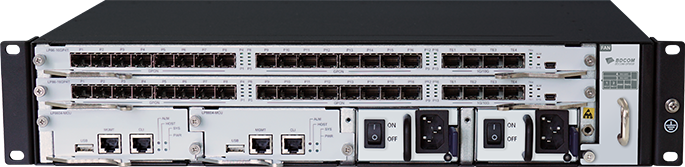

GP8600-C4
GP8600-C9

  • Supports 100Gbps uplink and downlink bandwidth

  • Efficient bandwidth usage and Ethernet services

  • Distributed Architecture

consult

Technical Parameter

GP8600-C4 GP8600-C9
System Capacity Splitter ratio up to 1:256
Backplane bandwidth: 1.8T
Port
GPON Downlink 2.5Gbps/uplink 1.25Gbps transmission rate
Supports Class B+, Class C+, Class C++ PON modules
Security: ONU authentication mechanism
XG(S)-PON Downlink 10Gbps/Uplink 2.5Gbps transmission rate (asymmetric mode)
Downlink 10Gbps/Uplink 10Gbps transmission rate (symmetric mode)
Supports N1/N2/E1 XGS-PON modules
Security: ONU authentication mechanism
Slots 2 main control slots + 2 line card slots
Max. 10GE ports 8
Max. 100GE ports 4
Max. GPON ports 32
Max. XG(S)-PON ports 32
RJ45 console 1 per MCU
Mini-USB console 1 per line card
Out-of-Band 1 per MCU
DRAM
MCU 4GB
Line card 2GB
Flash
MCU 8GB
Line card 4GB
Backplane 1.8Tbps
MAC table 128K
Buffer size 9MB
Jumbo frame
XG(S)-PON 9KB
GPON 2KB
Routing table
IPv4 16K
IPv6 8K
Active VLAN 4094
SVI 1288
Forwarding mode Store-forward
Power slots 2
Power consumption ≤300W
Power supply AC: 100~240V, 50/60Hz DC: 36~72V
System Capacity Splitter ratio up to 1:256
Backplane bandwidth: 7.6T
Port
GPON Downlink 2.5Gbps/uplink 1.25Gbps transmission rate
Supports Class B+, Class C+, Class C++ PON modules
Security: ONU authentication mechanism
XG(S)-PON Downlink 10Gbps/Uplink 2.5Gbps transmission rate (asymmetric mode)
Downlink 10Gbps/Uplink 10Gbps transmission rate (symmetric mode)
Supports N1/N2/E1 XGS-PON modules
Security: ONU authentication mechanism
Slots 2 main control slots + 7 line card slots
Max. 10GE ports 28
Max. 100GE ports 14
Max. GPON ports 112
Max. XG(S)-PON ports 112
RJ45 console 1 per MCU
Mini-USB console 1 per line card
Out-of-Band 1 per MCU
DRAM
MCU 4GB
Line card 2GB
Flash
MCU 8GB
Line card 4GB
Backplane 7.6Tbps
MAC table 128K
Buffer size 9MB
Jumbo frame
XG(S)-PON 9KB
GPON 2KB
Routing table
IPv4 16K
IPv6 8K
Active VLAN 4094
SVI 1288
Forwarding mode Store-forward
Power slots 3
Power consumption ≤850W
Power supply AC: 100~240V, 50/60Hz DC: 36~72V

Features

Standards

  • ITU-T G.984/G.987/G.9807/G.988

  • PRC Community Industry Standard “Technical requirements for access network - Gigabitcapable passive optical network (GPON)”, and China Telecom's GPON Technical Requirement CTC2.0.

  • IEEE 802.1D, Spanning Tree

  • IEEE 802.1Q, VLAN

  • IEEE 802.1w, RSTP

  • IEEE 802.3ad Physical Link Static/Dynamic Aggregation (LACP)

  • Ethernet-II

Reliability

  • Unidirectional Link Detection protocol to prevent Spanning Tree Loop

  • Hot-swappable PON transceivers

  • PON optical path protection

  • Type B/C single/dual homing protection

  • Supports rogue ONU detection

QoS

  • Backpressure flow control (half duplex)

  • IEEE 802.3x flow control (fullduplex)

  • IEEE 802.1p, CoS

  • WRR, SP, and FIFO queue scheduling algorithms

  • Uplink and downlink rate limiting functionality for each ONU

  • Supports DBA and SLA functions

Security

  • Limit the maximum number of users per port

  • Port isolation

  • Broadcast storm control

  • ACL (Access Control List) based on data flow

  • Data transmission encryption over PON ports

VLAN

  • 802.1Q VLAN, 4K active VLANs

  • QinQ and flex-QinQ

Multicast

  • IGMP v1/2/3

  • IGMP Snooping

  • MLD Snooping

Management

  • Multiple management methods including Web GUI(HTTP/HTTPS), CLI (Command Line Interface), SNMP v1/v2c/v3, Telnet, SSH

  • Software upgrades via TFTP/FTP

  • SPAN and RSPAN

  • Syslog

AAA

  • Local and remote AAA service

  • 802.1X

  • Radius and TACACS+

Power

  • Input voltage: AC100~240V, DC 36~72V

  • Multiple power inputs, AC and DC mix hot-swappable power supply

Environment

  • Operating environment: 0°C~45°C; 10%~85% non-condensing

  • Storage environment: -40°C~80°C; 5%~95% non-condensing

Dimensions (LxWxH)mm

GP8600-C4:

  • Without Rack Ears: 442x280x88.1mm

  • Rack Ears: 482.6x280x88.1mm

GP8600-C9:

  • Without Rack Ears: 442×280×263.9mm

  • Rack Ears: 482.6×280×263.9mm

Ordering Information

BDCOM GP8600 Series
GP8600-C4 GP8600-C4 OLT Chassis (one fan slot with fan module, 2 power slots without power supply, 2 main control slots, 2 line card slots)
GP8600-C9 GP8600-C9 chassis (one fan slot with fan module, 3 power slots without power
supply, 2 main control slots, 7 line card slots)
LP8604-MCU Main Control Unit, 1 CLI port, 1 USB, 1 MGMT port, only available for GP8600-C4
LP8609-MSU Main Control Unit, 1 CLI port, 1 USB, 1 MGMT port, only available for GP8600-C9
LP86-16GP4T GPON Line Card, supports 16 GPON ports (SFP ports), 4 10GE SFP+ ports (excluding optical modules)
LP86-16XGS2C XG(S)-PON Line Card, supports 16 XG(S)-PON ports (compatible with GPON; can be
converted to GPON ports through GPON modules), 2 100G QSFP28 port (optical modules
not included)
PWR-450-AC AC Power Supply (input voltage AC 100~240V, maximum power 450W), only
available for GP8600-C4
PWR-450-DC DC Power Supply (input voltage DC 36~72V, maximum power 450W), only
available for GP8600-C4
PWR-1300-AC AC Power Supply (input voltage AC 100~240V, maximum power 1300W), only
available for GP8600-C9
PWR-1300-DC DC Power Supply (input voltage DC 36~72V, maximum power 1300W), only
available for GP8600-C9
OLT-GSFP-B+ GPON Module (Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-GSFP-C+ GPON Module (Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-GSFP-C++ GPON Module (Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength
1490nm, RX wavelength 1310nm, SC/UPC interface)
OLT-XGS-N1 XGS-PON Module, N1 standard, downlink 10G, uplink 10G/2.5G, TX wavelength
1577nm, RX wavelength 1270nm, SC/UPC interface)
OLT-XGS-N2 XGS-PON Module, N2 standard, downlink 10G, uplink 10G/2.5G, TX wavelength
1577nm, RX wavelength 1270nm, SC/UPC interface)
