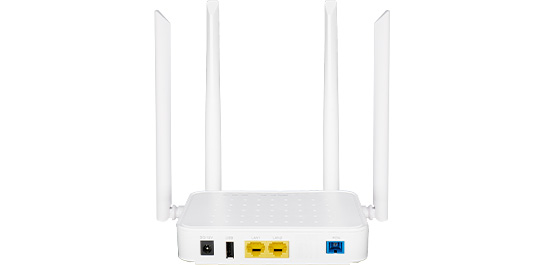

xPON Multi-service Broadband Access Home Gateway Unit(HGU)

BDCOM GP1705-2G is a smart HGU with integrated wireless, VoIP and CATV function.

BDCOM GP1705-2G is oriented for the integrated multi-service network in telecom operator network.

Highlight Features

GPON and EPON autoadaptive

Efficient bandwidth usage and Ethernet services

The Splitting ratio ups to  1:128

Dual band WiFi xPON Home Gateway Unit (HGU)

GP1705 Series is a smart Home Gateway Unit (HGU) with integrated wireless, VoIP, and CATV functions, designed
for the integrated multi-service network in telecom operator networks.

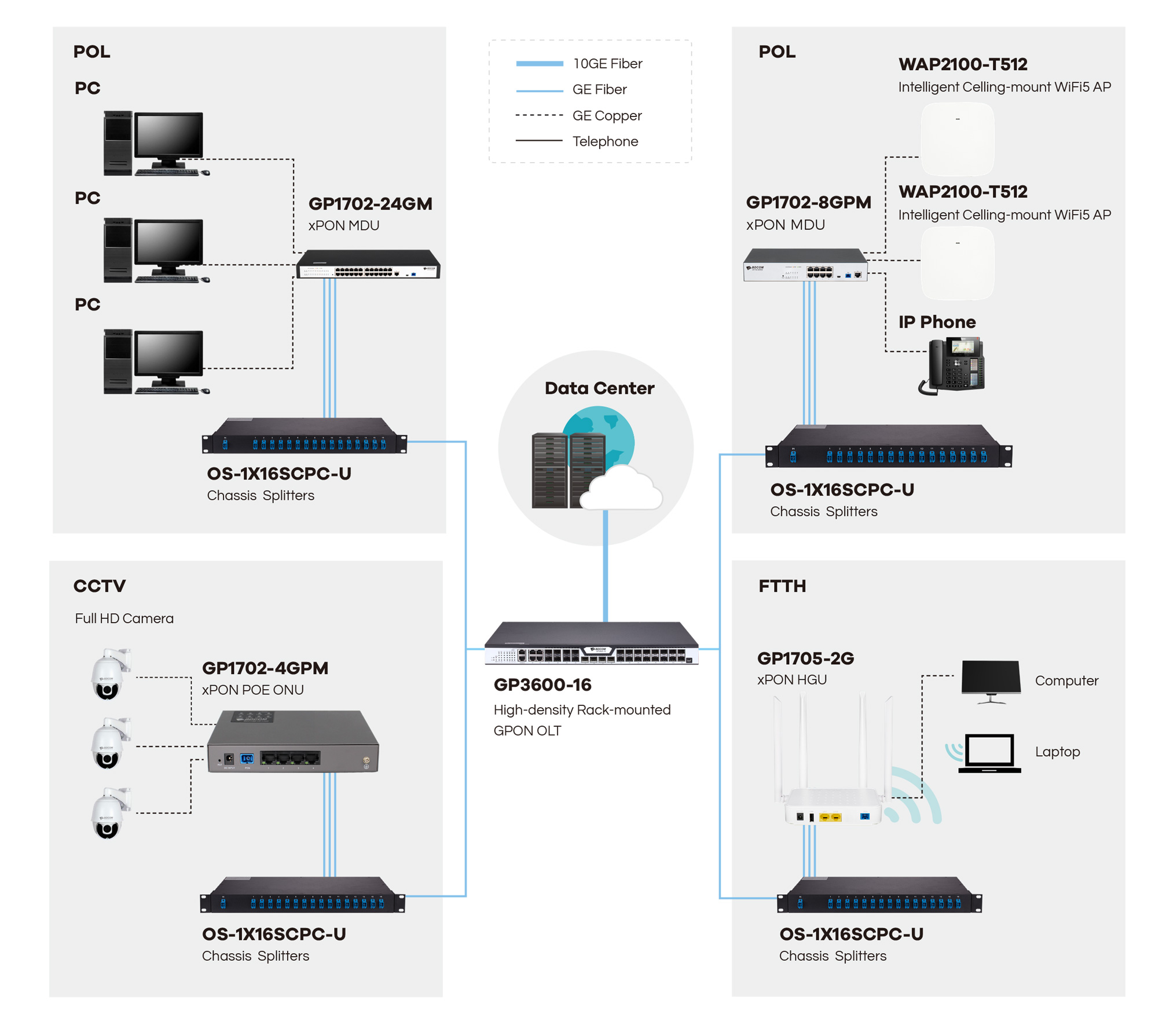

Typical Application

Technical Parameter

PON ports 1 SC/UPC
UNI ports 2 GE TX
WIFI 1200Mbps
Service ports 1 POTS
USB 1
Optical power
TX power 0.5~5dBm
RX sensitive <-28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1.5A
Max. consumption (W) 15
Chassis
Dimensions (WxDxH mm) 140 x 105 x 30
Weight(Kg)(empty) 0.3
Operating
Temperature -0℃-45℃
Humidity 10%~85%(non-condensing )
Storage
Temperature -40℃-85℃
Humidity 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1 SC/APC
UNI ports 2 GE TX
WIFI 1200Mbps
Service ports 1 RF
USB /
Optical power
TX power 0.5~5dBm
RX sensitive <-28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1.5A
Max. consumption (W) 15
Chassis
Dimensions (WxDxH mm) 140 x 105 x 30
Weight(Kg)(empty) 0.3
Operating
Temperature -0℃-45℃
Humidity 10%~85%
(non-condensing )
Storage
Temperature -40℃-85℃
Humidity 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1-Port SC/UPC
2-Port Gigabit RJ45
UNI ports 2 GE TX
WIFI 1200Mbps
USB 1
Optical power
TX power 0.5~5dBm
RX sensitive <-28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1A
Max. consumption (W) 10
Chassis
Dimensions (WxDxH mm) 140 x 105 x 30
Weight (Kg) (empty) 0.3
Operating
Temperature -0℃ -45℃
Humidity 10%~85% (non-condensing )
Storage
Temperature -40℃ -85℃
Humidity 5%-95% (non-condensing )
Accessories Power adaptor

Features

Standards

ITU-T G.984/G.988

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation/Trunk/Translation mode VLAN

CTC2.0 defined VLAN

IP Service

DHCP server/client

Routing/Bridging/Hybrid mode

DNS, DDNS

PPPOE

NAT/NAPT

xPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including CLI, HTTP, SNMP, TR069 and TELNET

Software upgrade through TFTP and WEB, OMCI, etc.

Local or server syslog

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave


Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Wireless

802.11b/g/n/ac

2x2 MIMO

Multi SSID

SSID encryption

Wireless channel (configurable)

Ordering Information

GP1705 Series

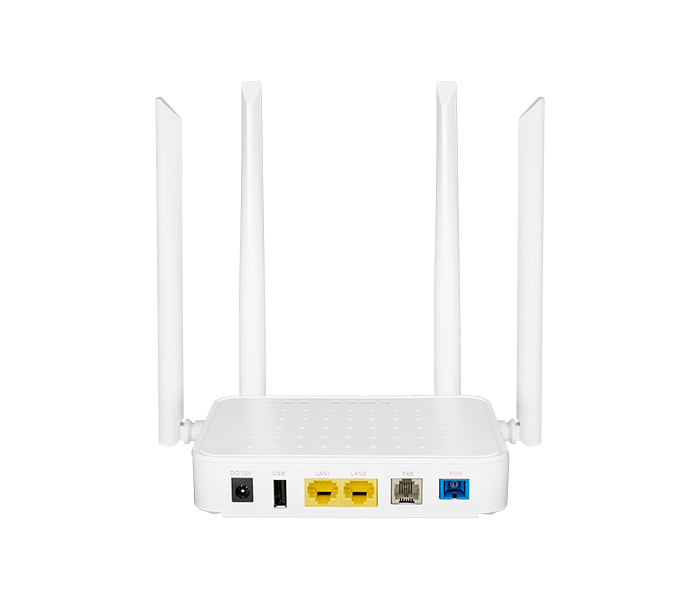

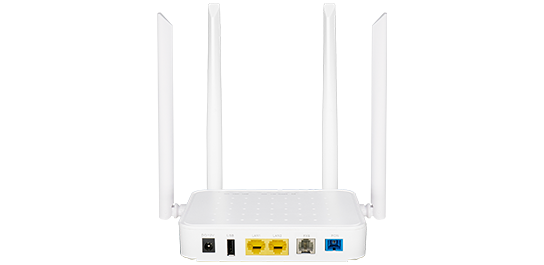

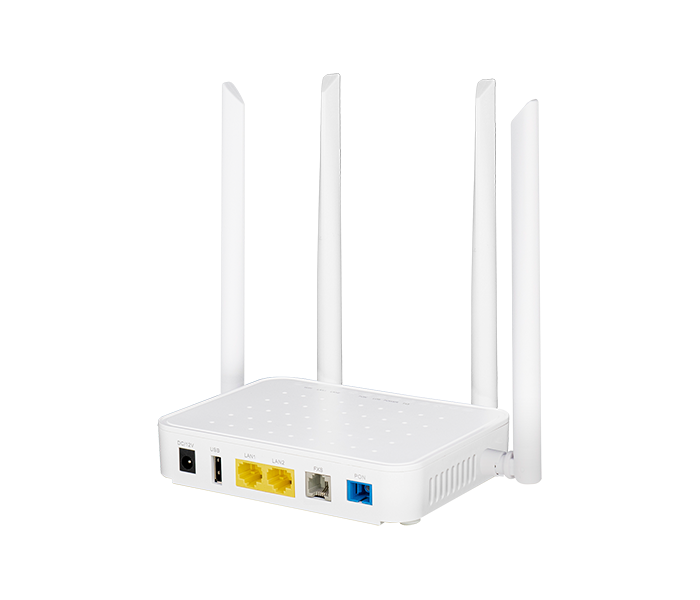

GP1705-2GV xPON Voice WiFi5 ONU, 1-Port GPON/EPON (SC/UPC), 2-Port Gigabit RJ45 + 1-Port RJ11
(POTS), dual band 1200M WiFi5, 4 external antennas, plastic casing, DC12V/1.5A power
adaptor

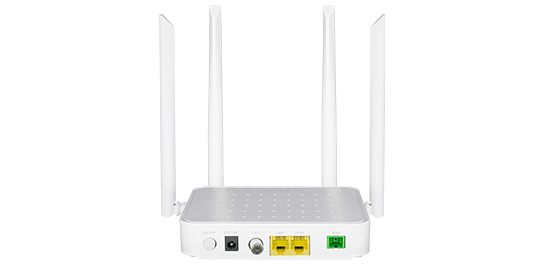

GP1705-2GC xPON CATV WiFi5 ONU, 1-Port GPON/EPON (SC/APC), 2-Port Gigabit RJ45 + 1-Port RF,dual band 1200M WiFi5, 4 external antennas, plastic casing, DC12V/1.5A power adaptor
GP1705 Series
GP1705-2G xPON WiFi ONU, 1-Port GPON/EPON (SC/UPC), 2-Port Gigabit RJ45, dual band 1200M WiFi, 4 external antennas, plastic casing, DC12V/1.5A power adaptor
