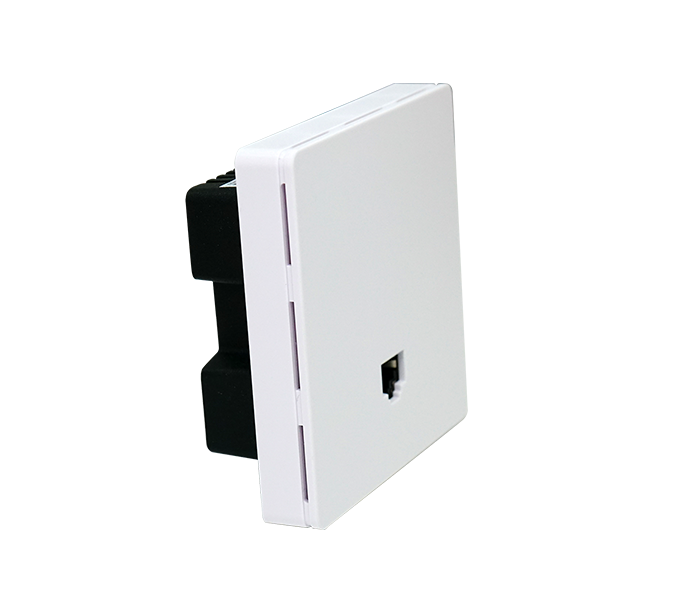

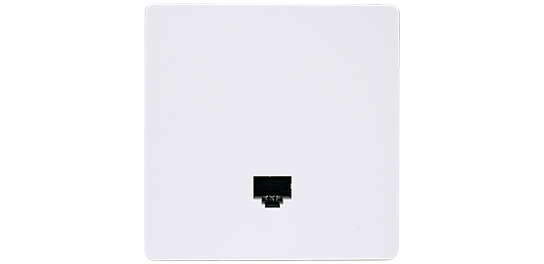

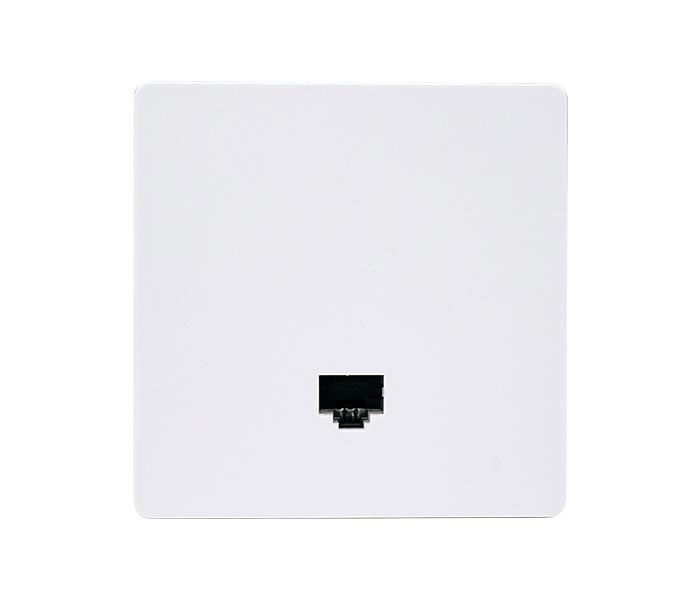

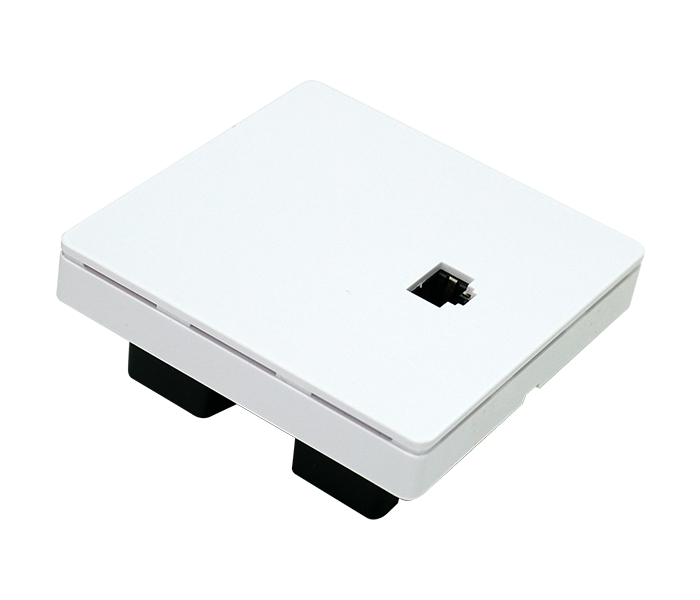

Ultra-Slim In-Wall Wireless AP

WAP2100-W Series is a high-performance WiFi6 in-wall wireless AP designed by BDCOM for space-intensive indoor scenarios such as school dormitories, hotel rooms, hospital wards, and shared apartments.

802.3af/at standard POE power input

Energy efficiency design

802.11a/b/g/n/ac/wave2/ax, up to 30 SSID

Max. 128 concurrent users

FIT and FAT AP mode

SNS, SMS and white-list login authentication

Universal network management

Cloud platform

Portal 2.0

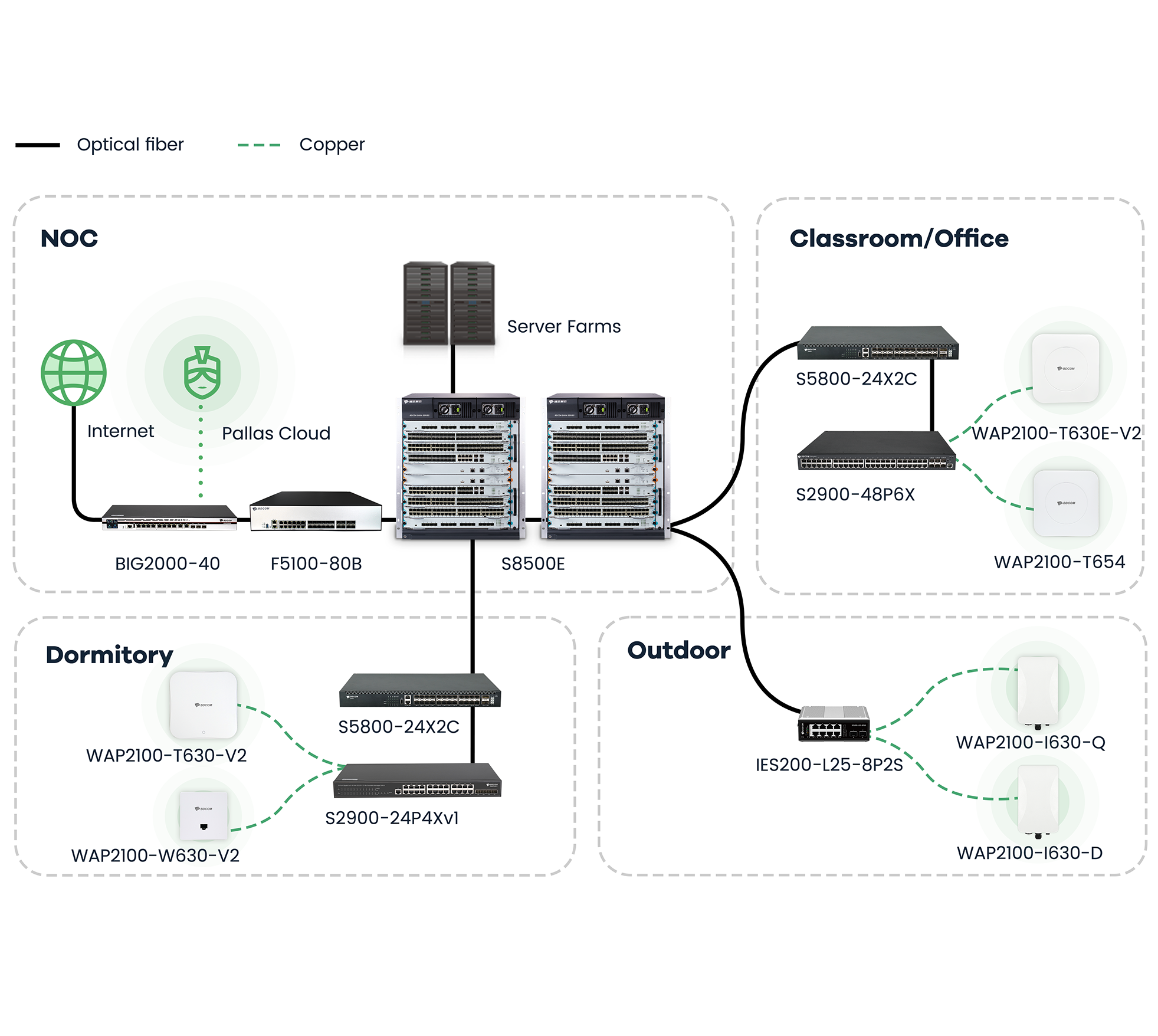

Typical Application

Technical Parameter

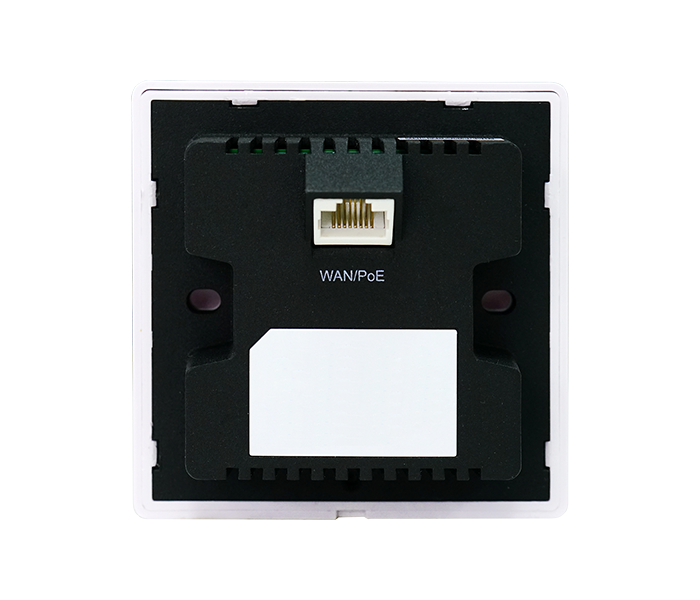

Ethernet port 1-port Gigabit WAN (PoE)
1-port Gigabit LAN
Operating frequency 2.4GHz/5GHz
Wireless protocol 802.11 a/b/g/n/ac/wave2/ax
Wireless MIMO 2x2/2x2
Air interface rate 1800Mbps
RF Power 16dBm
Coverage areas Recommended 10 meters, a single room
Recommended concurrent users 80
Other interface 1 RST switch
Power supply PoE input
Power consumption Max 13W
Deployment method 86*86mm in-wall
Dimensions (WxDxH) 86×86×43mm
Weight 250g
Operating temperature 0ºC~50ºC
Operating humidity 10%~95% (non-condensation)
Protection class IP41
Ethernet port 1-port Gigabit WAN (PoE)
1-port Gigabit LAN
Operating frequency 2.4GHz/5GHz
Wireless protocol 802.11 a/b/g/n/ac/wave2/ax
Wireless MIMO 2x2/2x2
Air interface rate 3000Mbps
RF Power 16dBm
Coverage areas Recommended 10 meters, a single room
Recommended concurrent users 80
Other interface 1 RST switch
Power supply PoE input
Power consumption Max 13W
Deployment method 86*86mm in-wall
Dimensions (WxDxH) 86×86×43mm
Weight 250g
Operating temperature 0ºC~50ºC
Operating humidity 10%~95% (non-condensation)
Protection class IP41

Features

Working mode

Supports AP Mode, Routing mode, Bridging Mode

IP functions

Supports IPv4, DHCP, NTP protocols

Supports static IP assignment, dynamic DHCP, and PPPoE for address acquisition

Wireless management

Supports CAPWAP management protocol

Allows AC discovery through Option 43, DNS, etc.

Supports Layer 2 and Layer 3 networking between AC and AP

Supports AC and AP cross-NAT networking

Supports user roaming across Layer 2 and Layer 3

Supports clock, version and configuration synchronization of AC and AP

Wireless access

Supports 802.11 protocol suite

Supports multi-SSID management,  SSID hiding

Supports unbinding of SSID and VLAN

Supports user limit and isolation based on SSID

Supports individual parameter templates for each SSID

Supports country code settings

User authentication

Supports local authentication and Cloud authentication

Supports multiple authentication methods such as local account, SMS, WeChat, and vouchers

Supports user whitelist and blacklist

Controls user access time and bandwidth

QoS

Supports 802.11e/WMM

Supports global traffic rate limit

Supports traffic rate limiting based on AP, VLAN, and user

Supports user load balancing based on wireless bands and AP

Wireless optimization

Supports one-click automatic network optimization and custom RF parameter settings

Default 8 wireless scene templates, supports user-defined templates

Supports automatic background optimization without manual intervention

Supports 5G priority access and restrictions on low-rate users

Security

Supports PSK authentication method

Supports wireless encryption with WEP, WPA, WPA2, and WPA3

Supports security filtering based on IP and MAC

Protects against DDoS, De-Auth, and similar attacks

Supports Rogue AP detection

Application added

Supports for RTLS probes

Supports docking wireless positioning system

Management and maintenance

Supports traditional device

Supports diagnostic tools such as ping, tracert, and debug

Supports centralized AC management via CAPWAP

Supports PALLAS unified cloud management

Allows control of AP indicator lights

Ordering Information

WAP2100-W Series
WAP2100-W618-V2 WAP2100-W618-V2 In-wall Intelligent Wireless AP, 1-port Gigabit WAN + 1-port Gigabit LAN, built-in MIMO antenna, supports WiFi6 protocol, 1800Mbps wireless rate, supports PoE power supply (PoE devices need to purchase.)
WAP2100-W630-V2 WAP2100-W630-V2 In-wall Intelligent Wireless AP, 1-port Gigabit WAN + 1-port Gigabit LAN, built-in MIMO antenna, supports WiFi6 protocol, 3000Mbps wireless rate, supports PoE power supply (PoE devices need to purchase.)
WAP-PSE-1000B Single-port Gigabit PSE power supply module
