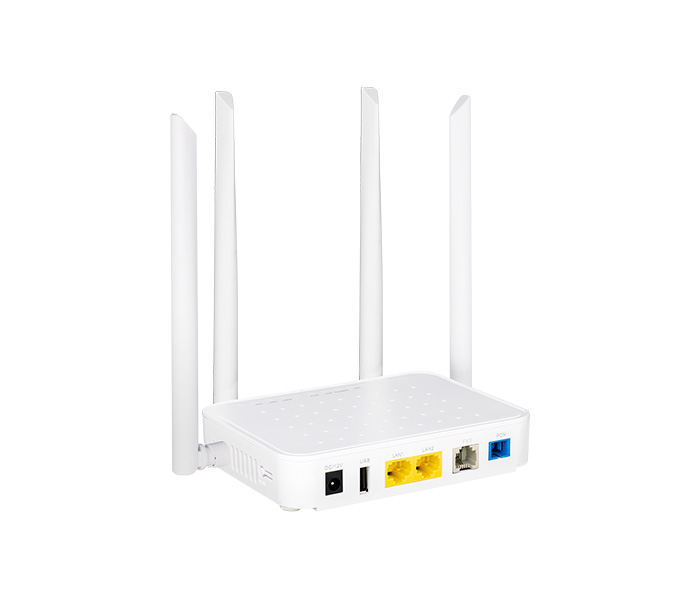

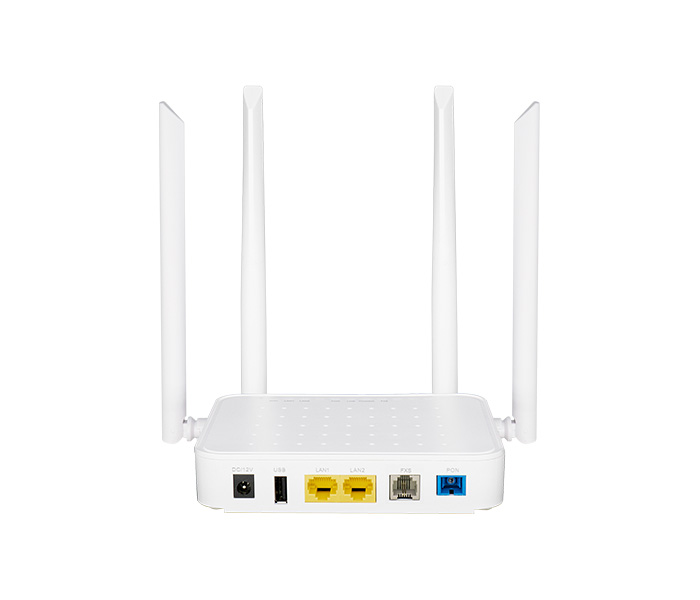

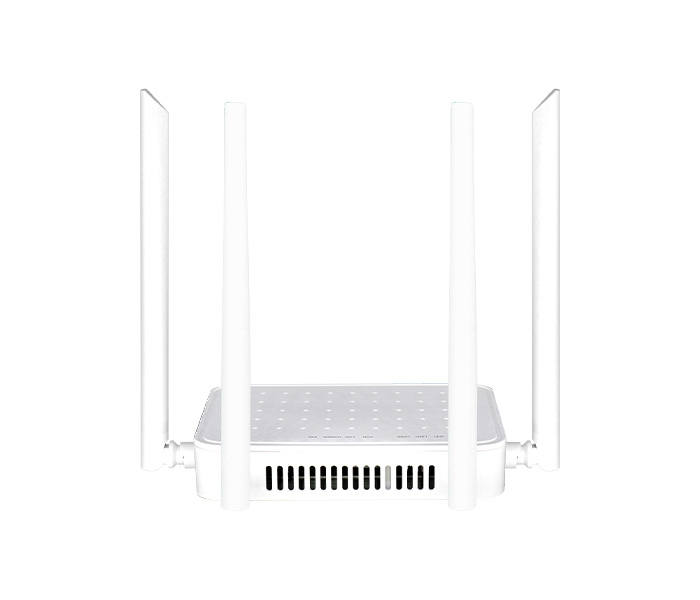

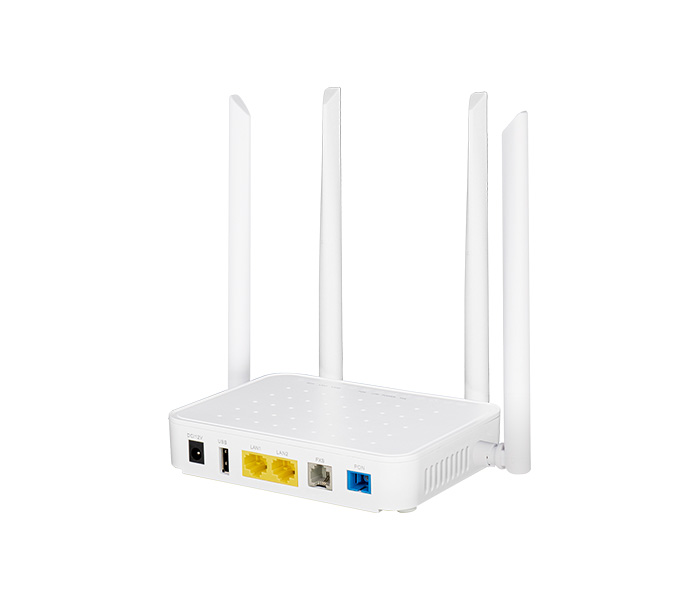

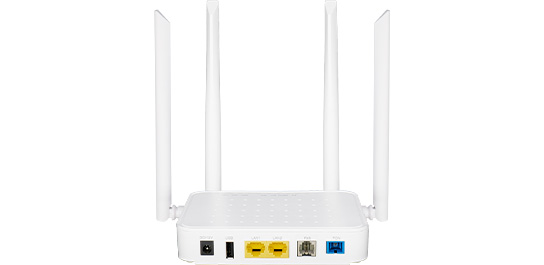

xPON Voice Home Gateway Unit(HGU)

ITU-T G.984/G.988

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

ITU-T Y.1291

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation/Trunk/Translation mode VLAN

CTC2.0 defined VLAN

DHCP server/client

Routing/Bridging/Hybrid mode

DNS, DDNS

PPPOE

NAT/NAPT

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management modes including CLI, HTTP, SNMP, TR069 and TELNET

Software upgrade through TFTP and WEB, OMCI, etc.

Local or server syslog

SIP, T.38 FAX

Three-way calling

Call waiting

Hot-line calling

MAC address number limit

MAC filter

Port protect

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Loop detection

Dying-Gasp

TX/RX optical power alarm

802.11b/g/n/ac

2x2 MIMO

Multi SSID

SSID encryption

Wireless channel (configurable)
