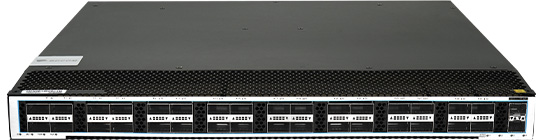

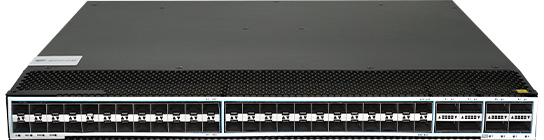

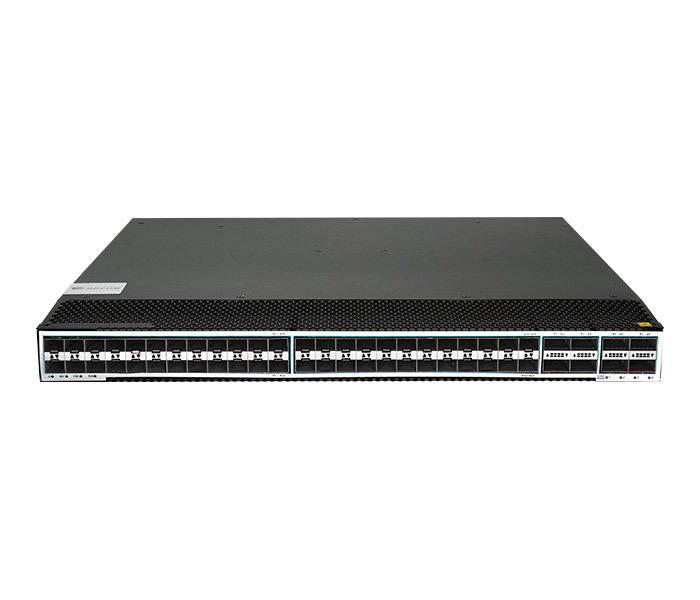

100G Data Center Switch

Operating temperature/humidity: -10°C-50°C; 10%-90% non-condensing

Storage temperature/humidity: -20°C -70°C; 5%-95% non-condensing

Manually configuring VxLAN tunnel

VxLAN distributed gateway

VxLAN dual-active link access

VxLAN interconnection across data centers

VxLAN pass-through of L2 Protocol packets

Supports modification of VxLAN outer header DSCP

BGP EVPN

Supports overlay split horizon, and separate control on different VNIs

802.1d STP, 802.1w RSTP, 802.1s MSTP

BPDU protection, root protection and ring protection

IGMP v1/v2c/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

MVR

PIM-SM, PIM-DM

Static routing, RIP v1/v2, OSPF, BGP, IS-IS, BEIGRP

Policy Based Routing(PBR)

ECMP

BFD for OSPF, BGP

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD v1/v2

MLD snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6-to-4 tunnel

Traffic classification based on fields in L2/L3/L4 protocol headers

Committed Access Rate (CAR) traffic restriction

Re-marking of 802.1P/DSCP priority

Multiple queuing algorithms such as SP, WRR or SP+WRR

Congestion avoidance mechanisms like Tail-Drop and WRED

Traffic supervision and traffic shaping

Ingress and Egress ACL, supports matching L2, L3, L4 and IP quintuples, and performs

replication, forwarding and discarding

Hash-based load balancing algorithm to ensure session integrity

L2~L4 ACL flow identification and filtering security mechanism

DDoS attack prevention, TCP-SYN/UDP Flood attack prevention

Suppression of multicast, broadcast, and unknown unicast packets

Port isolation

Port Security, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

IEEE 802.1x authentication

Radius, TACACS+URPF

Command line hierarchical protection

Power 1+1 backup

Static/LACP link aggregation

EAPS, ERPS

HSRP, VRRP

GR for OSPF and BGP

BFD for OSPF and BGP

ISSU

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

Web-GUI

SNMP v1/v2c/v3

Upload and download of FTP/TFTP/SFTP files

RMON event history

Traffic statistical analysis such as sFLOW

IEEE 802.3az
