>Products>Switch

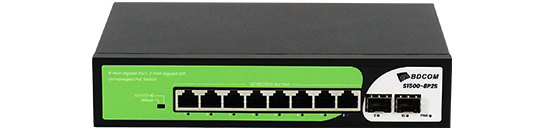

Unmanaged Full-Gigabit PoE Switch

BDCOM S1500-P Series is a multi-functional unmanaged full-gigabit PoE switch with large buffer capacity. The product is primarily applied in access layer of CCTV and WLAN.

S1500-16P2G2S

S1500-24P2S-370

S1500-16P2ES-H

S1500-24P2ES-H

Highlight Features

Non-blocking switching architecture, and line-speed forwarding of all ports

Large buffer design, ensures smooth playback of high-deﬁnition videos

Supports IEEE802.3x full-duplex ﬂow control and Backpressure half-duplex ﬂow control

Multi-functional DIP modes to meet various networking requirements

consult

Technical Parameter

S1500-4P2S S1500-4P2G S1500-4P1G1S S1500- 8P2S S1500-8P2G S1500-8P2G2S S1500-16P2S S1500-16P2G2S S1500-24P2S S1500-24P2S-370 S1500-16P2ES-H S1500-24P2ES-H

Switching capacity	12Gbps
MAC	2K
Buffer size	448Kb
PoE Port	4 Gigabit
Uplink RJ45	/
Uplink SFP	2 Gigabit
Dimensions (mm)	200x118x44
PoE budget	≤60W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	12Gbps
MAC	2K
Buffer size	448Kb
PoE Port	4 Gigabit
Uplink RJ45	2 Gigabit
Uplink SFP	/
Dimensions (mm)	200x118x44
PoE budget	≤60W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	12Gbps
MAC	2K
Buffer size	448Kb
PoE Port	4 Gigabit
Uplink RJ45	1 Gigabit
Uplink SFP	1 Gigabit
Dimensions (mm)	200x118x44
PoE budget	≤60W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Power supply	VLAN mode, Default mode, CCTV mode
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	20Gbps
MAC	2K
Buffer size	448Kb
PoE Port	8 Gigabit
Uplink RJ45	/
Uplink SFP	2 Gigabit
Dimensions (mm)	220x161x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	20Gbps
MAC	2K
Buffer size	448Kb
PoE Port	8 Gigabit
Uplink RJ45	2 Gigabit
Dimensions (mm)	220x161x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	24Gbps
MAC	2K
Buffer size	448kb
PoE Port	8 Gigabit
Uplink RJ45	2 Gigabit
Uplink SFP	2 Gigabit
Dimensions (mm)	220x161x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	36Gbps
MAC	8K
Buffer size	4Mb
PoE Port	16 Gigabit
Uplink SFP	2 Gigabit
Dimensions (mm)	440x204x44
PoE budget	≤180W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	40Gbps
MAC	8K
Buffer size	4Mb
PoE Port	16 Gigabit
Uplink RJ45	2 Gigabit
Uplink SFP	2 Gigabit
Dimensions (mm)	440x204x44
PoE budget	≤185W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	52Gbps
MAC	8K
Buffer size	4Mb
PoE Port	24 Gigabit
Uplink SFP	2 Gigabit
Dimensions (mm)	440x204x44
PoE budget	≤280W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	52Gbps
MAC	8K
Buffer size	4Mb
PoE Port	24 Gigabit
Uplink SFP	2 Gigabit
Dimensions (mm)	440x280x44
PoE budget	≤370W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	42Gbps
MAC	16K
Buffer size	8.4Mbit
Gigabit PoE port
PoE++	2(60W)
PoE+	14(30W)
Uplink SFP	2-Port 2.5G
Dimensions (mm)	440x204x44
PoE budget	≤180W
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Switching capacity	58Gbps
MAC	16K
Buffer size	8.4Mbit
Gigabit PoE port
PoE++	2(60W)
PoE+	22(30W)
Uplink SFP	2-Port 2.5G
Dimensions (mm)	440x204x44
PoE budget	≤260W
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	4KV

Features

Ordering Information

S1500-P Series

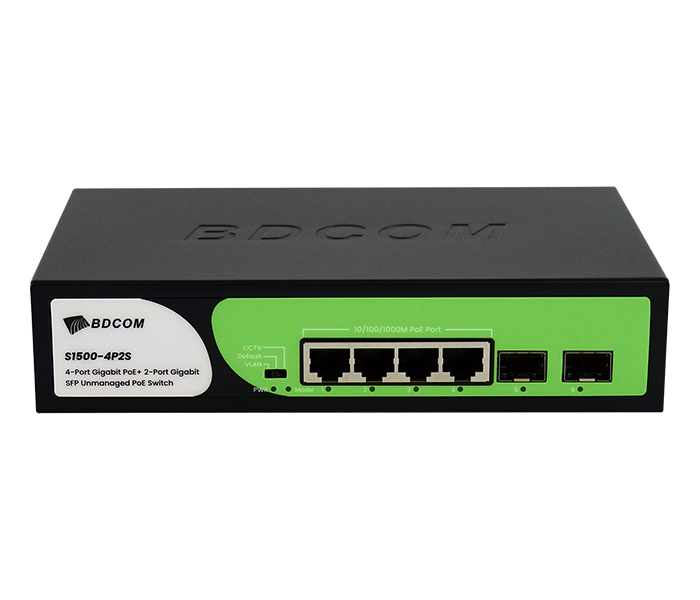

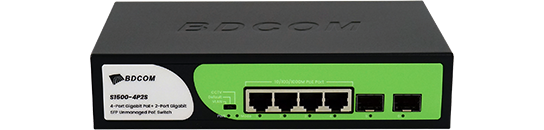

S1500-4P2S	4-Port Gigabit PoE+ 2-Port Gigabit uplink SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 60W, desktop/rack-mounted installation

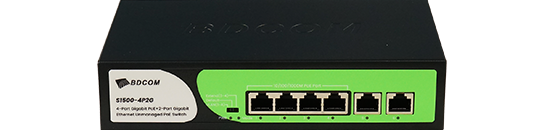

S1500-4P2G	4-Port Gigabit PoE+ 2-Port Gigabit uplink RJ45 Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 60W, desktop/rack-mounted installation

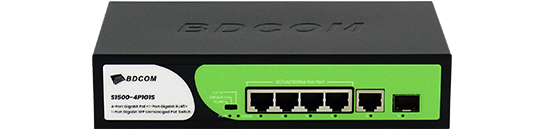

S1500-4P1G1S	4-Port Gigabit PoE+ 1-Port Gigabit uplink RJ45 + 1-Port Gigabit uplink SFP Unmanaged PoE Switch,DIP function, built-in AC220V power supply; PoE budget 60W, desktop/rack-mounted installation
S1500-8P2S	8-Port Gigabit PoE+ 2-Port Gigabit uplink SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 90W, desktop/rack-mounted installation

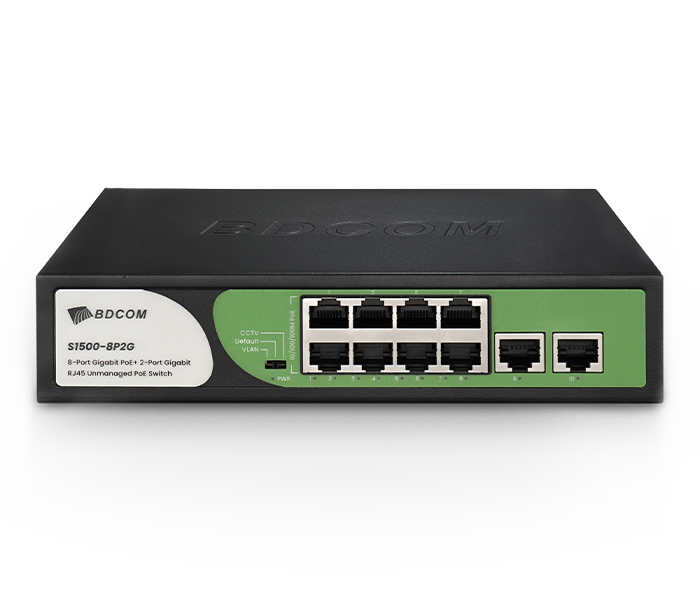

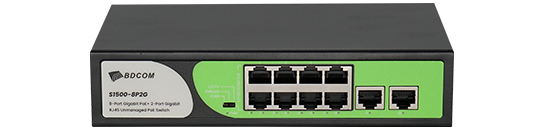

S1500-8P2G	8-Port Gigabit PoE+ 2-Port Gigabit uplink RJ45 Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 90W, desktop/rack-mounted installation

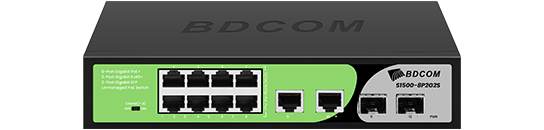

S1500-8P2G2S	8-Port Gigabit PoE+ 2-Port Gigabit uplink RJ45 + 2-Port Gigabit uplink SFP Unmanaged PoE Switch,DIP function, built-in AC220V power supply; PoE budget 90W, desktop/rack-mounted installation
S1500-16P2S	16-Port Gigabit PoE+ 2-Port Gigabit uplink SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 180W, desktop/rack-mounted installation

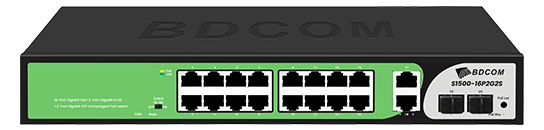

S1500-16P2G2S	16-port GE PoE+ 2-port GE RJ45 + 2-port GE SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; 185W PoE budget, desktop/rack-mounted installation
S1500-24P2S	24-Port Gigabit PoE+ 2-Port Gigabit uplink SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 280W, rack-mounted installation
S1500-24P2S-370	24-Port Gigabit PoE+ 2-Port Gigabit uplink SFP Unmanaged PoE Switch, DIP function, built-in AC220V power supply; PoE budget 370W, rack-mounted installation
S1500-16P2ES-H	2-Port Gigabit PoE++ 14-Port Gigabit PoE+ 2-Port 2.5G SFP Unmanaged PoE Switch, built-in AC-220V power supply; 180W PoE budget, desktop/rack-mounted installation
S1500-24P2ES-H	2-Port Gigabit PoE++ 22-port Gigabit PoE+ 2-port 2.5G SFP Unmanaged PoE Switch, built-in AC-220V power supply; 260W PoE budget, desktop/rack-mounted installation
