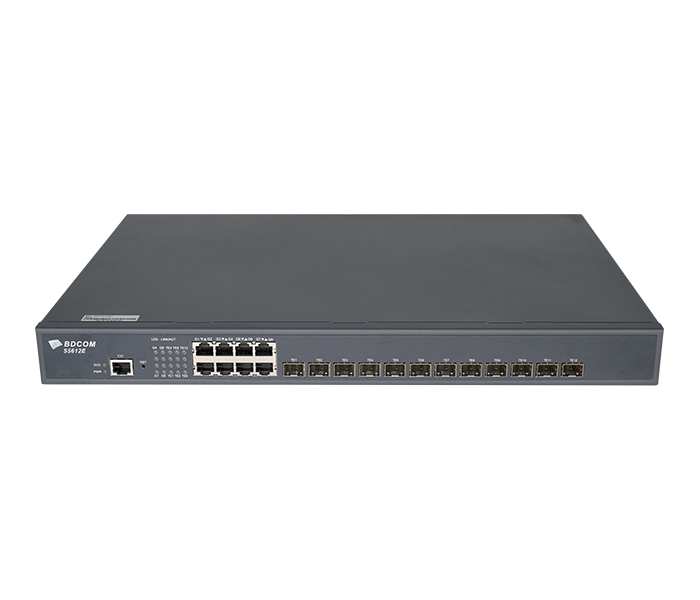

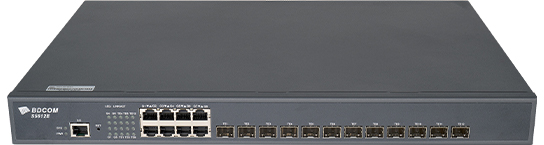

L3 Managed Full-10G Stackable Switch

4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

PIM-SM, PIM-DM, IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

Static routing, RIP v1/v2, OSPF, BGP, PBR, ECMP

BFD for OSPF, BGP

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD V1/V2, MLD snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6 to 4 tunnel

LDP protocol, Multi-VRF,

MPLS L2 VPN

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky

DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,

IEEE 802.1x, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration

Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Static/LACP link aggregation, Interface backup

BVSS virtual-stacking

EAPS and ERPS

URPF, LLDP

ISSU

VRRP

Console, Telnet, SSH v1/2, HTTP, HTTPS

SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP, SPAN, RSPAN

sFlow

Power cord, rackmount kits, console cable

Operating temperature/humidity: 0℃ -50℃ ,10%-90% non-condensing

Storage temperature/humidity: -20℃ -70℃ , 5%-95% non-condensing

CE, FCC, ROHS
