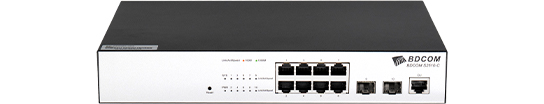

L3-lite Managed Full-Giga Access Switch

BDCOM S2500-C full-gigabit series with reliable hardware quality, delivers rich functions and first-rate performance for more simplified enterprise network

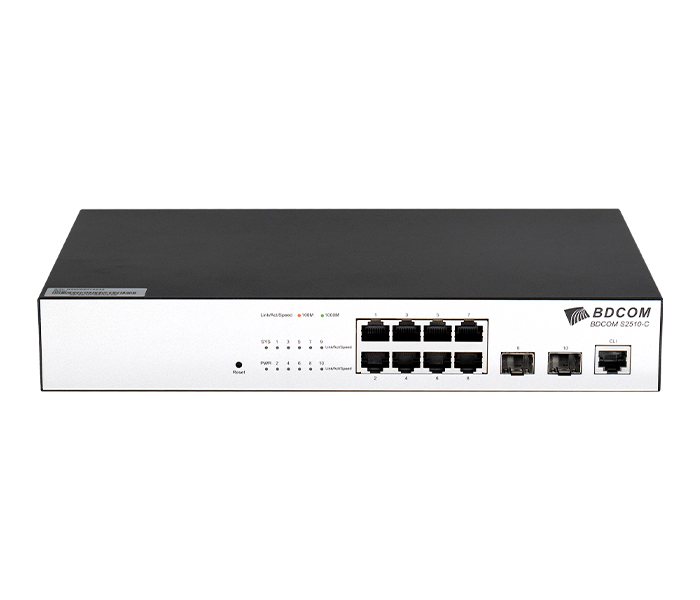

S2510-C
S2528-C

Highlight Features

Static route, RIP, OSPF

DHCP server/relay/client

Zero Touch Provisioning

Energy-Saving Design

Noiseless

consult

Typical Application

Technical Parameter

S2510-C S2528-C
Interface 8 GE TX ports,
2 100/1000M SFP ports
Console 1 RJ45 port, 1 RST button
Backplane 20 Gbps
Forwarding rate 15 Mpps
Chassis
Dimensions (WxDxH)(mm) 280x180x44
Weight(KG)(empty ) 1.55
Package
Dimensions (WxDxH)(mm) 346x289x92
Weight(KG) 2.55
Power consumption
no-load < 3W
full-load 10W
Power supply (AC: 100V-240V, 50Hz±10%) 15W
Total output BTU (1000BTU/H=293W) 51.19
Fan number no
Noise@25°C(dBA) 0
MTBF(H) >50,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Interface 24 GE TX ports,
4 100/1000M SFP ports
Console 1 RJ45 port, 1 RST button
Backplane 56 Gbps
Forwarding rate 42 Mpps
Chassis
Dimensions (WxDxH)(mm) 440x210x44
Weight(KG)(empty) 2
Package
Dimensions (WxDxH)(mm) 555x295x88
Weight(KG) 3
Power consumption
no-load < 7W
full-load 20W
Power supply (AC: 100V-240V, 50Hz±10%) 25W
Total output BTU (1000BTU/H=293W) 85.32
Fan number no
Noise@25°C(dBA) 0
MTBF(H) >50,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10

Features

VLAN

4K Active VLAN

QinQ & Selective QinQ

GVRP, Private VLAN

Voice VLAN

Spanning Tree

802.1D (STP)

802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/2/3

IGMP Snooping

IGMP Fast Leave

IGMP Filter

MVR

IP

Static route

RIP, OSPF

128 routing table

IP v4/v6 dual stack

DHCP Server/Client/Relay

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based

QoS,802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”,

Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky, DHCP Snooping and option 82 , DAI & IP source guard, PPPoE+,

IEEE 802 .1x , Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration Anti- attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP(Zero Touch Provisioning)

SPAN, RSPAN

Accessories

Power cord, rackmount kits, console cable, anti-slipping pad

Environment

Operating temperature/humidity: 0℃ -50℃, 10%-90% non-condensing

Storage temperature/humidity: -20℃ -70℃, 5%-95% noncondensing

Certification

CE, FCC, ROHS

Ordering Information

S2500-C Series switch
S2510-C Ethernet switch with 8 GE TX ports and 2 GE SFP ports (1 console port, 8 GE TX ports, 2 100/1000M SFP ports, 1 standard AC220V power supply, fanless, 1U, desktop installation)
S2528-C Ethernet switch with 24 GE TX ports and 4 GE SFP ports (1 console port, 24 GE TX ports, 4 100/1000M SFP ports, 1 standard AC220V power supply, fanless, 1U, 19-inch rack-mounted installation)
