L3-lite Managed Gigabit/10G PoE+ Switch

BDCOM S2900 PoE series with 24 & 48 PoE+ ports with 10G uplink built in first-rate pizza-box hardware and loaded with well-featured L3 software

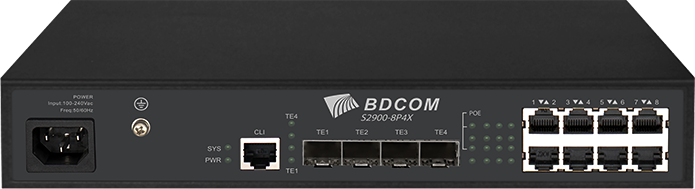

S2900-8P4X

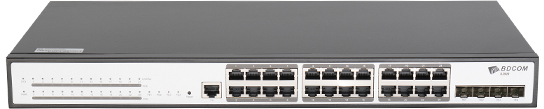

S2900-24P4Xv1
S2900-48P6X
S2900-48P6X-370
S2900-48P6X-760
S2900-24P4X

Highlight Features

Innovative Virtual Cluster Switching Technique

Industrial Ethernet Ring with Zero Delay and Zero Packet Loss

Telecom-Level Ethernet Switch

consult

Typical Application

Technical Parameter

S2900-8P4X S2900-24P4Xv1 S2900-48P6X S2900-48P6X-370 S2900-48P6X-760 S2900-24P4X
Gigabit PoE+ 8
10G/GE SFP+ 4
Console(RJ45) 1
Backplane(Gbps) 128
Forwarding rate (Mpps with 64 bytes) 72
Chassis
Dimensions (WxDxH)(mm) 280x180x44
Weight (KG)(empty) 1.6
Package
Dimensions (WxDxH)(mm) 350x268x94
Weight(KG) 2.6
Power consumption
no-load < 25W
full-load <35W
(without PoE)
Power supply AC: 100V-240V DC: 36-72V 160W AC
PoE budget 125W
Total output BTU (1000BTU/H=293W) 546.08
Fan number 0
Noise@25°C（dBA) 0
MTBF(H) >200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 256
MAC 16K
Buffer size(MB) 1.5
Interface vlan 64
Routing table 512
Jumbo frame 9K
Gigabit PoE+ 24
10G/GE SFP+ 4
Console(RJ45) 1
Backplane(Gbps) 128
Forwarding rate (Mpps with 64 bytes) 96
Chassis
Dimensions (WxDxH)(mm) 441.1×207.5×44
Weight (KG)(empty) 3
Package
Dimensions (WxDxH)(mm) 555×295×88
Weight(KG) 4.1
Power consumption
no-load < 25W
full-load <35W
(without PoE)
Power supply
AC: 100V-240V DC: 36-72V 410W AC
PoE budget 370W
Total output BTU (1000BTU/H=293W) 1392.49
Fan number 2
Noise@25°C（dBA) 37.5
MTBF(H) >200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 256
MAC 16K
Buffer size(MB) 1.5
Interface vlan 64
Routing table 512
Jumbo frame 9K
Interface 48 GE TX
6 10GE/GE SFP+
Console(RJ45) 1
Backplane(Gbps) 216
Forwarding rate (Mpps with 64 bytes) 162
Chassis
Dimensions (WxDxH)(mm) 440×300×44
Weight(KG)(empty) 5.2
Package
Dimensions (WxDxH)(mm) 576x448x94
Weight(KG) 6.1
Power consumption
no-load < 25W
full-load <48W(without POE)
Power supply (AC: 100V-240V, DC: 36V-72V) 450W AC and 800W DC
POE power budget 370W AC or 740W DC
Total output BTU (1000BTU/H=293W) 1535.84@AC,
2730.38@DC
Fan number 2
Noise@25°C(dBA) 45
MTBF(H) > 200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 512
MAC 16K
Buffer size(MB) 1.5
Interface vlan 64
Routing table 512
Jumbo frame 9K
Gigabit PoE+ 48
10G/GE SFP+ 6
Console(RJ45) 1
Backplane(Gbps) 216
Forwarding rate (Mpps with 64 bytes) 162
Chassis
Dimensions (WxDxH)(mm) 440x280x44
Weight (KG)(empty) 5.2
Package
Dimensions (WxDxH)(mm) 576x448x94
Weight(KG) 6.1
Power consumption
no-load < 25W
full-load < 48W
(without PoE)
Power supply
AC: 100V-240V DC: 36-72V 450W AC
PoE budget 370W
Total output BTU (1000BTU/H=293W) 1535.84
Fan number 2
Noise@25°C（dBA) 45
MTBF(H) >200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 512
MAC 32K
Buffer size(MB) 2
Interface vlan 64
Routing table 512
Jumbo frame 9K
Gigabit PoE+ 48
10G/GE SFP+ 6
Console(RJ45) 1
Backplane(Gbps) 216
Forwarding rate (Mpps with 64 bytes) 162
Chassis
Dimensions (WxDxH)(mm) 440x280x44
Weight (KG)(empty) 5.2
Package
Dimensions (WxDxH)(mm) 576x448x94
Weight(KG) 6.1
Power consumption
no-load < 25W
full-load < 48W
(without PoE)
Power supply
AC: 100V-240V DC: 36-72V 810W AC
PoE budget 760W
Total output BTU (1000BTU/H=293W) 2764.51
Fan number 2
Noise@25°C（dBA) 45
MTBF(H) >200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 512
MAC 32K
Buffer size(MB) 2
Interface vlan 64
Routing table 512
Jumbo frame 9K
Interface 24 GE POE
4 10GE/GE SFP+
Console(RJ45) 1
Backplane(Gbps) 128
Forwarding rate (Mpps with 64 bytes) 96
Chassis
Dimensions (WxDxH)(mm) 440x210x44
Weight(KG)(empty) 3
Package
Dimensions (WxDxH)(mm) 555x295x88
Weight(KG) 4.1
Power consumption
no-load < 25W
full-load <408W
Power supply (AC: 100V-240V, DC: 36V-72V) 410W
POE power budget 370W
Total output BTU (1000BTU/H=293W) 1392.49
Fan number 2
Noise@25°C(dBA) 37.5
MTBF(H) > 200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 256
MAC 16K
Buffer size(MB) 1.5
Interface vlan 64
Routing table 512
Jumbo frame 9K

Features

VLAN

4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3, IGMP Snooping,

IGMP Fast Leave, MVR, IGMP filter

IP

Static route, RIP, OSPF

IPv4/v6 dual stack

IPv6

ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD V1, MLD snooping

IPv6 Static Routing, RIPng, OSPFv3

Manual tunnel, ISATAP tunnel,6 to 4 tunnel

Certification

CE, FCC, ROHS

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky DAI & IP source guard, PPPoE+,

IEEE 802.1x, AAA, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

DHCP

DHCP server/relay/client

DHCP snooping/option82

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU uninterrupted system u pgrade

BVSS, ups to 16-units per stack

VRRP

UDLD

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP

SPAN, RSPAN

Dying gasp*

Environment

Operating temperature/humidity: 0 -50℃ ,10%-90% non-condensing

Storage temperature/humidity: -20 -70℃ , 5%-95% non-condensing

Accessories

Power cord, rackmount kits, console cable

Ordering Information

S2900 L3-lite series switch
S2900-8P4X 8-Port Gigabit PoE + 4-Port 10GE SFP+ L3-lite Managed Switch (AC-220V power supply;
125W PoE budget; fanless, 1U, standard 19-inch rack-mounted installation)
S2900-24P4Xv1 24-Port Gigabit PoE+ 4-Port 10G SFP+ L3-lite Stackable Managed Switch (single AC-220V
power supply, 370W PoE budget; with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-48P6X Ethernet Layer-3 lite POE switch with 48 GE ports and 6 10GE/GE ports (1 console port, 48 GE POE TX ports, 6 10GE/GE SFP+ ports; standard AC220V power supply, 370W AC POE power, 740W DC POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
S2900-48P6X-370 48-Port Gigabit PoE+ 6-Port 10G SFP+ L3-lite Stackable Managed Switch (AC-220V power
supply, 370W AC PoE budget, with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-48P6X-760 48-Port Gigabit PoE+ 6-Port 10G SFP+ L3-lite Stackable Managed Switch (AC-220V power
supply, 760W AC PoE budget, with cooling fan; 1U; standard 19-inch rack-mounted
installation)
S2900-24P4X Ethernet Layer-3 lite POE switch with 24 GE ports and 4 10GE ports (1 console port, 24 GE POE TX ports, 4 10GE/GE SFP ports; standard AC220V power supply, 370W POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
10GE optical modules
SFP+TX 10GE SFP+-to-RJ45 module
SFP+SX 10GE SFP+ multi-mode (300m, 850nm, LC)
SFP+LX-10 10GE SFP+ single-mode (10Km, 1310nm, LC, DDM)
SFP+LX-20 10GE SFP+ single-mode (20Km, 1310nm, LC, DDM)
SFP+LX-40 10GE SFP+ single-mode (40Km, 1310nm, LC, DDM)
SFP+LX-80 10GE SFP+ single-mode (80Km, 1550nm, LC, DDM)
SFP+LX-SM-1270-10 10GE SFP+ single-mode, single-fiber (10Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-10 10GE SFP+ single-mode, single-fiber (10Km,TX1330/RX1270, LC, DDM)
SFP+LX-SM-1270-20 10GE SFP+ single-mode, single-fiber (20Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-20 10GE SFP+ single-mode, single-fiber (20Km,TX1330/RX1270, LC, DDM)
SFP+LX-SM-1270-40 10GE SFP+ single-mode, single-fiber (40Km, TX1270/RX1330, LC, DDM)
SFP+LX-SM-1330-40 10GE SFP+ single-mode, single-fiber (40Km,TX1330/RX1270, LC, DDM)
GE Optical Modules
GSFP-TX-B 10GE SFP+-to-RJ45 module
GSFP-SX-D GE SFP multi-mode (500m, 850nm, LC, DDM)
GSFP-LX-10-D GE SFP single-mode (10Km, 1310nm, LC, DDM)
GSFP-LX-20-D GE SFP single-mode (40Km, 1310nm, LC, DDM)
GSFP-LX-40-D GE SFP single-mode (40Km, 1310nm, LC, DDM)
GSFP-ZX-80-D GE SFP single-mode (80Km, 1550nm, LC, DDM)
GSFP-ZX-120-D GE SFP single-mode (120Km, 1550nm, LC, DDM)
GSFP-LX-SM1310-10-BIDI GE SFP single-mode, single fiber (10Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-10-BIDI GE SFP single-mode, single fiber (10Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310-20-BIDI GE SFP single-mode, single fiber (20Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-20-BIDI GE SFP single-mode, single fiber (20Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1310-40-BIDI GE SFP single-mode, single fiber (40Km, TX1310/RX1550, LC, DDM)
GSFP-LX-SM1550-40-BIDI GE SFP single-mode, single fiber (40Km, TX1550/RX1310, LC, DDM)
GSFP-LX-SM1490-80-BIDI GE SFP single-mode, single fiber (80Km, TX1490/RX1550, LC, DDM)
GSFP-LX-SM1550-80-BIDI GE SFP single-mode, single fiber (80Km, TX1550/RX1490, LC, DDM)
GSFP-LX-SM1490-120 GE SFP single-mode, single fiber (120Km, TX1490/RX1550, LC, DDM)
GSFP-LX-SM1550-120 GE SFP single-mode, single fiber (120Km, TX1550/RX1490, LC, DDM)
