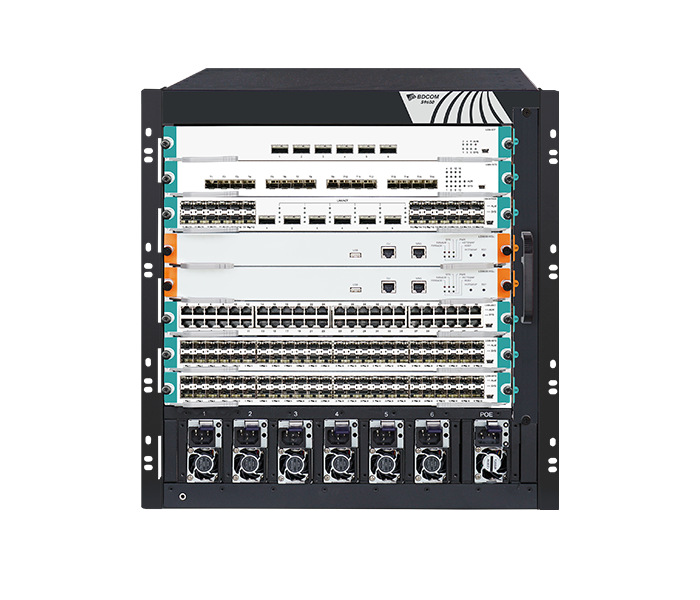

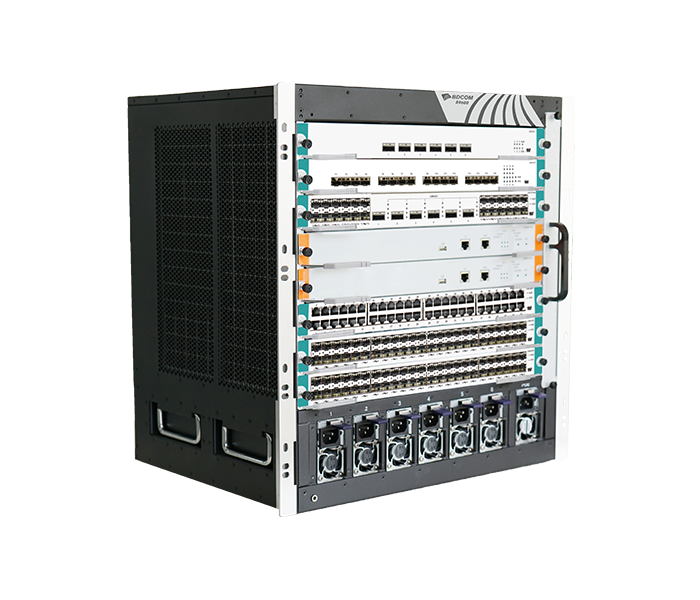

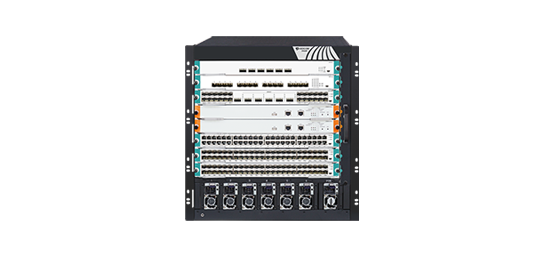

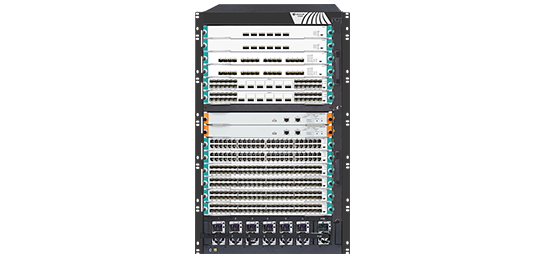

High-Performance Core Switch

Static configuration and dynamically learning of MAC address

Check and clear MAC address

Configuring of MAC address aging time

Limit on MAC address learning number

MAC address filtering function

Black-hole MAC items

IEEE 802.1AE MacSec Security Control

4K VLAN entries

GVRP

1:1 and N:1 VLAN Mapping

Basic QinQ and selective QinQ

Private VLAN

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

Multicast traffic cross VLAN duplication

PIM-SM and PIM-DM

Console, Telnet and SSH

SNMP v1/v2/v3

Upload and download of TFTP files

Remote Network Monitoring (RMON)

Statistics analysis of sFLOW, Netflow

Static routing, RIP v1/v2, OSPF and BGP

Policy routing

Load balance through equal-cost routing

Graceful Restart of OSPF and BGP

BFD for OSPF and BGP

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD and MLD Snooping

IPv6 static routing, RIPng, OSPFv3 and BGP4+

Manual tunnel, ISATAP tunnel and 6-to-4 tunnel

Traffic classification of each field of L2/L3/L4 protocol headers

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

Tail-Drop, WRED

Traffic supervision and traffic shaping

Ingress and Egress ACL, and matching L2, L3, L4 and IP quintuples for copying, forwarding and discarding

Hash algorithms and load balancing

Operating temperature/humidity: 0°C-40°C; 10%-90% non-condensing

Storage temperature/ humidity: -20°C-70°C; 5%-95% non-condensing

Identification and filtering of L2/L3/L4 based ACL

Defend against DOS or TCP attacks

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

IEEE 802.1x authentication

Radius and BDTacacs+ authentication

uRPF

Command line authority control based on user levels

Dual Master Control Redundancy

Power M+N backup

Master control, service card hot swap and service automatic recovery

Static/LACP link aggregation and cross service card link aggregation Ring network protection including EAPS

VRRP

Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731

GR for OSPF and BGP

BFD for OSPF and BGP

ISSU

IEEE 802.3az green Efficient Ethernet

VSS
