L3-lite Managed Ethernet Switch

BDCOM S2500 Series is a new-generation intelligent gigabit access switch designed  for carrier's IP MAN and enterprise networks.

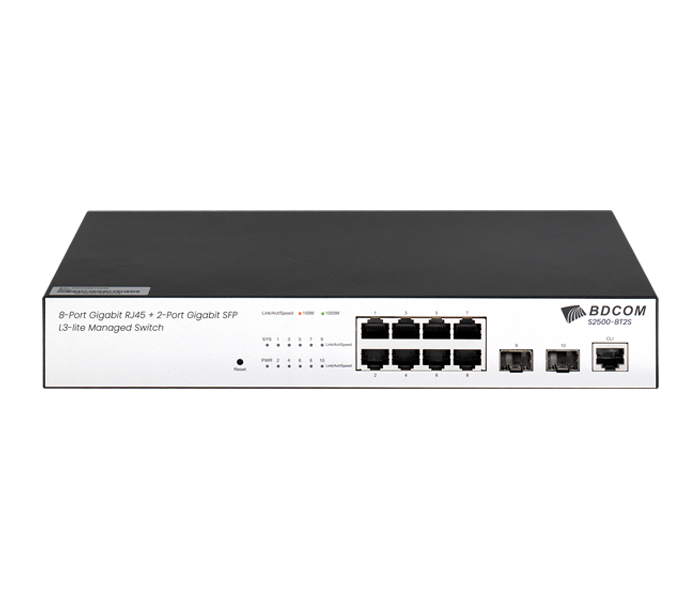

S2500-8T2S
S2500-24T4S

Supports Maximum 24 GE RJ45 Ports and 4 GE SFP Uplink Ports

Advanced Hardware Architecture and Industry-leading Port Density

Carrier-Level High Reliability Layer-3 Routing Functions

Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

consult

Topology

Technical Parameter

S2500-8T2S S2500-24T4S
Interface 8-Port Gigabit RJ45
2-Port Gigabit SFP
Console 1 RJ45 port, 1 RST button
Backplane 20 Gbps
Forwarding rate 15 Mpps
Chassis
Dimensions (WxDxH)(mm) 280x180x44
Weight(KG)(empty) 1.55
Package
Dimensions (WxDxH)(mm) 346x289x92
Weight(KG) 2.55
Power consumption
no-load <3W
full-load 10W
Power supply
AC: 100V-240V, 50Hz±10% 15W
Total output BTU (1000BTU/H=293W) 51.19
Fan number no
Noise@25°C(dBA) 0
MTBF(H) ＞200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Interface 24-Port Gigabit RJ45
4-Port Gigabit SFP
Console 1 RJ45 port, 1 RST button
Backplane 56 Gbps
Forwarding rate 42 Mpps
Chassis
Dimensions (WxDxH)(mm) 440x210x44
Weight(KG)(empty) 2
Package
Dimensions (WxDxH)(mm) 555x295x88
Weight(KG) 3
Power consumption
no-load <7W
full-load 20W
Power supply
AC: 100V-240V, 50Hz±10% 25W
Total output BTU (1000BTU/H=293W) 85.32
Fan number no
Noise@25°C(dBA) 0
MTBF(H) ＞200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10

Features

VLAN

4K Active VLAN

QinQ & Selective QinQ

GVRP, Private VLAN

Voice VLAN

Spanning Tree

802.1D (STP)

802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/2/3

IGMP Snooping

IGMP Fast Leave

IGMP Filter

MVR

IP

Static route

RIP, OSPF

128 routing table

IPv4/IPv6 dual stack

DHCP Server/Client/Relay

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based

QoS,802.1P/DSCP priority relabeling, SP, WRR, and “SP+WRR”,

Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky, DHCP Snooping and option 82 , DAI & IP source guard, PPPoE+,

IEEE 802 .1x , Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration Anti- attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast  storm-control

MD5,  SHA-256,  RSA-1024,  AES256, etc.

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU

Management

Console ,  Telnet,  SSH v1/2, HTTP, HTTPS, SNMP v1/ v2/ v3, RMON

TFTP, FTP, SFTP

NTP

ZTP(Zero Touch Provisioning)

SPAN, RSPAN

Accessories

Power cord,  rackmount kits, console cable, anti-slipping pad

Environment

Operating temperature/humidity: 0℃  -50℃,  10%-90% non-condensing

Storage temperature/humidity: - 20℃  -70℃,  5%-95% non-condensing

Certification

CE,  FCC,  ROHS

Ordering Information

S2500 Series switch
S2500-8T2S 8-Port Gigabit RJ45 + 2-Port Gigabit SFP L3-lite Managed Switch (single AC-220V power supply; fanless, 1U, desktop or rack-mounted installation)
S2500-24T4S 24-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Managed Switch (single AC-220V power supply; fanless, 1U, standard 19-inch rack-mounted installation)
