>Products>Switch

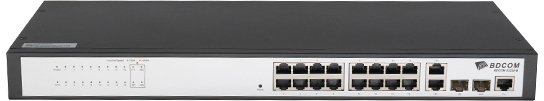

L3-lite Managed 100M/1000M Access Switch

BDCOM S2200-B series is a little out-of-date with 100M downlink ports and flexible uplink options, delivers rich software features for enterprise access network

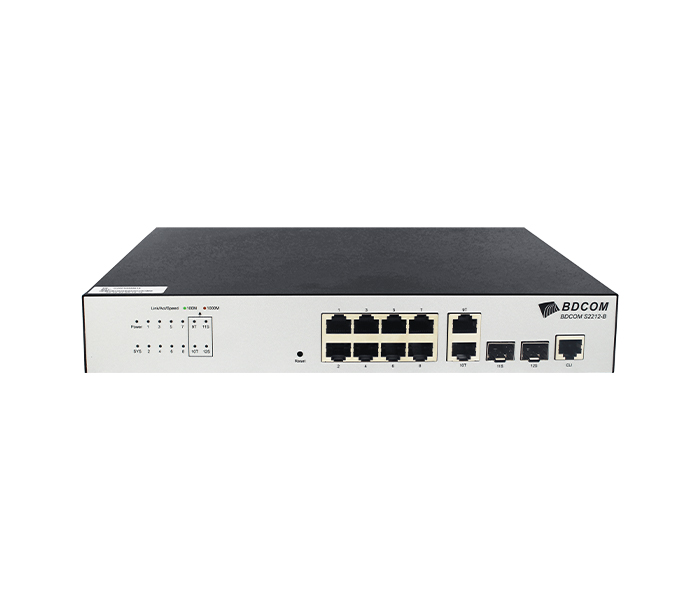

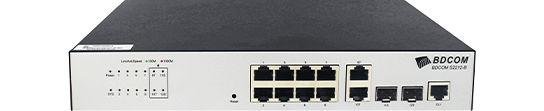

S2212-B

S2220-B

S2228-B

Highlight Features

Easy Management and Maintenance

Comprehensive Ipv6 Solutions

Carrier-Level Ethernet Access Switch

Enhanced QoS

consult

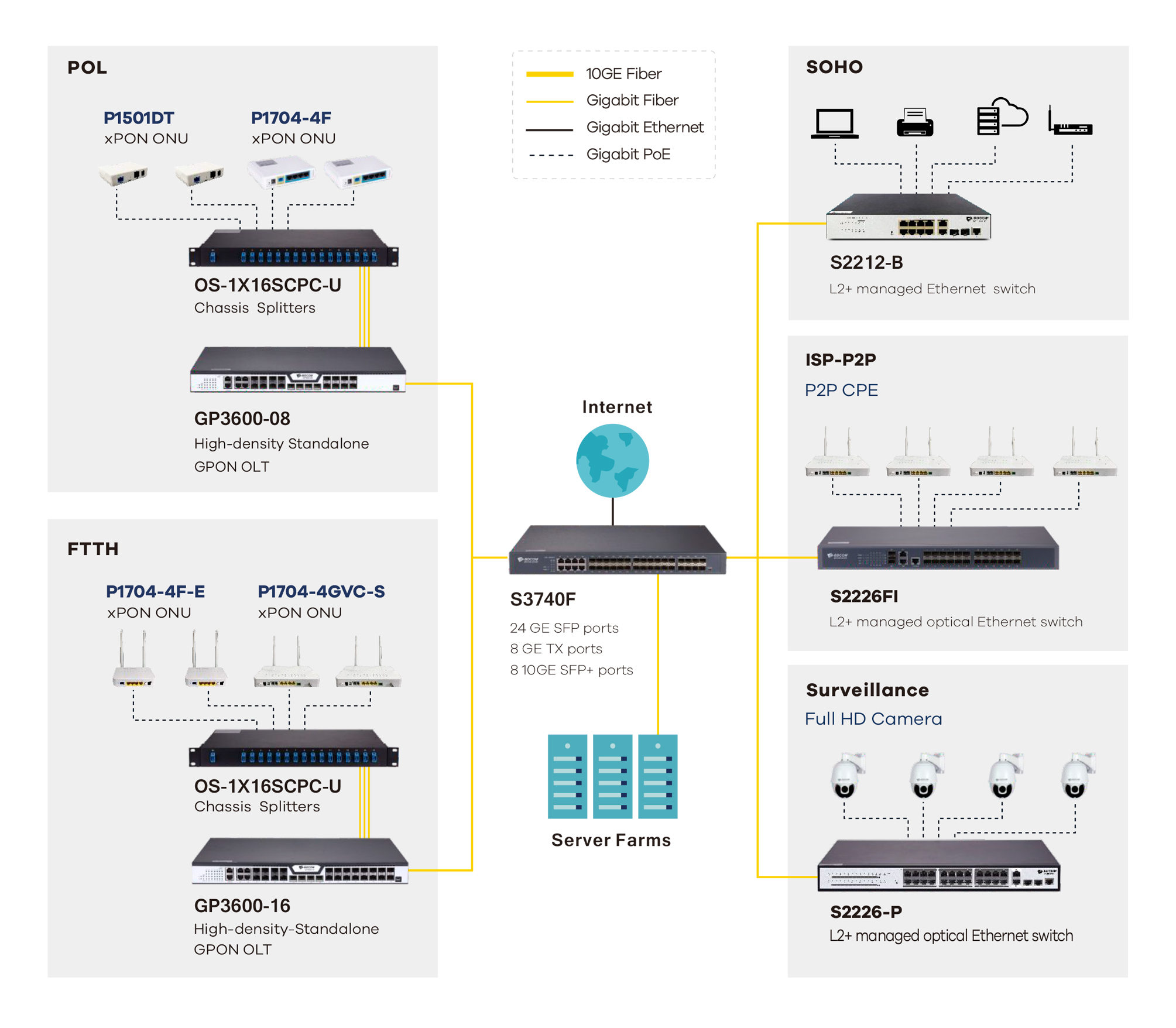

Typical Application

Technical Parameter

S2212-B S2220-B S2228-B

Interface	8 100M TX ports, 2 GE TX ports, 2 100/1000M SFP ports
Console	1 RJ45 port, 1 RST button
Backplane	9.6 Gbps
Forwarding rate	7.2Mpps
Chassis
Dimensions (WxDxH)(mm)	280x180x44
Weight(KG)(empty)	1.15
Package
Dimensions (WxDxH)(mm)	346x289x90
Weight(KG)	2.15
Power consumption
no-load	< 7W
full-load	12W
Power supply (AC: 100V-240V, 50Hz±10%)	18W
Total output BTU (1000BTU/H=293W)	40.96
Fan number	/
Noise@25°C(dBA)	0
MTBF(H)	>50,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(MB)	4.1
Jumbo frame	9K
Total SVI	10
Lightning Protection	4KV

Interface	16 100M TX ports, 2 GE TX ports, 2 100/1000M SFP ports
Console	1 RJ45 port, 1 RST button
Backplane	11.2 Gbps
Forwarding rate	8.4Mpps
Chassis
Dimensions (WxDxH)(mm)	440x210x44
Weight(KG)(empty)	1.35
Package
Dimensions (WxDxH)(mm)	555x292x80
Weight(KG)	2.35
Power consumption
no-load	< 8W
full-load	14W
Power supply (AC: 100V-240V, 50Hz±10%)	18W
Total output BTU (1000BTU/H=293W)	47.78
Fan number	/
Noise@25°C(dBA)	0
MTBF(H)	>50,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(MB)	4.1
Jumbo frame	9K
Total SVI	10
Lightning Protection	4KV

Interface	24 100M TX ports, 2 GE TX ports, 2 100/1000M SFP ports
Console	1 RJ45 port, 1 RST button
Backplane	12.8 Gbps
Forwarding rate	9.6Mpps
Chassis
Dimensions (WxDxH)(mm)	440x210x44
Weight(KG)(empty)	2.05
Package
Dimensions (WxDxH)(mm)	555x295x80
Weight(KG)	3.05
Power consumption
no-load	< 10W
full-load	16W
Power supply (AC: 100V-240V, 50Hz±10%)	18W
Total output BTU (1000BTU/H=293W)	54.61
Fan number	/
Noise@25°C(dBA)	0
MTBF(H)	>50,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(MB)	4.1
Jumbo frame	9K
Total SVI	10
Lightning Protection	4KV

Features

VLAN

4K Active VLAN

QinQ & Selective QinQ

GVRP, Private VLAN

Voice VLAN

Spanning Tree

802.1D (STP)

802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave,

MVR

IGMP filter

IP

Static route

RIP, OSPF

512 routing table

IPv4/v6 dual stack

DHCP Server/Client/Relay

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based

QoS,802.1P/DSCP priority relabeling, SP, WRR, and “SP+WRR”,

Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky, DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,

IEEE 802.1x, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP(Zero Touch Provisioning)

SPAN,RSPAN

Accessories: Power cord, rackmount kits,console cable, anti-slipping pad

Environment

Operating temperature/humidity: 0℃ -50℃, 10%-90% non-condensing

Storage temperature/humidity: -20℃ -70℃, 5%-95% noncondensing

Certification: CE, FCC, ROHS

Ordering Information

S2200-B series Ethernet switches
S2212-B	Ethernet switch with 8 100M TX ports and 4 GE uplink ports (1 Console port, 8 100M TX ports, 2 1000M TX ports, 2 100/1000M SFP ports, an AC220V power supply, fanless, 1U, 11-inch rack -mounted installation)
S2220-B	Ethernet switch with 16 100M TX ports and 4 GE uplink ports (1 Console port, 16 100M TX ports, 2 1000M TX ports, 2 100/1000M SFP ports, an AC220V power supply, fanless, 1U, 19-inch rack -mounted installation)
S2228-B	Ethernet switch with 24 100M TX ports and 4 GE uplink ports (1 Console port, 24 100M TX ports, 2 1000M TX ports, 2 100/1000M SFP ports, an AC220V power supply, fanless, 1U, 19-inch rack -mounted installation)
