xPON PoE MDU (Multi- Dwelling Unit)

BDCOM GP1702 Series is a new generation smart PoE MDU for integrated multi-service broadband access networks.

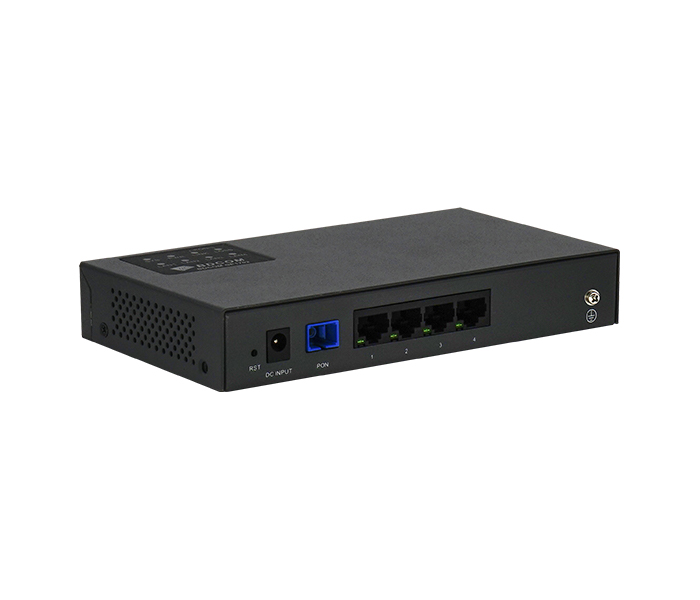

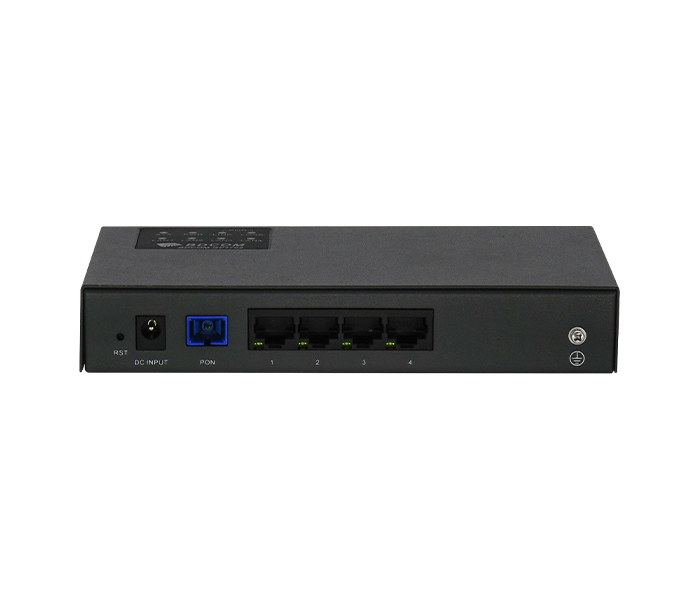

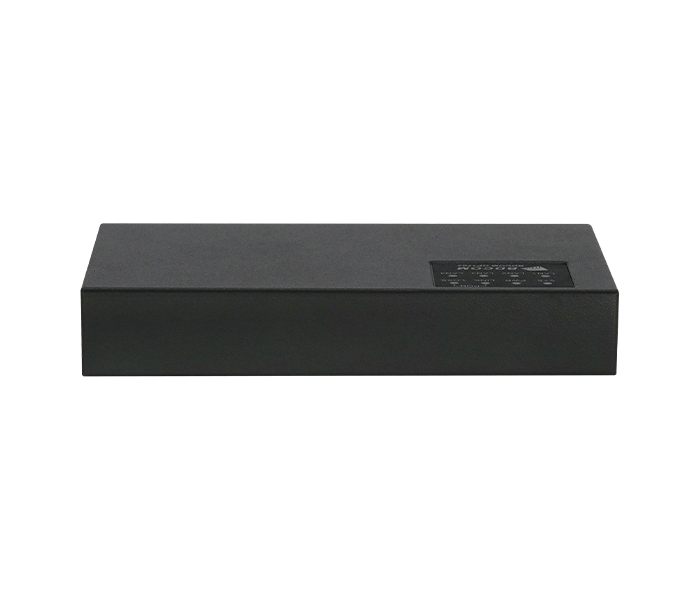

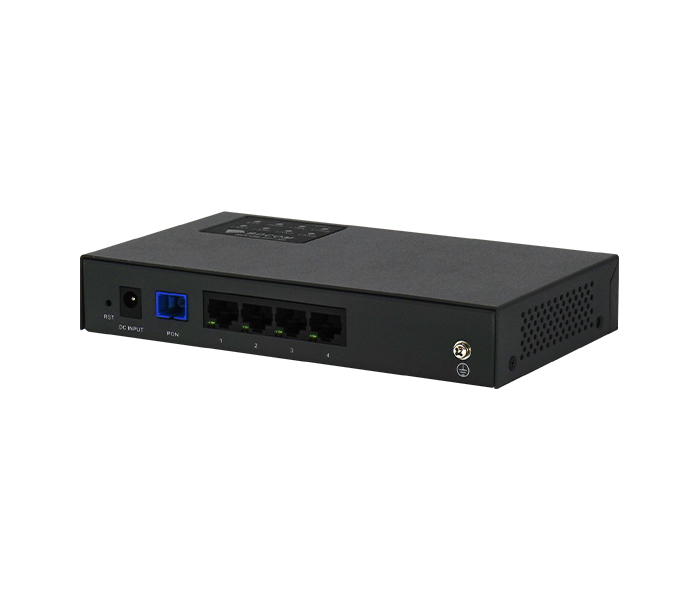

GP1702-4GPM

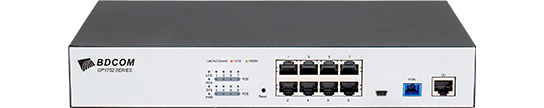

GP1702-8GPM

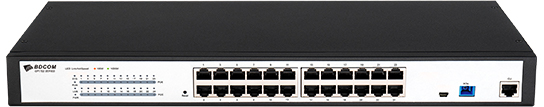

GP1702-24GPM

Highlight Features

Excellent Access Capacity

Complete Interaction Capacity

High Service Control Capability

Varied Application Scenarios

consult

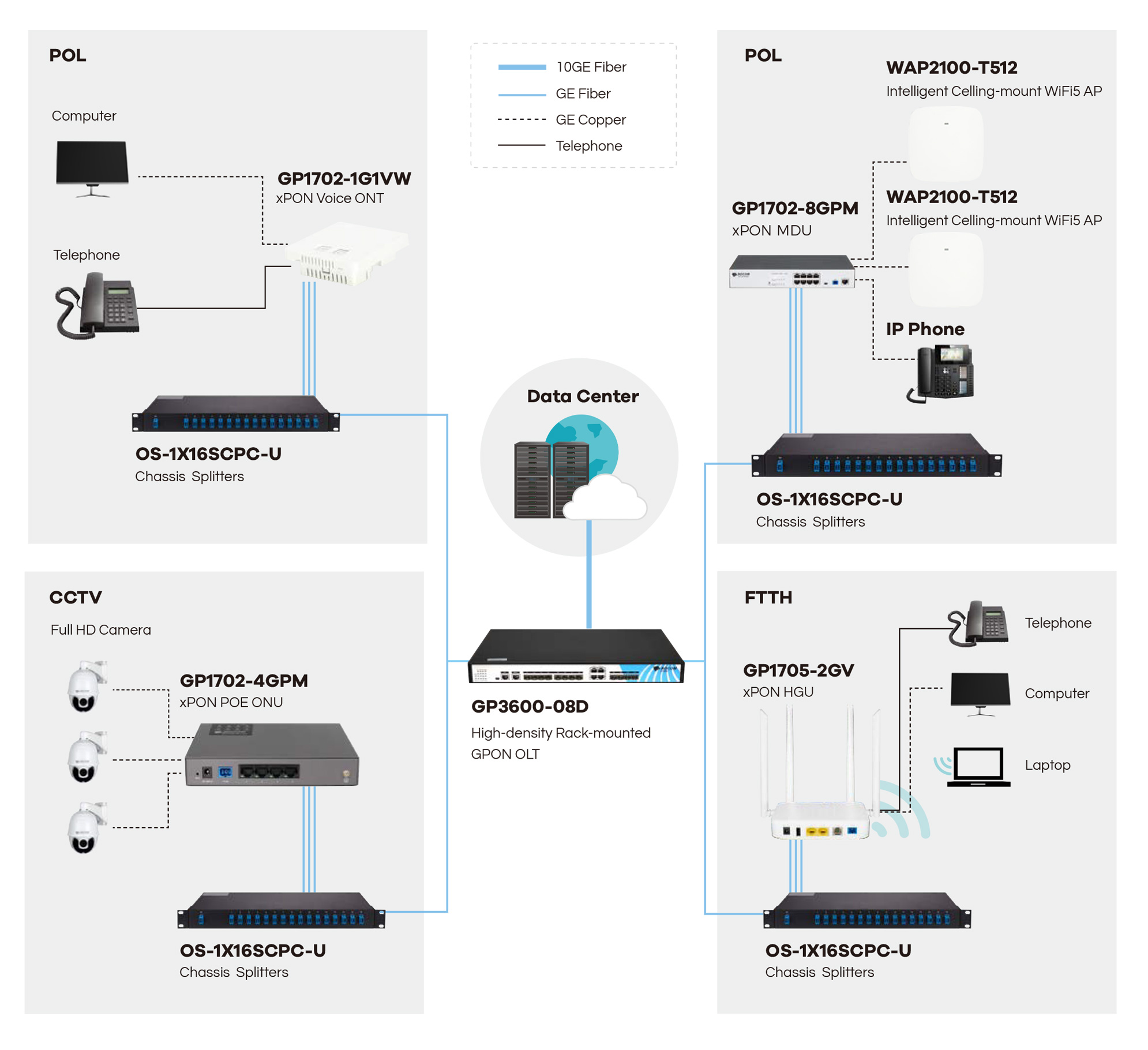

Typical Application

Technical Parameter

GP1702-4GPM GP1702-8GPM GP1702-24GPM
PON ports 1-Port SC/UPC
UNI ports 4-Port Gigabit PoE
Optical power (TX power RX sensitive) 0.5~5dBm, -28dBm
Power supply 12V/1A
Max. consumption (W) 10
PoE budget (W) 65
Chassis
Dimensions (WxDxH mm) 170 x 98 x 28
Weight (Kg) (empty) 0.7
Package
Dimensions (WxDxH mm) 250 x 230 x 55
Weight (Kg) 0.9
Operating
Temperature 0~45°C
Humidity 10%~85%(non-condensing)
Storage
Temperature -40°C~85°C
Humidity 5%~95%(non-condensing)
Parts Power adaptor/power cable
PON ports 1-Port SC/UPC
UNI ports 8-Port Gigabit PoE
Optical power (TX power RX sensitive) 0.5~5dBm, -28dBm
Power supply 100-240V AC
Max. consumption (W) 15
PoE budget (W) 125
Chassis
Dimensions (WxDxH mm) 280 x180 x 44
Weight (Kg) (empty) 1.7
Package
Dimensions (WxDxH mm) 400 x 220 x 63
Weight (Kg) 2.2
Operating
Temperature 0~45°C
Humidity 10%~85%(non-condensing)
Storage
Temperature -40°C~85°C
Humidity 5%~95%(non-condensing)
Parts Power adaptor/power cable
PON ports 1-Port SC/UPC
UNI ports 24-Port Gigabit PoE
Optical power (TX power RX sensitive) 0.5~5dBm, -28dBm
Power supply 100-240V AC
Max. consumption (W) 25
PoE budget (W) 370
Chassis
Dimensions (WxDxH mm) 440 x 207 x 44
Weight (Kg) (empty) 3.0
Package
Dimensions (WxDxH mm) 500 x 323 x 75
Weight (Kg) 3.7
Operating
Temperature 0~45°C
Humidity 10%~85%(non-condensing)
Storage
Temperature -40°C~85°C
Humidity 5%~95%(non-condensing)
Parts Power adaptor/power cable

Features

Standards

ITU-T G.984/G.988,

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation/Trunk/Translation mode VLAN

CTC2.0 defined VLAN

XPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including

CLI, HTTP, SNMP and TELNET

Software upgrade through TFTP and WEB, OMCI, OAM,etc.

Local or server syslog

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Ordering Information

GP1702 Series
GP1702-4GPM xPON PoE ONU, 1-Port GPON/EPON (SC/UPC), 4-Port Gigabit PoE+, metal casing, DC12V/1.17A power adaptor
GP1702-8GPM xPON PoE MDU (Multi-Dwelling Unit), 1-Port GPON/EPON (SC/UPC), 8-Port Gigabit PoE+, metal casing with cooling fan, single AC-220V power supply, 130W PoE budget)
GP1702-24GPM xPON PoE MDU(Multi-Dwelling Unit), 1-Port GPON/EPON (SC/UPC), 24-Port Gigabit PoE+, metal casing with cooling fan, single AC-220V power supply, 370W PoE budget)
