Industrial-grade Gigabit PoE ONT

BDCOM GP1702-GI Series Industrial SFU is an intelligent industrial ONT product developed by BDCOM for multi-service converged networks.

GP1702-4GPI
GP1702-8GPI
GP1702-8GPDI

Highlight Features

Excellent Access Capacity

Secure Service Carrying Ability

Refined Service Control Capability

Comprehensive Control Functions

Complete Interaction Capacity

Advanced Energy-saving Technique

consult

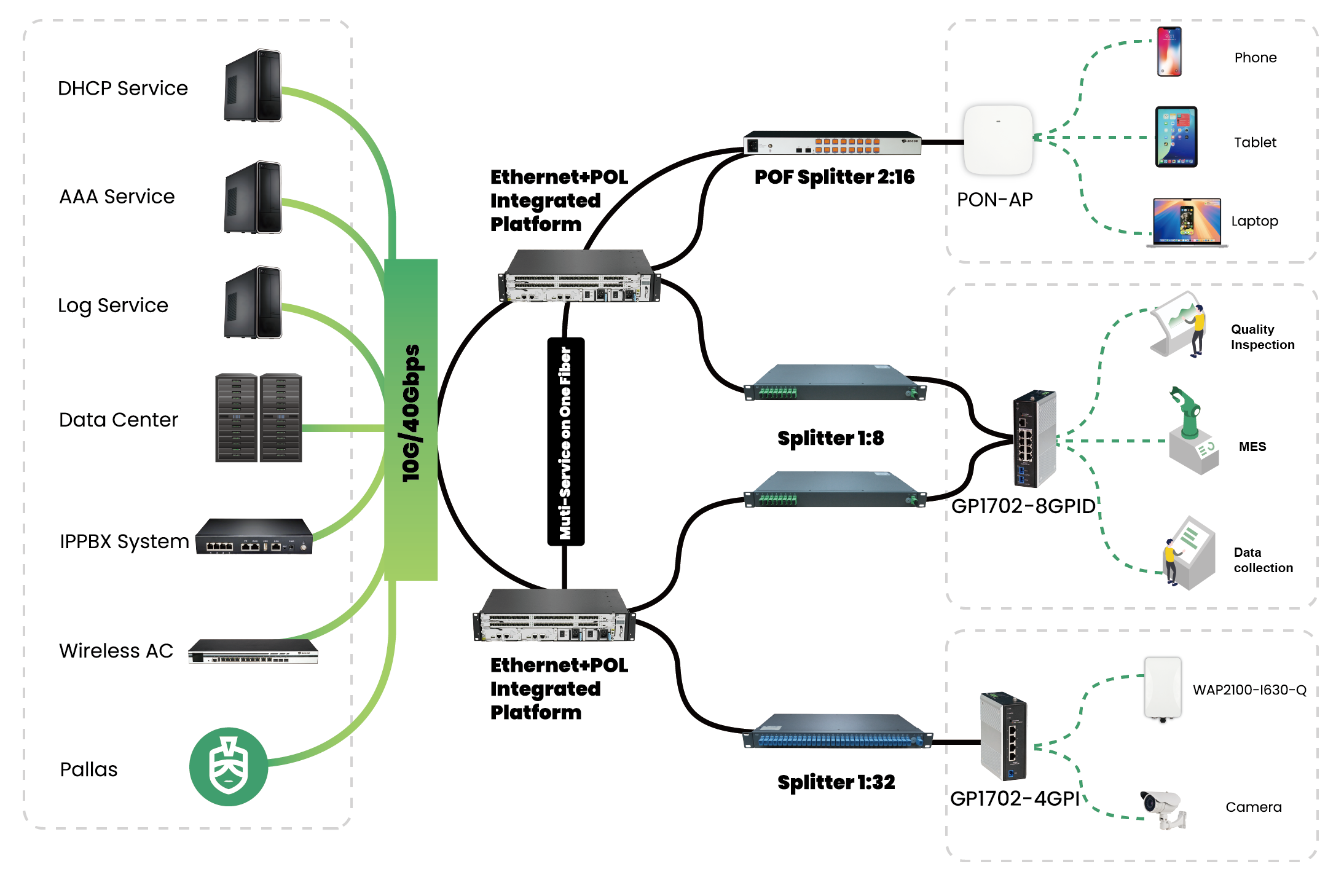

Typical Application

Technical Parameter

GP1702-4GPI GP1702-8GPI GP1702-8GPDI
Gigabit RJ45 4
PON Port 1
PoE Feature IEEE802.3at/af standards.
All ports support PoE power
output.
Query and control functions for
the PoE status of Ethernet ports.
The maximum PoE budget of
120W
Power Supply Dual DC 48~55V (Pheonix)
DC 48~55V (Jack)
Working Environment -40°C~75°C; 10%~85%
non-condensing
Reliability MTBF: ≥ 400,000 hours

Supports Type B single/
dual-homing protection
Chassis
Dimensions(WxDxH mm) 138x108x52
Weight(Kg) (empty) 0.72
Package
Dimensions(WxDxH mm) 270x227x55
Weight(Kg) 1
Gigabit RJ45 8
PON Port 1
PoE Feature IEEE802.3at/af standards.
All ports support PoE power
output.
Query and control functions for
the PoE status of Ethernet ports.
The maximum PoE budget of
240W
Power Supply Dual DC 48~55V (Pheonix)
DC 48~55V (Jack)
Working Environment -40°C~75°C; 10%~85%
non-condensing
Reliability MTBF: ≥ 400,000 hours

Supports Type B single/
dual-homing protection
Chassis
Dimensions(WxDxH mm) 164x108x51
Weight(Kg) (empty) 1
Package
Dimensions(WxDxH mm) 242x167x78
Weight(Kg) 1.2
Gigabit RJ45 8
PON Port 2
PoE Feature IEEE802.3at/af standards.
All ports support PoE power
output.
Query and control functions for
the PoE status of Ethernet ports.
The maximum PoE budget of
240W
Power Supply Dual DC 48~55V (Pheonix)
DC 48~55V (Jack)
Working Environment -40°C~75°C; 10%~85%
non-condensing
Reliability MTBF: ≥ 400,000 hours

Supports dual PON port "1+1"
protection with automatic
switching and recovery
Chassis
Dimensions(WxDxH mm) 164x108x51
Weight(Kg) (empty) 1
Package
Dimensions(WxDxH mm) 242x167x78
Weight(Kg) 1.2

Features

PON port

· EPON/GPON self-adaptation

· GPON: downlink 2.5Gbps/uplink 1.25Gbps

· EPON: downlink 1.25Gbps/uplink 1.25Gbps

· Network covering radius: 20km

· Hi-sensible optical receiver:≥-28dBm

· Radiation power: 0.5~5dBm

· Type of the optical port: SC/UPC

Standards

· ITU-T G.984/G.988, IEEE802.3ah

· GBT33845-2017, YD/T 1475-2006

· IEEE 802.1Q, VLAN

Multicast

· IGMP-Snooping

· CTC defined dynamic multicast

· MLD-Snooping

QoS

· Back pressure flow control (half duplex)

· IEEE 802.3x flow control (full duplex)

· Head of Line (HoL) mechanism

· IEEE 802.1p, CoS

· 4 priority queues per port

· WR, SP and FIFO

· Port rate limit

Reliability

· Loop detect

· Dying-Gasp

· Type B/C single/dual homing protection

Security

· Port-based MAC address limitation

· Port protection

· Port storm control

VLAN

· 4K VLAN

· Port based VLAN

· IEEE 802.1Q VLAN

· VLAN Aggregation

· VLAN Translation

· VLAN Stacking

Management

· Web, Telnet, TR069, OMCI, OAM

· Software upgrade through TFTP/WEB/TR069/OLT

Installation

· DIN-rail mounting

Thermal Performance

· Fanless, with aluminum housing for passive cooling

Ordering Information

GP1702-GPI Series
BDCOM GP1702-4GPI FTTB/O Industrial PoE ONU, 1-port GPON/EPON (SC/UPC), 4-port Gigabit PoE+, aluminum alloy housing, 120W PoE budget, dual pheonix + single jack DC 48~55V power input, IP40, DIN-rail mounting
BDCOM GP1702-8GPI FTTB/O Industrial PoE ONU, 1-port GPON/EPON (SC/UPC), 8-port Gigabit PoE+, aluminum alloy housing, 240W PoE budget, dual pheonix + single jack DC 48~55V power input, IP40, DIN-rail mounting
BDCOM GP1702-8GPDI FTTB/O Industrial PoE ONU, 2-port GPON/EPON (SC/UPC), 8-port Gigabit PoE+, aluminum alloy housing, 240W PoE budget, dual pheonix + single jack DC 48~55V power input, IP40, DIN-rail mounting
