>Products>Router>Mobile Router

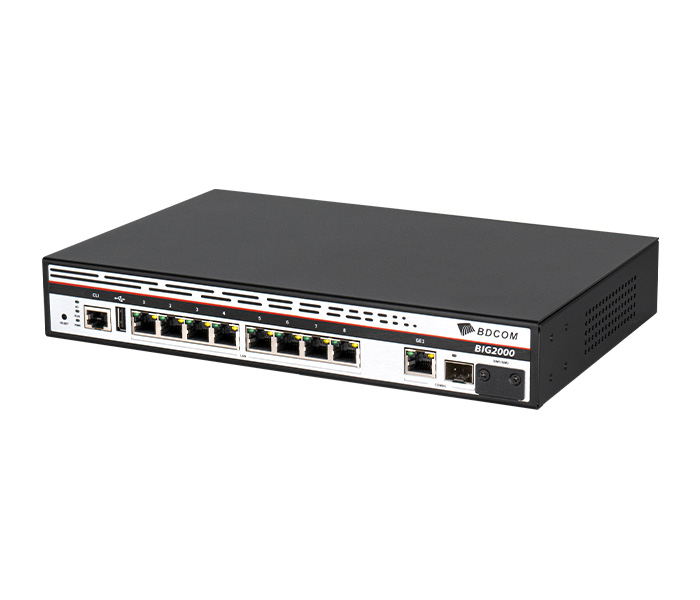

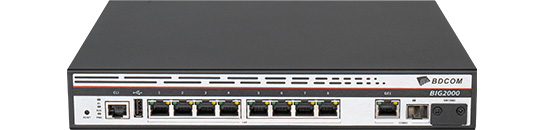

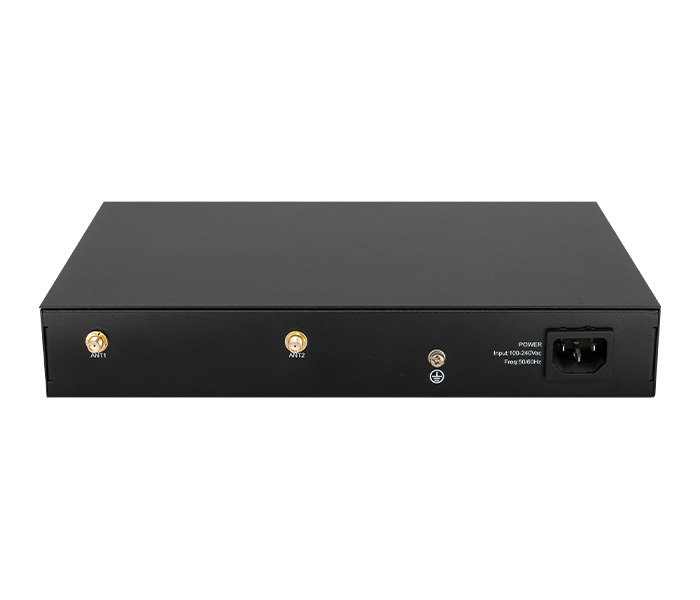

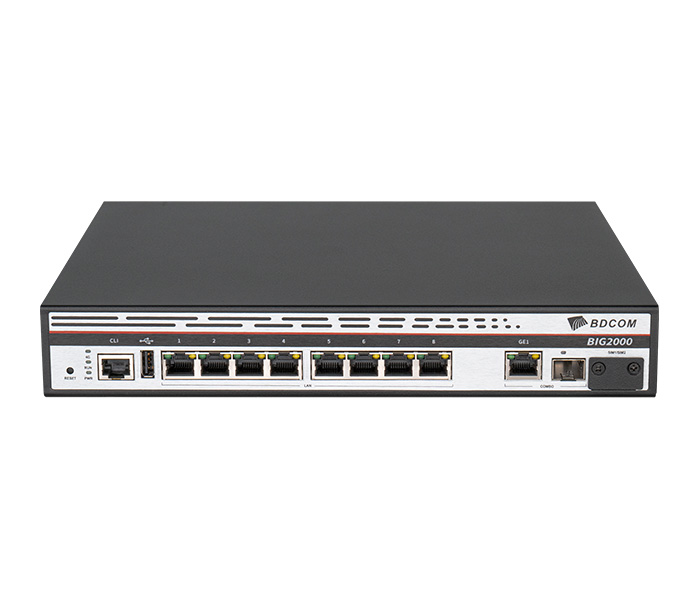

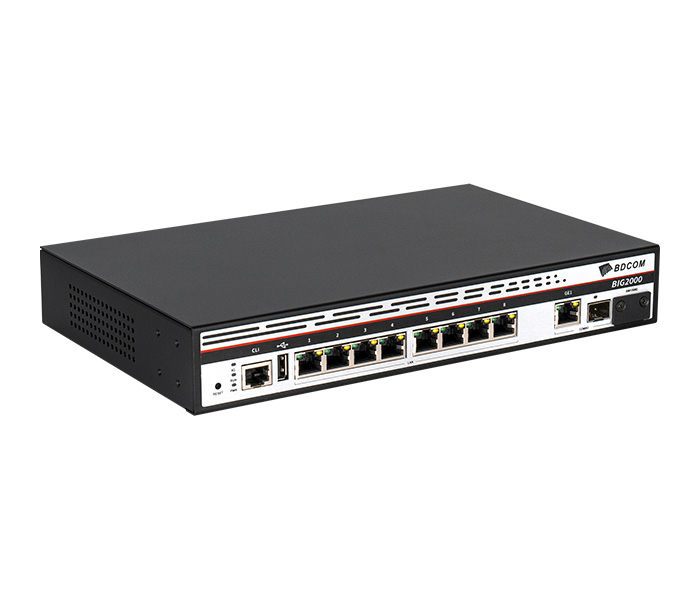

Multi-service Integrated 4G-LTE Gateway

BDCOM BIG2000 series is the BDCOM–developed multi-service converged gateway oriented for various ICT scenarios such as enterprises, parks, hotels, campuses, hospitals, and commercial chains.

BIG2000-08LTE

Highlight Features

Powerful Performance

Excellent Reliability

Comprehensive Routing Protocols

Rich Feature Collection

Thoughtful Cloud Management and Maintenance

consult

Typical Application

Technical Parameter

BIG2000-08LTE

Console(RJ45)	1
USB	1
Ports
WAN	1 LTE(dual-SIM single-standby) 1-Port Gigabit RJ45/SFP combo
LAN	8-Port Gigabit RJ45
Reset	1
Throughput	1Mpps
Flash	4GB
DRAM	1GB
NAT concurrent session	<350K
Consumption
No-load	≤5W
Full-load	≤10W
Total output BTU(not: 1000BTU/hr=293W)	34.13
Chassis
Dimensions mm (WxDxH)	280x180x44
Weight (kg,empty)	1.5
Package
Dimensions mm (WxDxH)	500×320×80
Weight (kg)	1.7
Operating
Temperature	-20℃ ~ 60℃
Humidity	5%~95% (non-condensing)
Storage
Temperature	-40℃~85℃
Humidity	5%~95% (non-condensing)
Fan	/
Noise@25℃(dBA)	0
Power supply	100-240V AC
Accessory	Console cable, power adaptor,rackmount-kit, rubber pads

Features

ARP: ARP dynamic learning, ARP static binding, free ARP anti-spoofing

Ethernet protocol: 802.3 protocol family, 802.1Q VLAN, Rate-limit, broadcast storm suppression

Link layer protocol: Point to Point Protocol (PPP)

LTE wireless

TDD and FDD-LTE full Netcom modules, backward compatible

APN dial-up

dual-SIM single-standby and wireless backup networking (applicable to some models)

WAN access

Static IP address, DHCP dynamic IP and PPPoE dial-up access

Multi-line networking

Load balancing of multiple policies (equivalent, weighted)

QoS

Traffic classification based on IP 5-tuple

Committed Access Rate (CAR) and Generic Traffic Shaping (GTS)

PQ, CQ, CBWFQ

Routing protocol

Static routing, PBR

RIP v1/v2, OSPF v2, BGP

Floating routing and routing automatic backup

Keepalive, BFD remote link detection

NAT

NAT based on IP, port and address pool

SNAT, DNAT

NAT port mapping

NAT concurrent connection limit

NAT Application Layer Gateway (ALG)

DHCP

DHCP server, DHCP Relay

DHCP Option43, 60, 82

IP-based service

IP, ICMP, TCP, UDP

DNS and DDNS

NTP

FTP and TFTP

PPPoE server

Multicast protocol: IGMP, PIM-SM, PIM-DM

Network security

AAA, PPP, CHAP and MS-CHAP authentication

IP and MAC-based ACL firewall policy

Rich VPN protocols such as IKE, IPSec, L2TP/PPTP, GRE

Nested deployment of multiple VPN protocols

Anti-Flood capability for ARP, IP, ICMP, TCP

Attack protection such as Ping of Death, Tear-drop, WinNuke, Smurf, etc.

IPv6 protocol

IP v4/v6 dual stack

Ipv6 static routing

IPSec v6

Ipv6 Dynamic routing such as RIPng, OSPFv3, BGP4+

Management and maintenance

Console, Telnet, SSH, SNMP

ping, traceroute

Syslog

Pallas cloud management

Ordering Information

BIG2000 Series
BIG2000-08LTE	BIG2000-08LTE Multi-service Integrated 4G-LTE Gateway ( 1-Port RJ45 console, 1-Port USB2.0, 1-Port Gigabit RJ45/SFP combo WAN, 8-Port Gigabit RJ45 LAN, built-in dual-sim single-stand by full-Netcom 4G LTE, 220V AC power supply)
