>Products>Industrial Switch

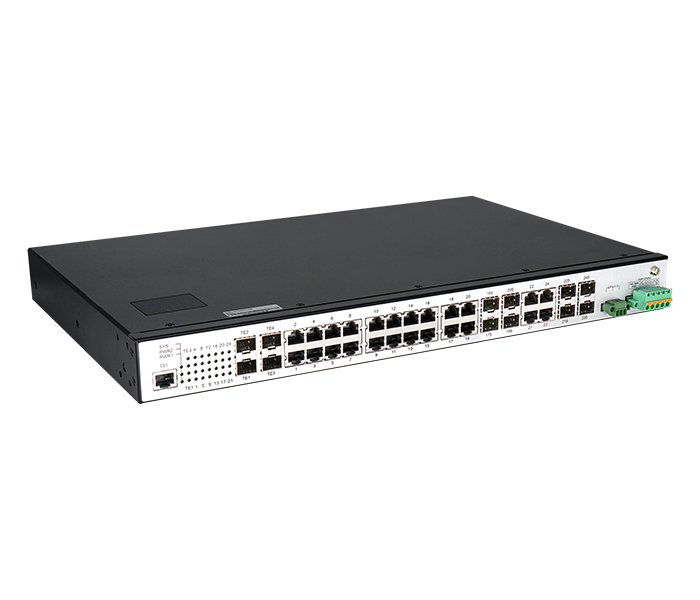

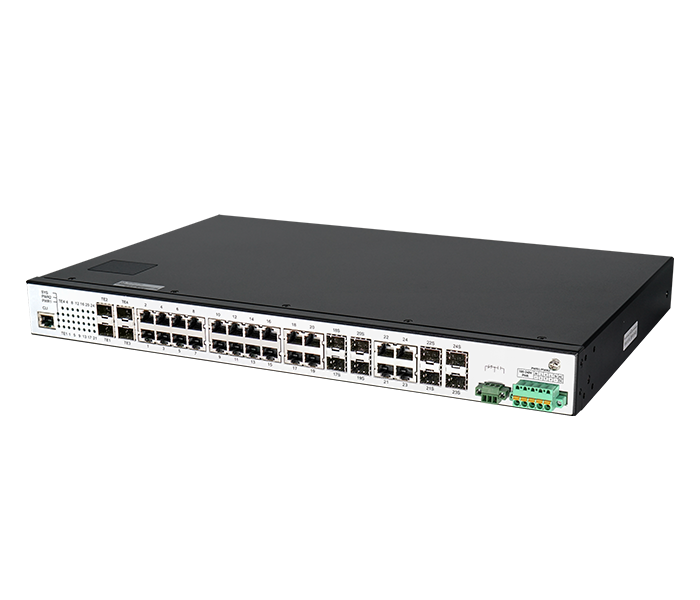

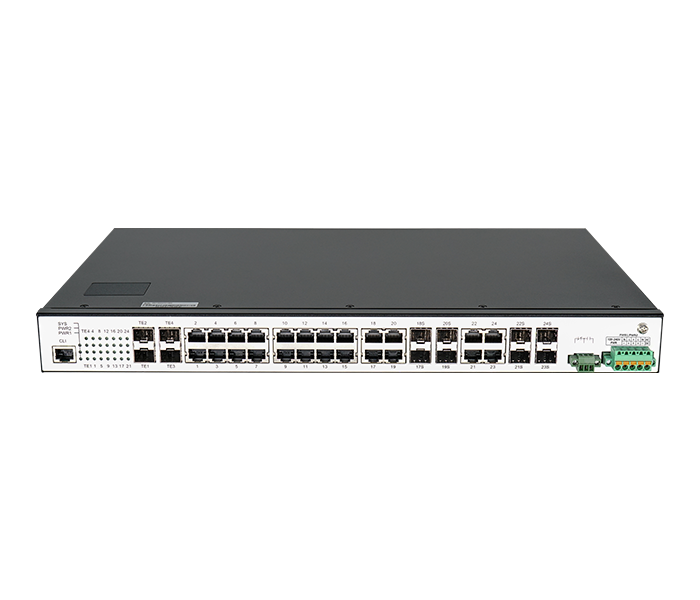

L3-lite Managed Gigabit/10G stackable Industrial Switch

IES2000 rack-mount pizza-box industrial-grade switch with best-in-class hardware design and rich layer2 and layer3 software features for reliable and secured network in harsh environment

IES2000-5024T4S

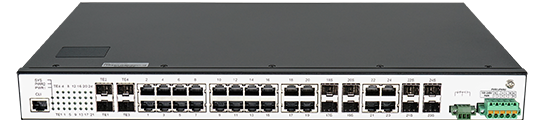

IES2000-5024T8C4X

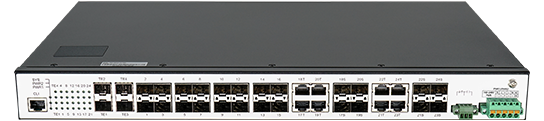

IES2000-5024S8C4X

Highlight Features

Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

Wide-range working temperature 800,000 hours MTBF

IP40 protection 6KV lightning protection

consult

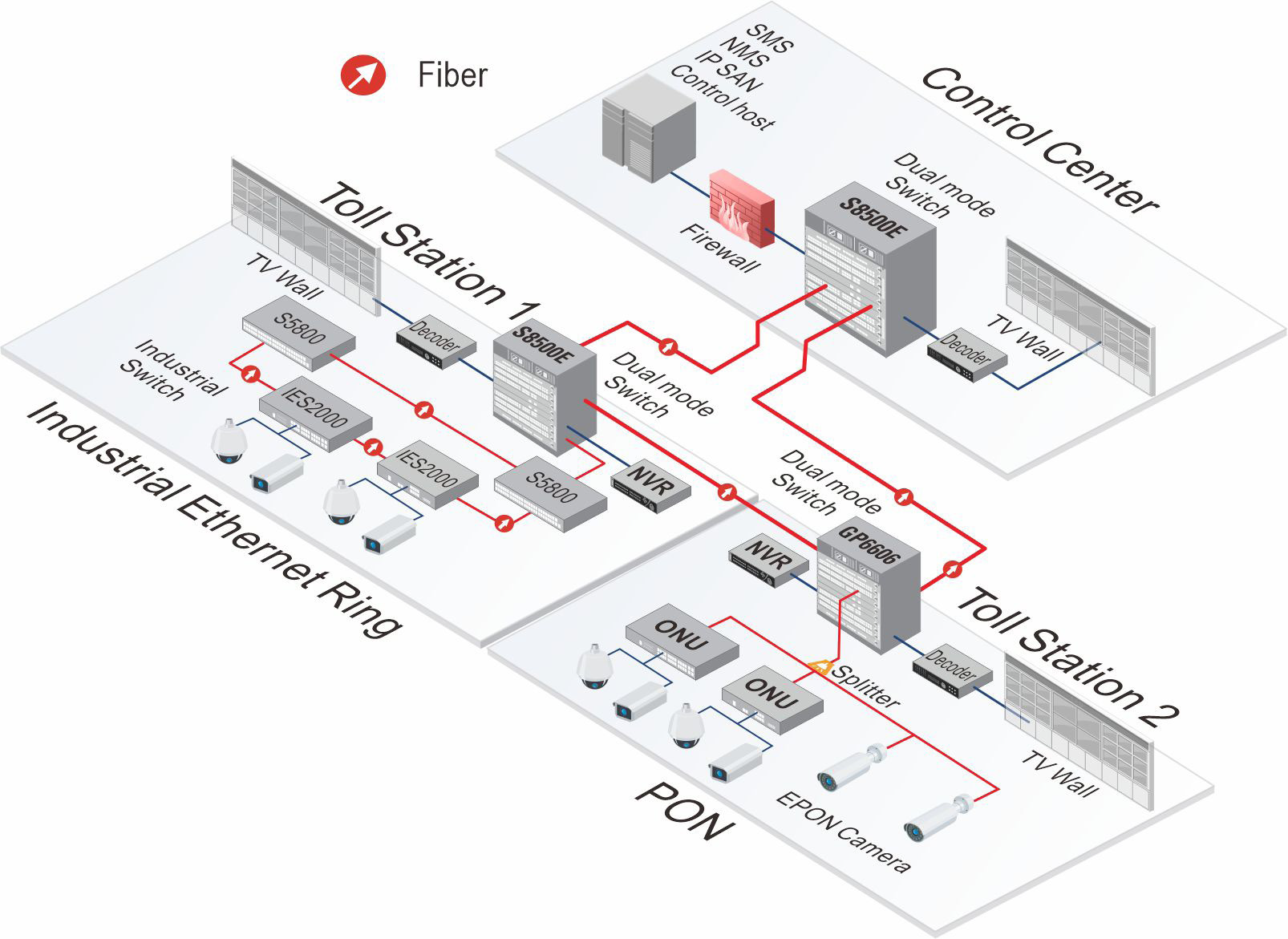

Typical Application

Technical Parameter

IES2000-5024T4S IES2000-5024T8C4X IES2000-5024S8C4X

Gigabit Interface
RJ45	24
SFP	4
10G/GE SFP+	/
Console(RJ45)	1
Backplane(Gbps)	128
Forwarding rate(Mpps with 64 bytes)	42
Chassis
Dimensions (WxDxH)(mm)	440x280x44
Weight (KG)(empty)	2.6
Package
Dimensions (WxDxH)(mm)	57644894
Weight(KG)	3.4
Power consumption
no-load	13.5W
full-load	30.05W
Power supply	Dual AC or DC 100~240V
Total output BTU (1000BTU/H=293W)	102.56
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	256
MAC	16K
Buffer size(Mb)	12
Jumbo frame	9K
Total SVI	64

Gigabit Interface
RJ45	16
SFP	8
10G/GE SFP+	4
Console(RJ45)	1
Backplane(Gbps)	128
Forwarding rate(Mpps with 64 bytes)	96
Chassis
Dimensions (WxDxH)(mm)	440x280x44
Weight (KG)(empty)	2.7
Package
Dimensions (WxDxH)(mm)	57644894
Weight(KG)	3.5
Power consumption
no-load	15.5W
full-load	33.25W
Power supply	Dual AC or DC 100~240V
Total output BTU (1000BTU/H=293W)	113.48
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	256
MAC	16K
Buffer size(Mb)	12
Jumbo frame	9K
Total SVI	64

Gigabit Interface
RJ45	8
SFP	16
10G/GE SFP+	4
Console(RJ45)	1
Backplane(Gbps)	128
Forwarding rate(Mpps with 64 bytes)	96
Chassis
Dimensions (WxDxH)(mm)	440x280x44
Weight (KG)(empty)	3
Package
Dimensions (WxDxH)(mm)	57644894
Weight(KG)	3.8
Power consumption
no-load	20W
full-load	38.6W
Power supply	Dual AC or DC 100~240V
Total output BTU (1000BTU/H=293W)	131.74
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	256
MAC	16K
Buffer size(Mb)	12
Jumbo frame	9K
Total SVI	64

Features

VLAN: 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast: IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

IP

Static route, RIP, OSPF

IPv4/v6 dual stack

Ipv6

ICMPv6, DHCPv6, ACLv6 and Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD V1, MLD snooping

IPv6 Static Routing, RIPng, OSPFv3

Manual tunnel, ISATAP tunnel,6 to 4 tunnel

QoS: CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky

DAI & IP source guard, PPPoE+,

IEEE 802.1x, AAA, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and

Port security, IP+MAC+port binding filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Virtualization

Support BDCOM Virtual Stacking System (BVSS)

up to 16 stacking units

DHCP

DHCP server/relay/client

DHCP snooping/option82

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU uninterrupted system upgrade

BVSS, ups to 16-units per stack

VRRP

UDLD

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP

SPAN, RSPAN

Dying gasp*

Environment

Operating temperature/humidity: -40~85°C ,10%-90% non-condensing

Storage temperature/humidity: -40~85°C , 5%-95% non-condensing

Accessories: Power cord, rackmount kits, console cable

Ordering Information

IES2000 Series
IES2000-5024T4S	24-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature: -40~85°C; dual industrial AC power input (90~260V), rack –mounted installation)
IES2000-5024T8C4X	16-Port Gigabit RJ45 + 8-Port Gigabit RJ45/SFP Combo + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature: -40~85°C; dual industrial AC power input (90~260V), rack –mounted installation)
IES2000-5024S8C4X	16-Port Gigabit SFP + 8-Port Gigabit RJ45/SFP Combo + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature: -40~85°C; dual industrial AC power input (90~260V), rack –mounted installation)
