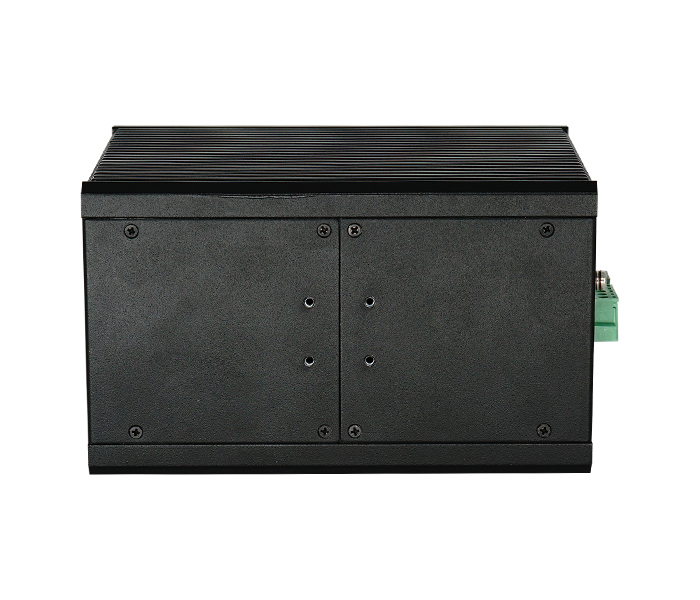

L3-lite Managed Gigabit/10G Industrial Switch

IES2000-T Din-rail compact switch with 10G SFP+ uplink ports and high-density downlink ports integrated in rugged box, designed for harsh network environment with rich layer2 and layer3 features fulfilling the needs from smart grid, transportation and industrial automation etc.

IES2000-TU16T4S4X

Highlight Features

Advanced Hardware Architecture and Industry-leading  Port Density

Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

IP40 protection 6KV lightning protection

consult

Typical Application

Technical Parameter

IES2000-TU16T4S4X
Gigabit Interface
RJ45 16
SFP 4
10G/GE SFP+ 4
Console (RJ45) 1
Backplane (Gbps) 128
Forwarding rate (Mpps with 64 bytes) 90
Chassis
Dimensions (WxDxH)(mm) 170x140x100
Weight (KG)(empty) 2.2
Package
Dimensions (WxDxH)(mm) 300x195x145
Weight(KG) 2.4
Power consumption
no-load 13.5W
full-load 31W
Power supply Dual AC or DC
100~240V
Total output BTU (1000BTU/H=293W) 105.8
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 256
MAC 16K
Buffer size(Mb) 12
Jumbo frame 9K
Total SVI 64

Features

VLAN

4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

IP

Static route, RIP, OSPF

IPv4/v6 dual stack

IPv6

ICMPv6, DHCPv6, ACLv6 and Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD V1, MLD snooping

IPv6 Static Routing, RIPng, OSPFv3

Manual tunnel, ISATAP tunnel,6 to 4 tunnel

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky

DAI & IP source guard, PPPoE+,

IEEE 802.1x, AAA, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and

Port security, IP+MAC+port binding filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Virtualization

Support BDCOM Virtual Stacking System (BVSS)

up to 16 stacking units

DHCP

DHCP server/relay/client

DHCP snooping/option82

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU uninterrupted system upgrade

BVSS, ups to 16-units per stack

VRRP

UDLD

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP

SPAN, RSPAN

Environment

Operating temperature/humidity: -40~85°C ,10%-90% non-condensing

Storage temperature/humidity: -40~85°C , 5%-95% non-condensing

Accessories

Power cord, rackmount kits, console cable

Ordering Information

IES2000-T Series
IES2000-TU16T4S4X 16-Port Gigabit RJ45 + 4-Port Gigabit SFP + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature -40~85°C;IP40; supports 16-unit virtual stacking, industrial universal AC/DC power input, excluding power cable, Din-rail installation)
