L2+ Managed Full-gigabit Industrial Switch

BDCOM IES2000 series, based on the bran-new high-performance hardware and BDROS software system of BDCOM's independent intellectual property rights, supports rich Layer-2/Layer-3 routing and industrial ring network protocols.

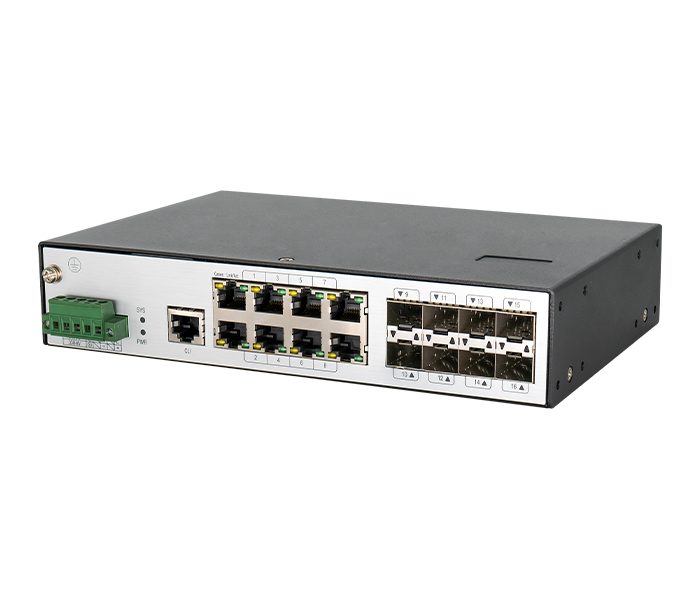

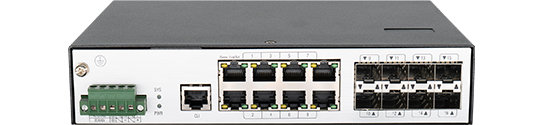

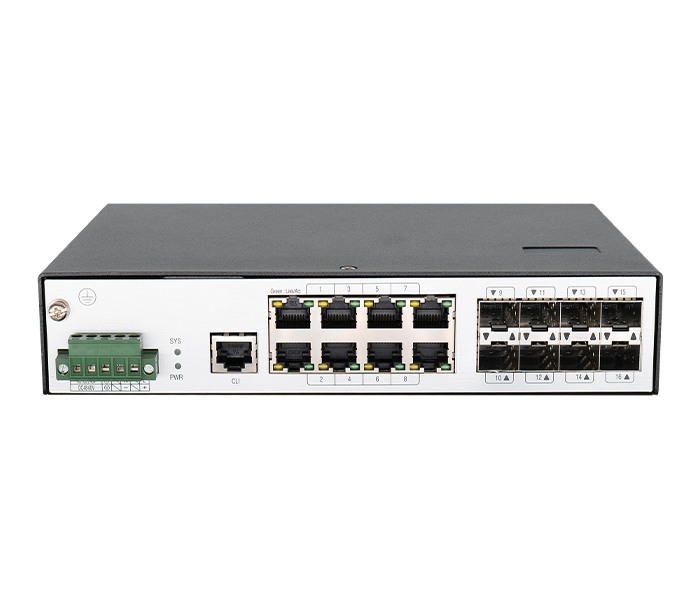

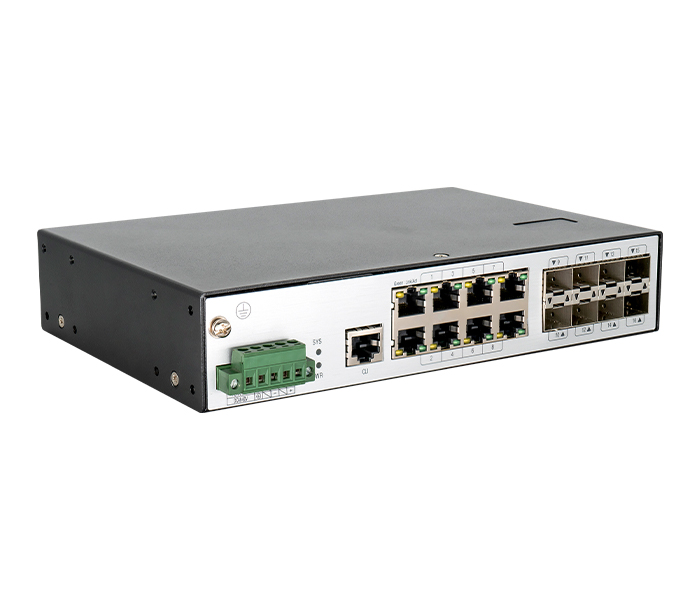

IES2000-TU8S8T

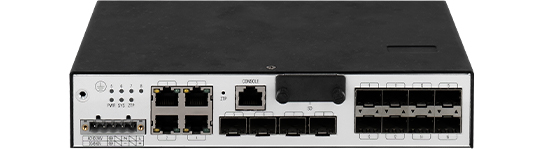

IES2000-TU12S4T

Highlight Features

Advanced Hardware Architecture and Industry-leading Port Density

IP40 protection 6KV lightning protection

consult

Typical Application

Technical Parameter

IES2000-TU8S8T IES2000-TU12S4T
Gigabit Interface
RJ45 8
SFP 8
Console (RJ45) 1
Backplane (Gbps) 52
Forwarding rate (Mpps with 64 bytes) 24
Chassis
Dimensions (WxDxH)(mm) 220x150x44
Weight (KG)(empty) 1
Package
Dimensions (WxDxH)(mm) 350x268x94
Weight(KG) 1.5
Power consumption
no-load 13.5W
full-load 30.05W
Power supply Dual AC or DC
100~240V
Total output BTU (1000BTU/H=293W) 102.56
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 4
SFP 12
Console (RJ45) 1
Backplane (Gbps) 52
Forwarding rate (Mpps with 64 bytes) 24
Chassis
Dimensions (WxDxH)(mm) 220x150x44
Weight (KG)(empty) 1
Package
Dimensions (WxDxH)(mm) 350x268x94
Weight(KG) 3.5
Power consumption
no-load 15.5W
full-load 33.25W
Power supply Dual AC or DC
100~240V
Total output BTU (1000BTU/H=293W) 113.48
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4
Jumbo frame 9K
Total SVI 10

Features

VLAN

4K VLAN entries

GVRP

QinQ

Private VLAN

Ring protection

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP routing

Default Gateway

DHCP

DHCP Client

DHCP Snooping

QoS

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS/

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security features

Identification and filtering of L2/L3/L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+ authentication

Command line hierarchical protection

Reliability

Static/LACP

Ethernet OAM

ISSU

Backuplink

Management and maintenance

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote Network Monitoring (RMON )

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

L2/L3/L4 ACL

IPv4, IPv6 ACL

VLAN ACL

Ordering Information

IES2000 Series
IES2000-TU8S8P 8-Port Gigabit SFP + 8-Port Gigbat RJ45 L2+ Managed Industrial Switch ( AC/DC hybrid power input, working temperature: -40~85°C; IP40; DIN-rail or half-rack installation)
IES2000-TU12S4T 12-Port Gigabit SFP + 4-Port Gigbat RJ45 L2+ Managed Industrial Switch ( AC/DC hybrid power input, working temperature: -40~85°C; IP40; DIN-rail or half-rack installation)
