Full Gigabit Managed L3-lite Industrial PoE Switch

IES200-L25-P series, based on a new generation of high-performance hardware and BDROS platform of BDCOM's independent intellectual property rights, supports ACL, QinQ, QoS and static routing.

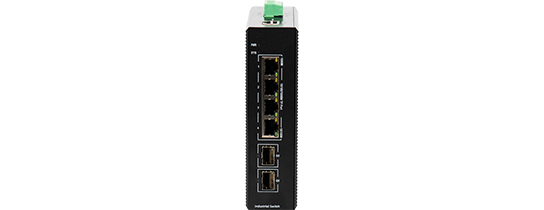

IES200-V25-2S4P

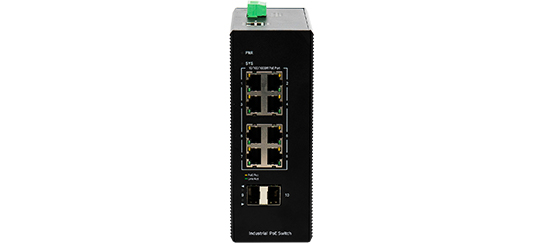

IES200-V25-2S8P

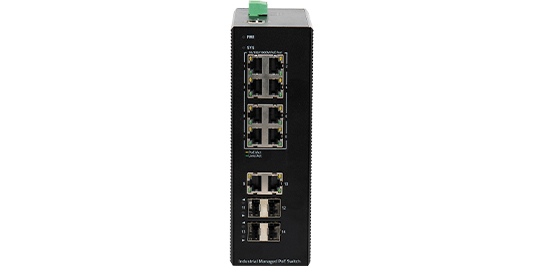

IES200-V25-4S2T8P

Highlight Features

The reliable industrial design of IES200-L25-P series such as electromagnetic compatibility, anti-vibration and anti-shock capability, and IP40 protection, can be widely used in energy, transportation, industrial production, environmental protection, military industries.

consult

Typical Application

Technical Parameter

IES200-L25-2S4P IES200-L25-2S8P IES200-L25-4S8P
Gigabit Interface
RJ45 4 PoE+
SFP 2
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 9
Chassis
Dimensions (WxDxH)(mm) 138x108x44
Weight (KG)(empty) 0.7
Package
Dimensions (WxDxH)(mm) 245*190*60
Weight(KG) 0.9
Power consumption
no-load <12W
full-load(with PoE) 140W
Power supply Dual DC 48~55V (Pheonix)
DC 12V (Jack)
PoE power budget 120W
Total output BTU (1000BTU/H=293W) 477.82
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 8 PoE+
SFP 2
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 15
Chassis
Dimensions (WxDxH)(mm) 138x108x44
Weight (KG)(empty) 0.7
Package
Dimensions (WxDxH)(mm) 245*190*60
Weight(KG) 0.9
Power consumption
no-load <12W
full-load(with PoE) 260W
Power supply Dual DC 48~55V (Pheonix)
DC 12V (Jack)
PoE power budget 240W
Total output BTU (1000BTU/H=293W) 887.37
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 8 PoE+
SFP 4
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 18
Chassis
Dimensions (WxDxH)(mm) 138x108x44
Weight (KG)(empty) 0.7
Package
Dimensions (WxDxH)(mm) 245*190*60
Weight(KG) 0.9
Power consumption
no-load <15W
full-load(with PoE) 260W
Power supply Dual DC 48~55V (Pheonix)
DC 12V (Jack)
PoE power budget 240W
Total output BTU (1000BTU/H=293W) 887.37
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10

Features

VLAN

4K VLAN entries

GVRP

QinQ

Private VLAN

Voice VLAN

Ring protection

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

G.8032 ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP routing

Static route

RIP, OSPF

128 routing table

DHCP

DHCP Server/Client/Relay

DHCP Snooping

QoS

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS/

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security

Identification and filtering of L2/L3/L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+ authentication

Command line hierarchical protection

Reliability

Static/LACP LAG

Ethernet OAM

ISSU

Backuplink

VRRP

Management and maintenance

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote Network Monitoring (RMON )

Syslog

SPAN, RSPAN

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

VLAN ACL

L2~4 ACL

IPv4, IPv6 ACL

Ordering Information

IES200-L25-P Series

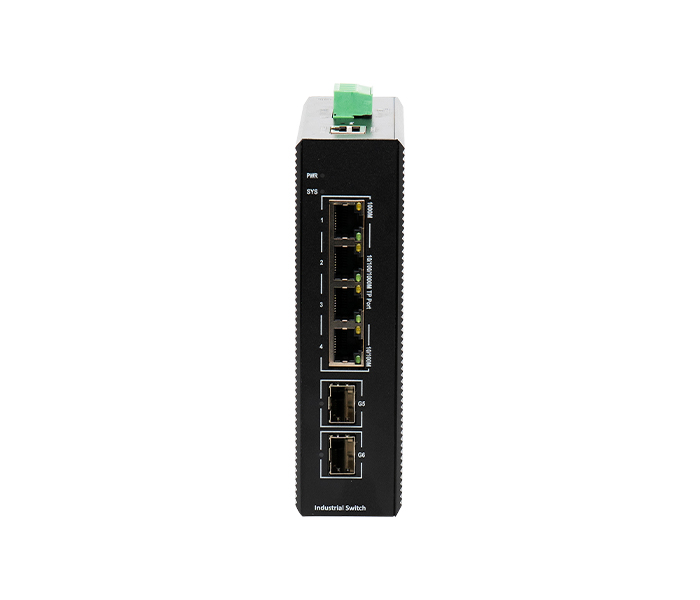

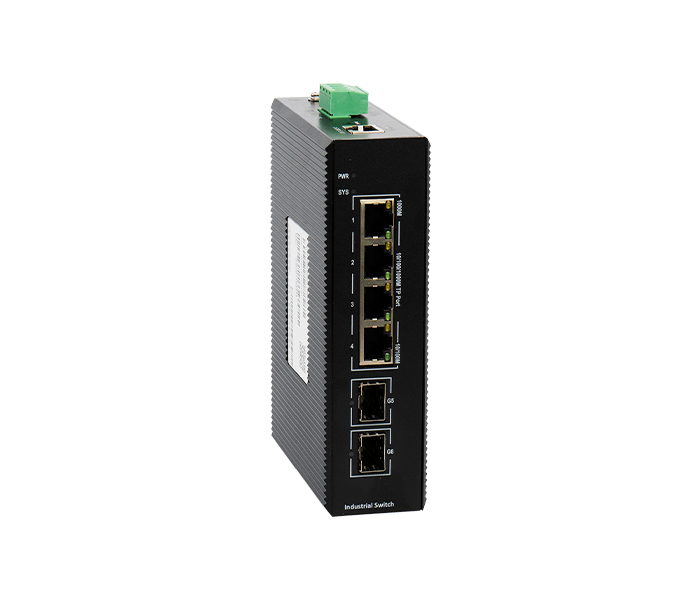

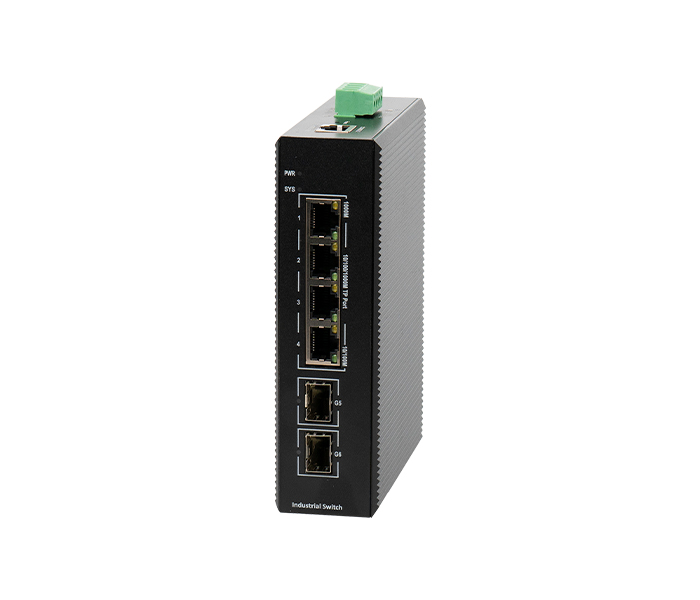

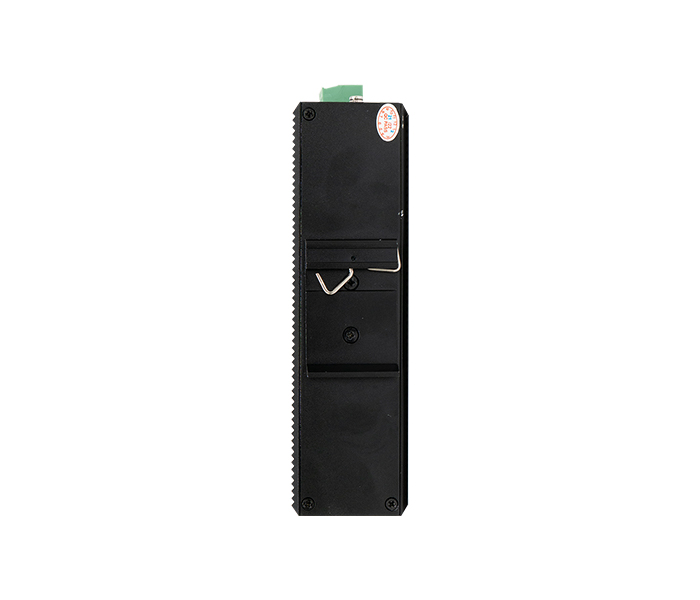

IES200-L25-2S4P 4-Port Gigabit PoE+ 2-Port Gigabit SFP L3-lite Managed PoE Industrial Switch (dual 48~55V DC pheonix PoE power input, 120W PoE budget, single 12V DC jack non-PoE power input; operating temperature: -40~75°C; IP40; DIN-rail installation)
IES200-L25-2S8P 8-Port Gigabit PoE+ 2-Port Gigabit SFP L3-lite Managed PoE Industrial Switch (dual 48~55V DC pheonix PoE power input, 240W PoE budget, single 12V DC jack non-PoE power input; operating temperature: -40~75°C; IP40; DIN-rail installation)
IES200-L25-4S8P 8-Port Gigabit PoE+ 4-Port Gigabit SFP L3-lite Managed PoE Industrial Switch (dual 48~55V DC pheonix PoE power input, 120W PoE budget, single 12V DC jack non-PoE power input; operating temperature: -40~75°C; IP40; DIN-rail installation)
