Full Gigabit Managed L3-lite Industrial Switch

IES200-L25 series, based on a new generation of high-performance hardware and BDROS platform of BDCOM's independent intellectual property rights, supports ACL, QinQ, QoS and static routing.

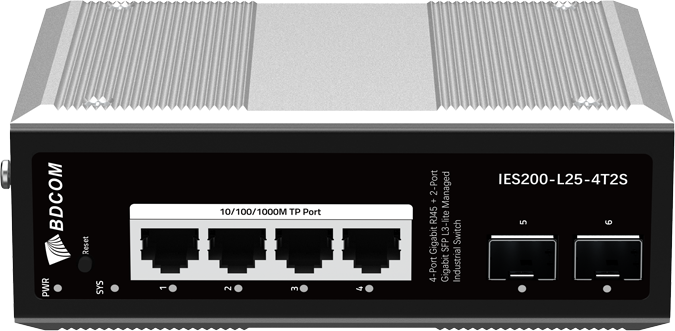

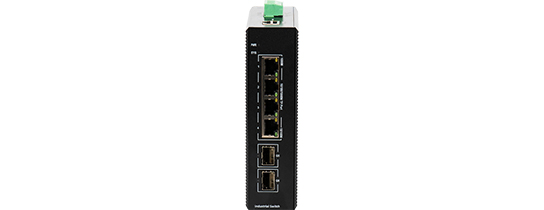

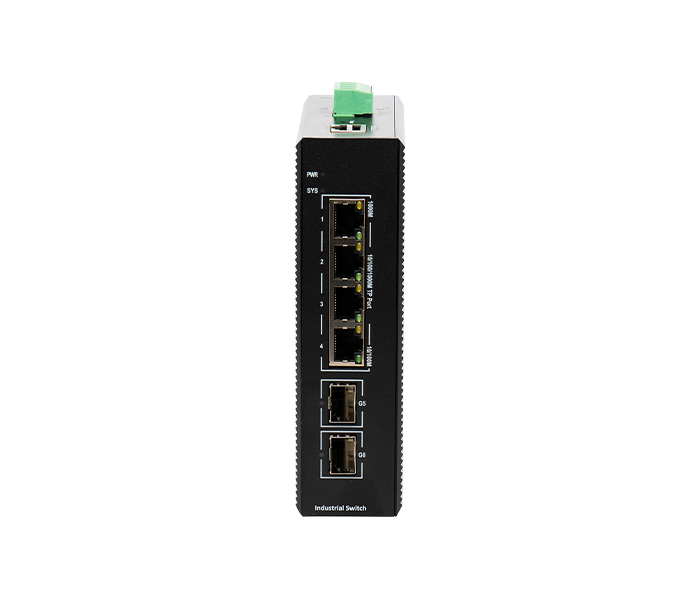

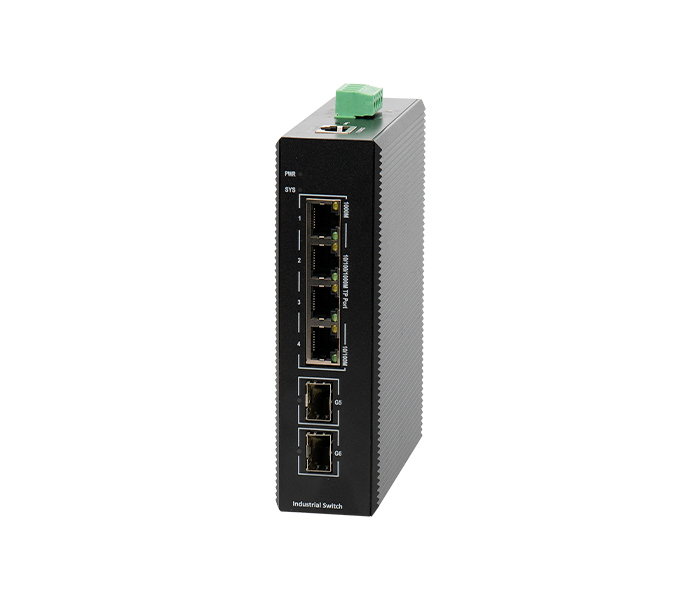

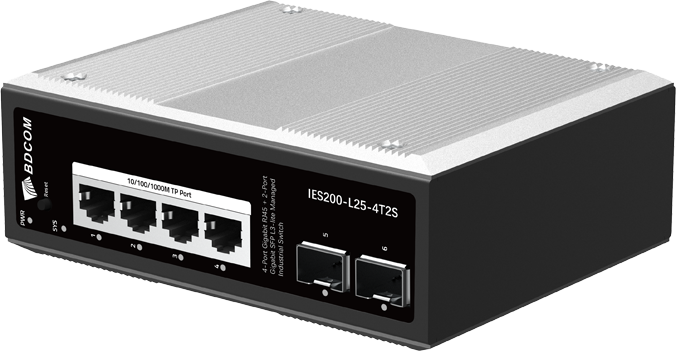

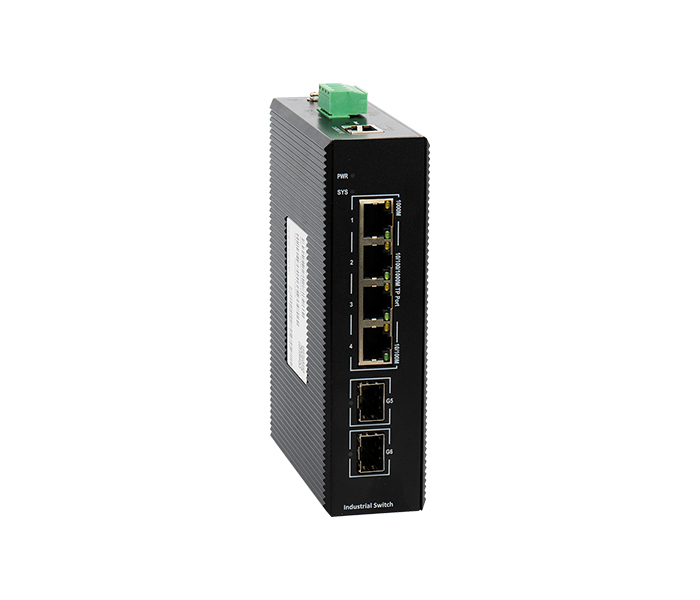

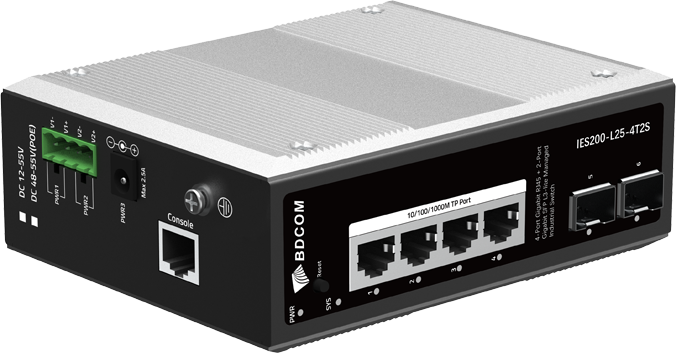

IES200-L25-4T2S

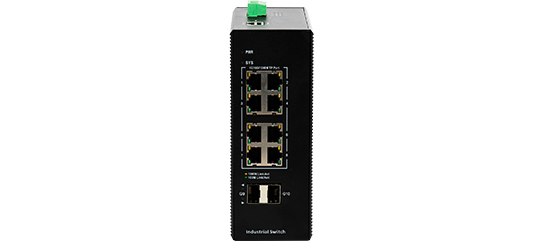

IES200-L25-8T2S

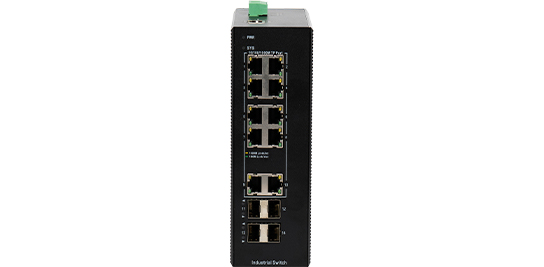

IES200-L25-8T4S

Highlight Features

The reliable industrial design of IES200-L25 series such as electromagnetic compatibility, anti-vibration and anti-shock capability, and IP40 protection, can be widely used in energy, transportation, industrial production, environmental protection, military industries.

consult

Typical Application

Technical Parameter

IES200-L25-4T2S IES200-L25-8T2S IES200-L25-8T4S
Gigabit Interface
RJ45 4
SFP 2
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 9
Chassis
Dimensions (WxDxH)(mm) 138x108x51
Weight (KG)(empty) 0.6
Package
Dimensions (WxDxH)(mm) 245x190x60
Weight(KG) 0.8
Power consumption
no-load <12W
full-load 18W
Power supply Dual DC 12~55V (Pheonix)
DC 12V (Jack)
Total output BTU (1000BTU/H=293W) 61.43
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 8
SFP 2
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 15
Chassis
Dimensions (WxDxH)(mm) 138x108x51
Weight (KG)(empty) 0.6
Package
Dimensions (WxDxH)(mm) 245x190x60
Weight(KG) 0.8
Power consumption
no-load <12W
full-load 18W
Power supply Dual DC 12~55V (Pheonix)
DC 12V (Jack)
Total output BTU (1000BTU/H=293W) 61.43
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 8
SFP 4
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 18
Chassis
Dimensions (WxDxH)(mm) 164x107x51
Weight (KG)(empty) 0.6
Package
Dimensions (WxDxH)(mm) 245x190x60
Weight(KG) 0.8
Power consumption
no-load <12W
full-load 20W
Power supply Dual DC 12~55V (Pheonix)
DC 12V (Jack)
Total output BTU (1000BTU/H=293W) 68.26
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10

Features

VLAN

4K VLAN entries

GVRP

QinQ

Private VLAN

Voice VLAN

Ring protection

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

G.8032 ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP routing

Static route

RIP, OSPF

128 routing table

DHCP

DHCP Server/Client/Relay

DHCP Snooping

QoS

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS/

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security

Identification and filtering of L2/L3/L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+ authentication

Command line hierarchical protection

Reliability

Static/LACP LAG

Ethernet OAM

ISSU

Backuplink

VRRP

Management and maintenance

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote Network Monitoring (RMON )

Syslog

SPAN, RSPAN

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

VLAN ACL

L2~4 ACL

IPv4, IPv6 ACL

Ordering Information

IES200-L25 Series
IES200-L25-4T2S 4-Port Gigabit RJ45 + 2-Port Gigabit SFP L3-lite Managed Industrial Switch (dual 12~55V DC pheonix power input, single 12V DC jack power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
IES200-L25-8T2S 8-Port Gigabit RJ45 + 2-Port Gigabit SFP L2+ Managed Industrial Switch (DC 12~55V redundant dual power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
IES200-L25-8T4S 8-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Managed Industrial Switch (dual 12~55V DC pheonix power input, single 12V DC jack power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
