>Products>Industrial Switch

High-density L3-lite Industrial Managed Switch

IES200-L25 series, based on a new generation of high-performance hardware and BDROS platform of BDCOM's independent intellectual property rights, supports ACL, QinQ, QoS and static routing.

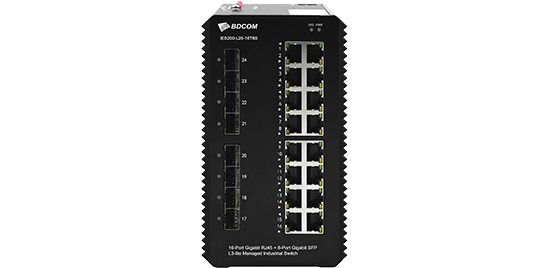

IES200-L25-16T8S
IES200-L25-24T4S

Highlight Features

Wide-range working temperature 800,000 hours MTBF

Advanced Hardware Architecture and Industry-leading Port Density

Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

IP40 protection 6KV lightning protection

consult

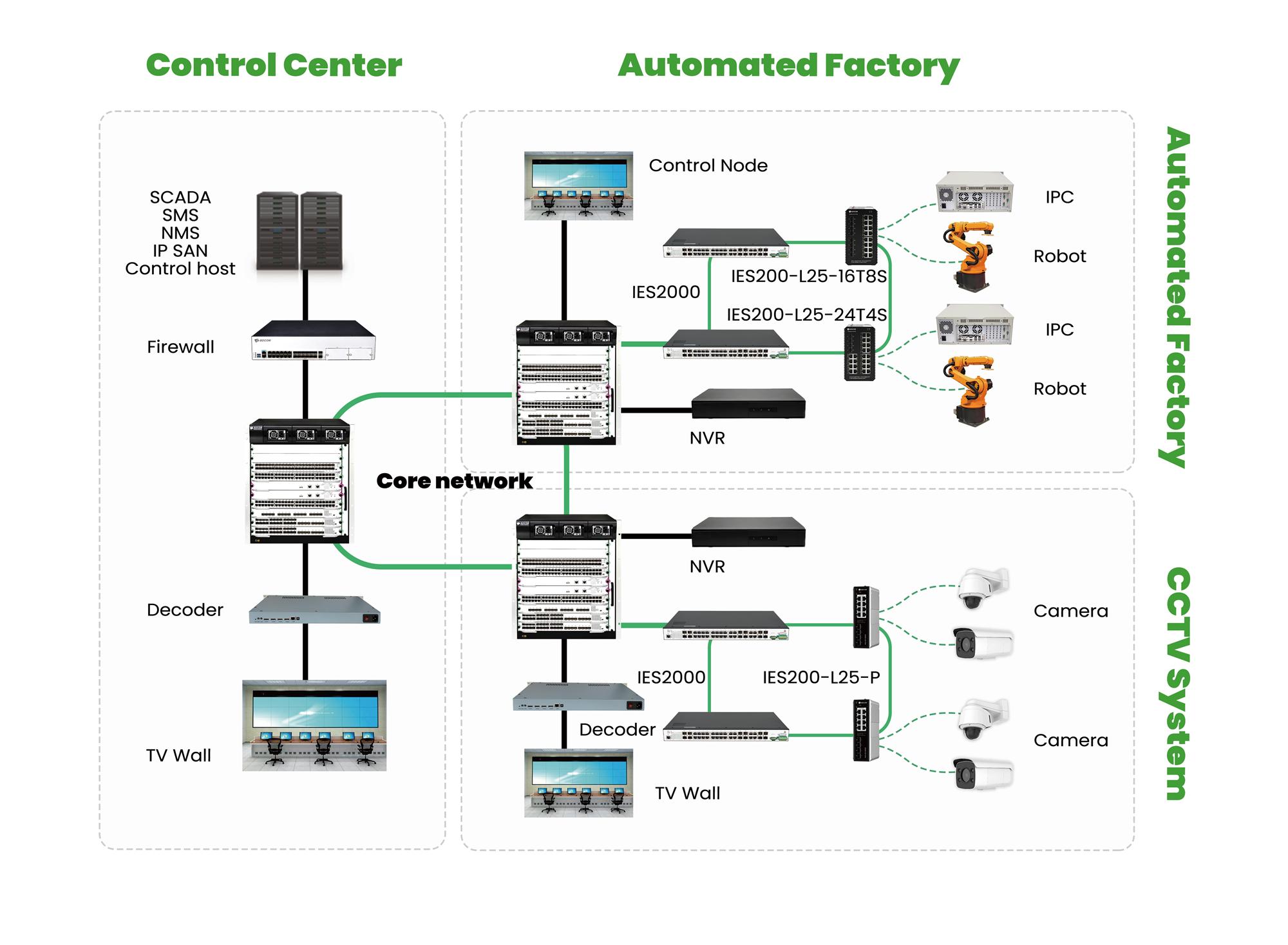

Typical Application

Technical Parameter

IES200-L25-16T8S IES200-L25-24T4S
Gigabit Interface
RJ45 16
SFP 8
Console 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 36
Chassis
Dimensions (WxDxH)(mm) 170x136x95
Weight (KG)(empty) 1.41
Package
Dimensions (WxDxH)(mm) 228*178*120
Weight(KG) 1.71
Power consumption
no-load <12W
full-load(with POE) 22W
Power supply Dual DC 12~55V (Pheonix)
1 Relay-alarm
Total output BTU (1000BTU/H=293W) 75.09
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(MB) 0.5
Jumbo frame 9K
Total SVI 10
Gigabit Interface
RJ45 24
SFP 4
Console 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 42
Chassis
Dimensions (WxDxH)(mm) 170x136x95
Weight (KG)(empty) 1.42
Package
Dimensions (WxDxH)(mm) 228*178*120
Weight(KG) 1.72
Power consumption
no-load < 12W
full-load(with POE) 14W
Power supply Dual DC 12~55V (Pheonix)
1 Relay-alarm
Total output BTU (1000BTU/H=293W) 47.78
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(MB) 0.5
Jumbo frame 9K
Total SVI 10

Features

VLAN

· 4K VLAN entries

· GVRP

· QinQ

· Private VLAN

· Voice VLAN

Ring protection

· 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

· BPDU protection, root protection and ring protection

· EAPS

· G.8032 ERPS

Multicast

· MVR

· IGMP Snooping

· IGMP Fast Leave

· Multicast group policy and multicast number limit

IP routing

· Static route

· RIP, OSPF

· 128 routing table

QoS

· CAR traffic control

· 802.1P/DSCP priority remark

· Multiple queuing algorithms such as SP, WRR or SP+WRR

· IP ACL/ANY/VLAN/COS/

· DSCP/IP Preference based QoS

· Traffic supervision and traffic shaping

· Drop,Redirect

Security

· Identification and filtering of L2/L3/ L4-based ACL

· Suppression of broadcast, multicast and unknown unicast packet

· Port isolation

· Port security, IP+MAC+port binding

· DHCP sooping, DHCP option82

· IEEE 802.1x authentication

· Radius and TACACS+

· Command line hierarchical protection

DHCP

· DHCP Server/Client/Relay

· DHCP Snooping

Reliability

· Static/LACP LAG

· Ethernet OAM

· ISSU

· Backuplink

Management and maintenance

· Console, Telnet, SSH 2.0

· Zero Touch Provisioning (ZTP)

· HTTP/HTTPS

· SNMP v1/v2/v3

· Upload and download files through TFTP/FTP

· Remote Network Monitoring (RMON )

· Syslog

· SPAN, RSPAN

IPv6

· ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

· IPv6 Neighbor Discovery

· Path MTU Discovery

· MLD Snooping

ACL

· L2/L3/L4 ACL

· IPv4, IPv6 ACL

· VLAN ACL

Ordering Information

IES200-L25 Series

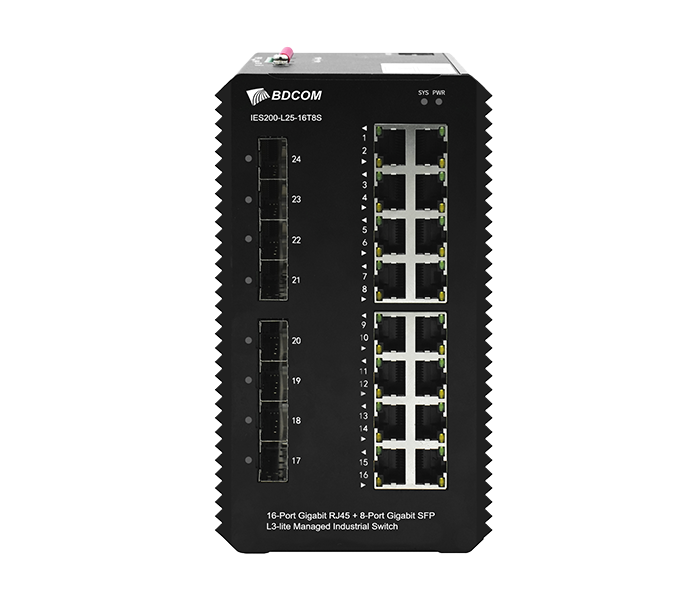

IES200-L25-16T8S 16-Port Gigabit RJ45 + 8-Port Gigabit SFP L3-lite Managed Industrial Switch (dual 12~55VDC pheonix power input, 1 Relay-alarm; operating temperature: -40~85° C; lightning protection level of 6KV; IP40; DIN-rail installation)

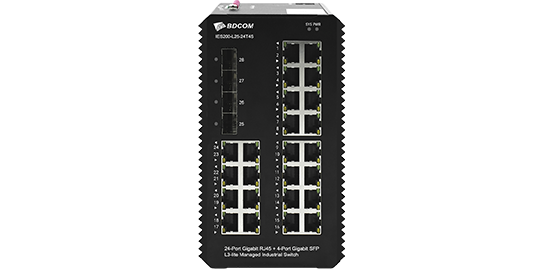

IES200-L25-24T4S 24-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Managed Industrial Switch (dual 12~55VDC pheonix power input, 1 Relay-alarm; operating temperature: -40~85° C; lightning protection level of 6KV; IP40; DIN-rail installation)
