>Products>Industrial Switch

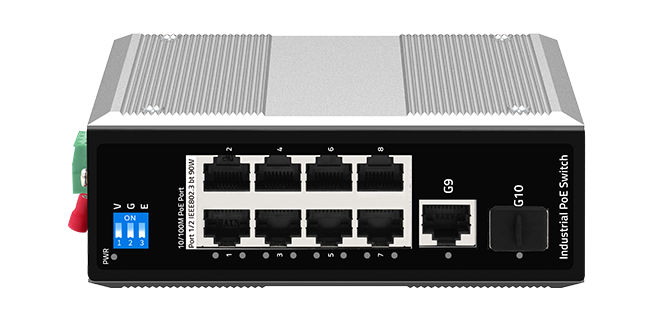

Unmanaged Industrial PoE Switch

IES200-LS-P is an unmanaged industrial PoE switch engineered for harsh environments. Its industrial-grade design delivers strong EMC performance and resistance to vibration and shock, while the IP40-rated metal enclosure ensures long-term, stable operation. It offers dual uplinks, including fiber options for long-distance outdoor networking. The standard DIN-rail enclosure enables plug-and-play installation for easy integration into a wide range of industrial communication networking scenarios.

IES200-LS1108P

IES200-LS1140P

IES200-LS2040P

IES200-LS2080P

Wide-range working temperature 800,000 hours MTBF

Aluminum corrugated rapid heat dissipation Casing

Triple power redundant input design

IP40 protection 6KV lightning protection

consult

Technical Parameter

IES200-LS1108P IES200-LS1140P IES200-LS2040P IES200-LS2080P

Port
Downlink	8-Port 100M PoE
Uplink	1-Port Gigabit RJ45 1-Port Gigabit SFP
Switching capacity	5.6Gbps
Packet Forwarding Rate	4.166Mpps
Packet Buffer	1Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	138×108×51
Weight(kg)	0.83
Package
Dimensions (WxDxH)(mm)	245×190×60
Weight(kg)	0.97
Power input	DC: 48~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Extend, VLAN, PoE watchdog
PoE
Standard	802.3af/at/bt
PoE++	Port1-2:90W
PoE+/PoE	Port1-8:<30W
Budget	240W

Port
Downlink	4-Port Gigabit PoE
Uplink	1-Port Gigabit RJ45 1-Port Gigabit SFP
Switching capacity	12Gbps
Packet Forwarding Rate	8.928Mpps
Packet Buffer	1Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	120×87×34
Weight(kg)	0.52
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.63
Power input	DC: 48~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Extend, VLAN, PoE watchdog
PoE
Standard	802.3af/at/bt
PoE++	Port1:90W
PoE+/PoE	Port1-4:<30W
Budget	180W

Port
Downlink	4-Port Gigabit PoE
Uplink	2-Port Gigabit SFP
Switching capacity	12Gbps
Packet Forwarding Rate	8.928Mpps
Packet Buffer	1Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	120×87×34
Weight(kg)	0.38
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.48
Power input	DC: 48~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Extend, VLAN, PoE watchdog
PoE
Standard	802.3af/at
PoE++	/
PoE+/PoE	Port1-4:<30W
Budget	120W

Port
Downlink	8-Port Gigabit PoE
Uplink	2-Port Gigabit SFP
Switching capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	4Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	138×108×51
Weight(kg)	0.71
Package
Dimensions (WxDxH)(mm)	245×190×70
Weight(kg)	0.92
Power input	DC: 48~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Extend, Fast ring, /
PoE
Standard	802.3af/at/bt
PoE++	Port1:60W
PoE+/PoE	Port1-8:<30W
Budget	200W@60°C; 120W@75°C

Features

Ordering Information

IES200-LS-P Series Industrial PoE Switch
IES200-LS1108P	2-Port 100M PoE++ 6-Port 100M PoE+ 1-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged Industrial PoE Switch, 48–55V DC power input (dual phoenix terminal and single DC2.1 jack), 240W PoE budget, -40°C~75°C; DIN-rail, IP40, power cord not included.
IES200-LS1140P	1-Port Gigabit PoE++ 3-Port Gigabit PoE+ 1-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged Industrial PoE Switch, 48–55V DC power input (dual phoenix terminal and single DC2.1 jack), 180W PoE budget, -40°C~75°C; DIN-rail, IP40, power cord not included.
IES200-LS2040P	1-Port Gigabit PoE++ 3-Port Gigabit PoE+ 2-Port Gigabit SFP Unmanaged Industrial PoE Switch,48–55V DC power input (dual phoenix terminal and single DC2.1 jack), 120W PoE budget, -40°C~75°C; DIN-rail, IP40, power cord not included.
IES200-LS2080P	1-Port Gigabit PoE++ 7-Port Gigabit PoE + 2-Port Gigabit SFP Unmanaged Industrial PoE Switch, 48–55V DC power input (dual phoenix terminal and single DC2.1 jack), 200W@60°C,120W@75°C; -40°C~75°C; DIN-rail, IP40, power cord not included.
