>Products>Industrial Switch

Unmanaged Industrial Switch

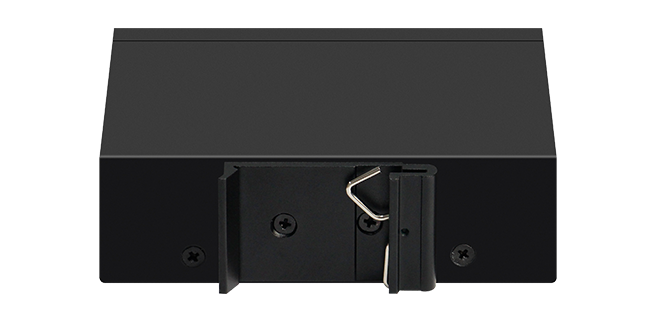

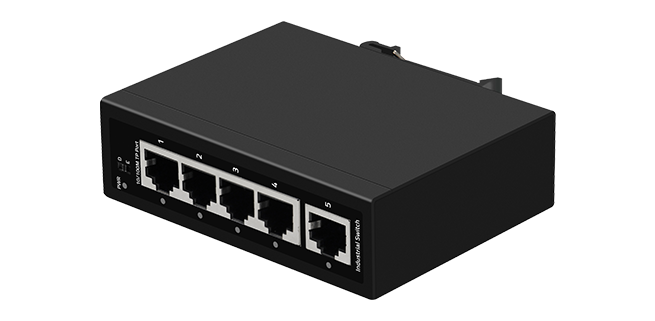

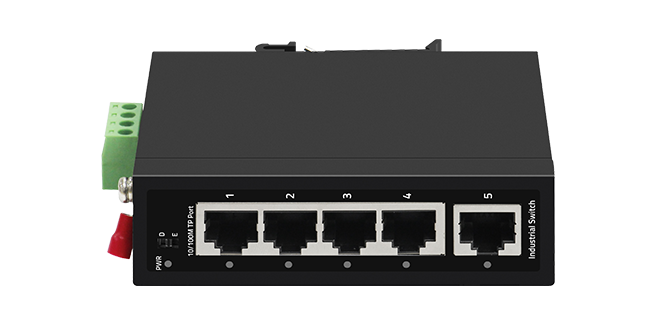

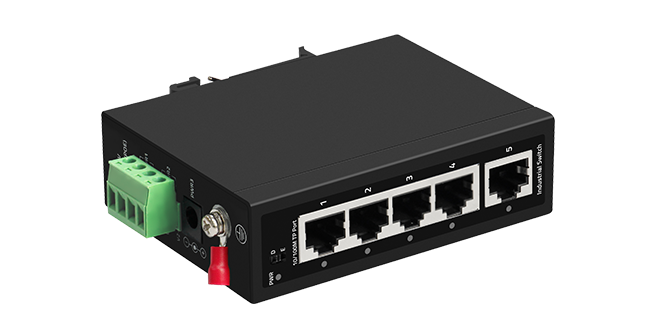

IES200-LS Series is an unmanaged industrial switch engineered for harsh environments. Its industrial-grade design delivers excellent EMC performance and resistance to vibration and shock, while the IP40-rated metal enclosure ensures long-term, stable operation. The standard DIN-rail enclosure supports plug-and-play installation, enabling easy integration into various industrial communication networking scenarios.

IES200-LS0005

IES200-LS0008

IES200-LS0050

IES200-LS0080

IES200-LS1108

IES200-LS1140

IES200-LS2040

IES200-LS2080

Wide-range working temperature 800,000 hours MTBF

Aluminum corrugated rapid heat dissipation Casing

Triple power redundant input design

IP40 protection 6KV lightning protection

consult

Technical Parameter

IES200-LS0005 IES200-LS0008 IES200-LS0050 IES200-LS0080 IES200-LS1108 IES200-LS1140 IES200-LS2040 IES200-LS2080

Port
Downlink	4-Port 100M RJ45
Uplink	1-Port 100M RJ45
Switching capacity	1Gbps
Packet Forwarding Rate	0.744Mpps
Packet Buffer	448K
MAC capacity	1K
Chassis
Dimensions (WxDxH)(mm)	100×76.5×30
Weight(kg)	0.27
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.36
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~90% non-condensing
Working mode	Default, Extend

Port
Downlink	8-Port 100M RJ45
Uplink	/
Switching capacity	1.6Gbps
Packet Forwarding Rate	1.19Mpps
Packet Buffer	768Kbit
MAC capacity	1K
Chassis
Dimensions (WxDxH)(mm)	100×76.5×30
Weight(kg)	0.28
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.37
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~90% non-condensing
Working mode	Default, Extend

Port
Downlink	4-Port Gigabit RJ45
Uplink	1-Port Gigabit RJ45
Switching capacity	10Gbps
Packet Forwarding Rate	7.44Mpps
Packet Buffer	3Mbit
MAC capacity	2K
Chassis
Dimensions (WxDxH)(mm)	100×76.5×30
Weight(kg)	0.27
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.36
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Extend

Port
Downlink	8-Port Gigabit RJ45
Uplink	/
Switching capacity	16Gbps
Packet Forwarding Rate	11.9Mpps
Packet Buffer	4Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	100×76.5×30
Weight(kg)	0.28
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.37
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~90% non-condensing
Working mode	Default, Extend

Port
Downlink	8-Port 100M RJ45
Uplink	1-Port Gigabit RJ45 1-Port Gigabit SFP
Switching capacity	5.6Gbps
Packet Forwarding Rate	4.166Mpps
Packet Buffer	4Mbit
MAC capacity	8K
Chassis
Dimensions (WxDxH)(mm)	138×108×51
Weight(kg)	0.76
Package
Dimensions (WxDxH)(mm)	245×190×60
Weight(kg)	0.9
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, VLAN, Extend

Port
Downlink	4-Port Gigabit RJ45
Uplink	1-Port Gigabit RJ45 1-Port Gigabit SFP
Switching capacity	12Gbps
Packet Forwarding Rate	8.928Mpps
Packet Buffer	1Mbit
MAC capacity	2K
Chassis
Dimensions (WxDxH)(mm)	120×87×34
Weight(kg)	0.52
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.63
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, VLAN, Extend

Port
Downlink	4-Port Gigabit RJ45
Uplink	2-Port Gigabit SFP
Switching capacity	12Gbps
Packet Forwarding Rate	8.928Mpps
Packet Buffer	1Mbit
MAC capacity	2K
Chassis
Dimensions (WxDxH)(mm)	120×87×34
Weight(kg)	0.52
Package
Dimensions (WxDxH)(mm)	175×130×55
Weight(kg)	0.63
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, VLAN, Extend

Port
Downlink	8-Port Gigabit RJ45
Uplink	2-Port Gigabit SFP
Switching capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	1Mbit
MAC capacity	2K
Chassis
Dimensions (WxDxH)(mm)	138×108×51
Weight(kg)	0.71
Package
Dimensions (WxDxH)(mm)	245×190×70
Weight(kg)	0.92
Power input	DC: 12~55V
Operating temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Operating humidity	10%~90% non-condensing
Storage humidity	5%~95% non-condensing
Working mode	Default, Fast ring, Extend

Features

Ordering Information

IES200-LS Series Industrial Switch
IES200-LS0005	5-Port 100M RJ45 Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~ 75°C; DIN-rail installation, power cord not included.
IES200-LS0008	8-Port 100M RJ45 Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS0050	5-Port Gigabit RJ45 Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS0080	8-Port Gigabit RJ45 Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS1108	8-Port 100M RJ45+ 1-port Gigabit RJ45+ 1-port Gigabit SFP Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS1140	4-Port Gigabit RJ45+ 1-Port Gigabit RJ45+ 1-Port Gigabit SFP Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS2040	4-Port Gigabit RJ45+ 2-Port Gigabit SFP Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
IES200-LS2080	8-Port Gigabit RJ45+ 2-Port Gigabit SFP Unmanaged Industrial Switch, Industrial-grade 12–55V DC power input (dual pheonix terminal and single DC2.1 jack input), operating temperature -40°C~75°C; DIN-rail installation, power cord not included.
