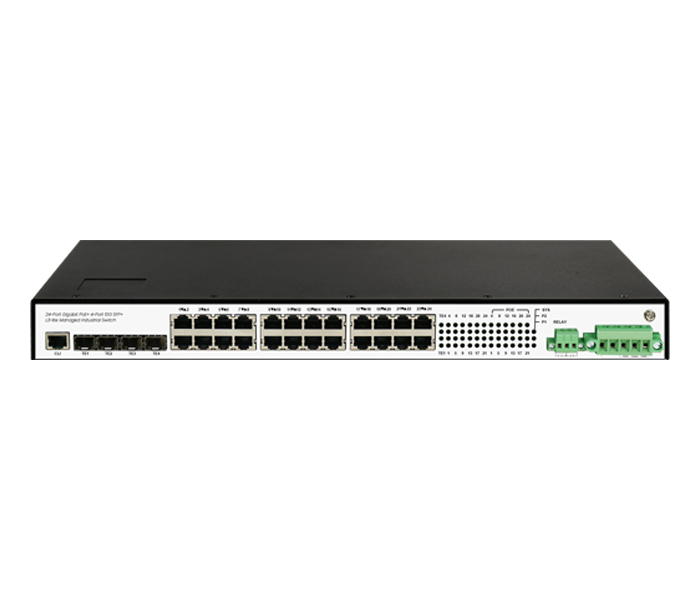

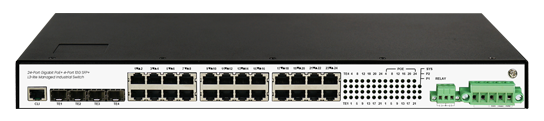

L3-lite Rack-mount Industrial PoE Switch

IEEE 802.1 Working Group

IEEE 802.3 Working Group

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3z Gigabit 1000BASE-SX/LX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3ae 10Gb/s Ethernet

IEEE 802.3af PoE

IEEE 802.3at PoE+

IEEE 802.3x flow control and back pressure

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

IEEE 802.1ad Q-in-Q

IEEE 802.1X port authentication network control

IEEE 802.1ab LLDP and LLDP-MED

IEEE 802.3ah OAM

IEEE 802.3az EEE( Energy Efficient Ethernet)

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

RFC 2710 MLD v1

RFC 2328 OSPF v2

RFC 1058 RIP v1

RFC 2453 RIP v2

ITU-T G.8032 ERPS

CLI: Console, Telnet, SSHv1/2

Web-GUI: HTTP, HTTPS/SSL

SNMP v1/v2c/v3, RMON, SNMP alarm/inform/traps

MIB-I, MIB-II

Upload and download of FTP/TFTP files

Debugging

Syslog for alarm/notification/command/debug

NTP-4

SPAN, RSPAN (1:1 and N:1 port mirror)

LLDP, LLDP-MED

ZTP (Zero Touch Provisioning)

Optical DDM

Ethernet cable diagnosis

Static configuration and dynamic MAC learning(16K)

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

Black-hole MAC list

4K VLAN IDs, 4094 active VLAN, 64 SVI

GVRP

1:1 and N:1 VLAN Mapping

QinQ and selective QinQ

Private VLAN

Voice-VLAN

Port-based VLAN

MAC-based VLAN

Protocol-based VLAN

802.1d STP, 802.1w RSTP, 802.1s MSTP

BPDU protection, root protection and ring protection

L2PT for BPDU

IGMP v1/v2/v3(1024 groups)

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

Multicast filtering

MVR

Support for transparent passing of multicast traffic without IGMP snooping in certain port and VLAN

Static routing, RIP, OSPF, VRRP

Static and LACP link aggregation, 64 groups, ups to 8 ports in one group

Load-balance based src-MAC/src-IP/dst-MAC/dst-IP/src-port/dst-port and any combination

EAPS, ERPS(recovery time≤50ms)

ERPS revertive and non-revertive operation mode

ISSU

Loopback-detection

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 QoS

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

RIPng, OSPFv3

DHCP server, client, relay, snooping

Traffic classification of port/L2~4 protocol headers/VLAN/CoS/ DSCP

CAR traffic control

802.1P/DSCP priority mapping and remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

Tail-Drop, WRED

Traffic supervision and traffic shaping

8 queues per port

Rate-limit based on MAC/IP/COS/DSCP/TOS/EXP/any

L2~L4 ingress/egress ACL (895 IPv4 FP, 384 IPv6 FP)

Anti-DOS/IP spoofing/TCP/ping/SYN/ICMP flood attacks

CPU protection

Broadcast/multicast/unknown-unicast storm-control

Port isolation

Port Security, MAC address limitation, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

DAI(Dynamic ARP Inspection)

IPSG(IP Source Guard)

PPPoE-IA(including hostname/port/vlan/switch-MAC/client-MAC/user-defined circuit-ID and client-MAC/switch-MAC/user-defined remote-ID)

IEEE 802.1x authentication

MAC-based authentication

AAA

Radius, TACACS+

Multiple user privileges
