Enterprise Intelligent Wireless AC

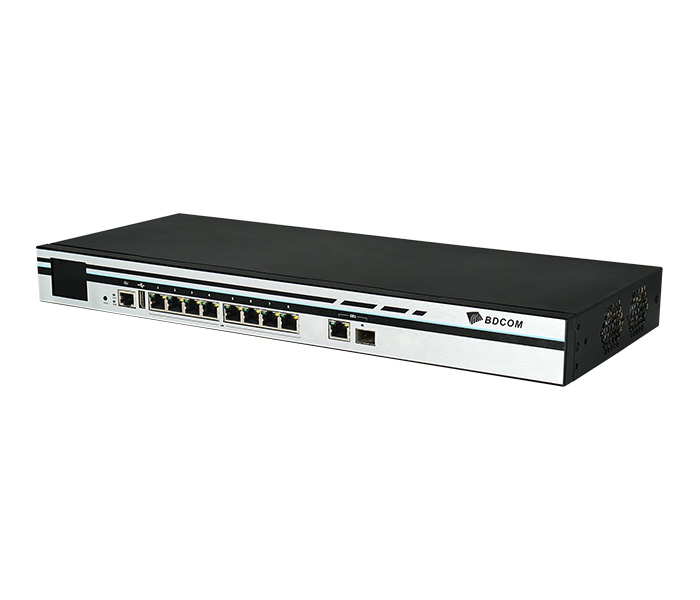

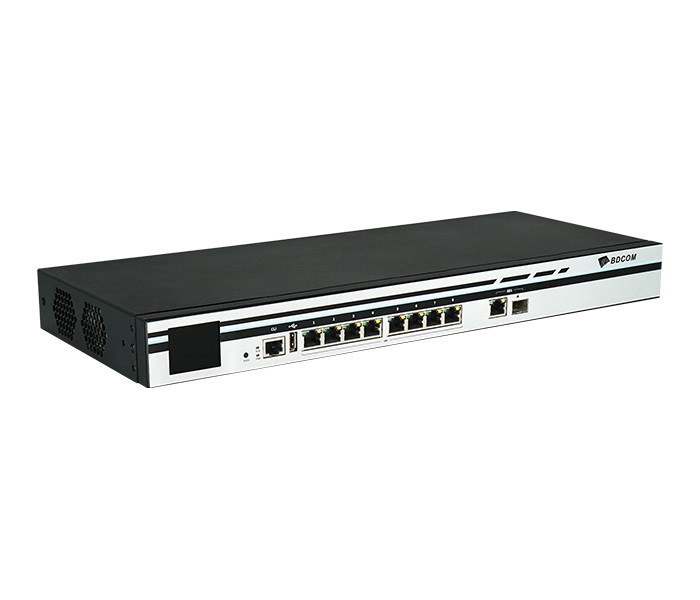

BDCOM WSC6100-NC Series is a wireless access controller with high performance and high reliability, which are invented by BDCOM on the basis of the multi-core hardware platform, and characteristic of versatile functions, various services and stability.

Highlight Features

Centralized and Secure Access of Wireless Networks

Seamless Roaming Characteristics

Centralized Wireless Network Management

All-round QoS Mechanism

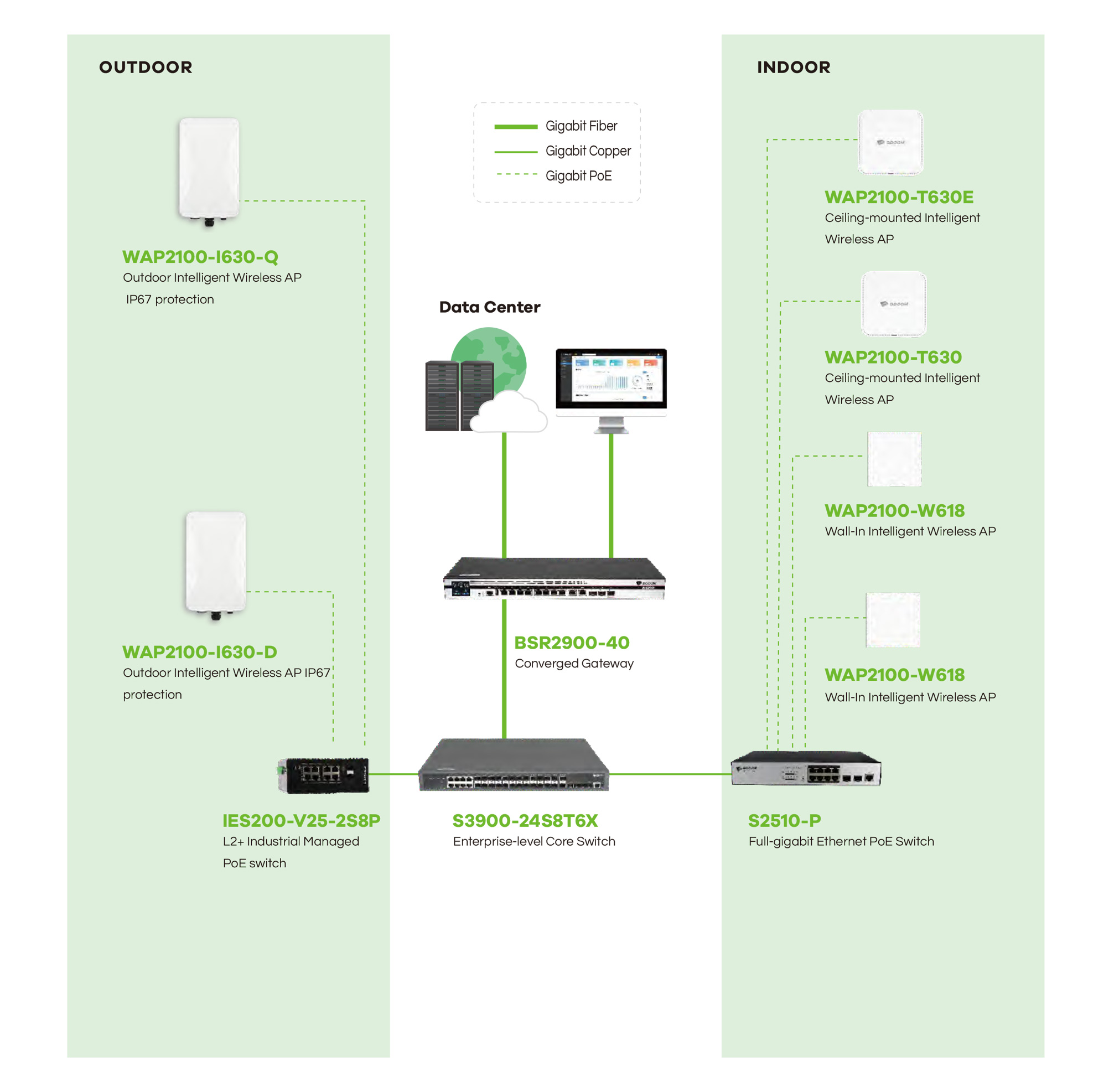

Typical Application

Technical Parameter

Port 1-Port Console(RJ45)
1-Port USB2.0
1-Port Gigabit RJ45/SFP combo WAN
8-Port Gigabit RJ45 LAN
Button Mode/Reset
User capacity 3K
AP capacity 128~256
Flash 4GB
DRAM 1GB
DHCP table 2K
ARP table 10K
VLAN 4K
Chassis
Size (WxDxH)(mm) 440×180×44
Weight(kg)(empty) 2.3
Package
Size (WxDxH)(mm) 500x320x80
Weight(kg) 3.3
Power supply AC 100~240V 50/60Hz
Consumption
No-load(W) 12
Full-load(W) 20
Working temperature 0 °C~50 °C
Operating humidity 10%~90%
(non condensing)
Port 1-Port Console(RJ45)
1-Port USB2.0
1-Port 10G SFP+ WAN
2-Port Gigabit RJ45 WAN
2-Port Gigabit SFP WAN
8-Port Gigabit RJ45 LAN
Button Mode/Reset
User capacity 25K
AP capacity 256~2048
Flash 16GB
DRAM 4GB
DHCP table 2K
ARP table 60K
VLAN 4K
Chassis
Size (WxDxH)(mm) 440×180×44
Weight(kg)(empty) 2.3
Package
Size (WxDxH)(mm) 500x320x80
Weight(kg) 3.3
Power supply AC 100~240V 50/60Hz
Consumption
No-load(W) 32
Full-load(W) 50
Working temperature 0 °C~50 °C
Operating humidity 10%~90%
(non condensing)

Features

IP protocol

Direct IP connection, static route

DHCP Server/Client/Relay

NTP Server

FTP Server

L2 or L3 forwarding between AC and external network

AC function

Switching load from troubled AC to another normal AC (The  switch over policy can be set)

Port redundancy: multi-port binding

Connecting AP/AC via L3 security tunnel

Centralized, distributive and hybrid exchanges of L2 services

Inner-AC or inter-AC roaming

Centralized forwarding

Forwarding all services after being centralized on AC

Distributive forwarding

Forwarding some AP or SSID services on a thin AP locally

RTLS

Standard

802.11 a/b/g/n/ac/ax

802.11g, 802.11d, 802.11h,

802.11i, 802.11e,

802.3, 802.3ab, 802.3u,

802.3x, 802.3z, ARP, Reverse ARP,

multi-LAN ARP/Proxy ARP

STP/802.1Q L2 forwarding

RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC768 UDP,

RFC854 Telnet, RFC1542 BOOTP,

RFC1191 Path MTU Discovery,

RF management

Automatic channel

Supports static channel configuration.

Supports automatic channel configuration when AP is powered.

Supports automatic channel configuration when AP is running.

Supports to set an automatic channel choice list.

Automatic transmitting power

Supports to set the static transmitting power.

Supports the automatic transmitting power for coverage remedy.

Supports the \STA-based automatic transmitting power to improve the throughput.

Automatic rate

Supports the STA-based automatic rate choice.

Supports to limit the maximum transmitting rate

AAA

RADIUS Client

Multi-domain configuration of the authentication server

Connection of active and standby authentication/charging servers

Isolation of the authentication server and the charging server

PPPoE authentication

Portal authentication

AAA accounting

Security

Open system

WEP

WPA/WPA2 PSK

802.1x

802.11i

WAPI

DDOS prevention

ACL

Wireless IPS/IDS

Illegal AP detection

Illegal terminal checkup

Isolation of users’ services

Whitelist

Static/dynamic blacklist

URL filter

Management

Supports Pallas cloud platform

Local interconnection based on WEB/SSH

Remote control via SNMP access

Uniform network management via OMC

SNMP v2/v3

MIB-II(RFC1213), which is based on TCP/IP Internet management base

RFC1537, which is a developing protocol of MIB-II

RFC1643

ISO/IEC 8802-11:1999,

IEEE802.11b

ISO/IEC 8802-11:1999/Amd 1:2000

MIB that is defined by IEEE 802.11g and IEEE 802.11i

QoS

User’s flow control

Supports the domain-based flow control (taking VLAN or SSID as the configuration domain).

Supports user-level flow control or flow control based on the contract information of the Radius server.

Service priority:

Supports 802.11e, which provides different services according to session’s priority.

Supports to map users’ QoS levels according to SSID.

Supports 802.1p and L2 packet’s priority mapping

Load balance and control:

Supports AP/AC interconnection based on priority and load.

Supports load balance between adjacent APs on the basis of user quantity and flow.

Ordering Information

WSC6100-NC Series
BDCOM WSC6100-NC128 BDCOM WSC6100-NC128 Intelligent AC Controller (1 CON, 1 GE-Combo, 8 GE-LAN, Maximum 128 APs, 220VAC power supply)
BDCOM WSC6100-NC256 BDCOM WSC6100-NC256 Intelligent AC Controller (1 CON, 1 10GE SFP+, 2 GE SFP, 2 GE TX, 8 GE-LAN, Maximum 256 APs, 220VAC power supply)
WSC6100-Lic-64 WSC6100-NC controller License, 64 AP capacity, support multiple order
WSC6100-Lic-256 WSC6100-NC controller License, 256 AP capacity,support multiple order
