XGS-PON SFU

BDCOM GP1802-3G1E Series SFU is an intelligent SFU terminal product developed by BDCOM for multiservice converged networks. It adheres to ITU-T standards G.987.3, G.988, and G.989, ensuring excellent interoperability and usability, allowing seamless interconnection and interoperability with OLT equipment from mainstream industry vendors.

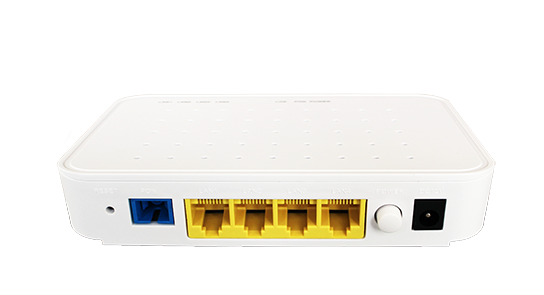

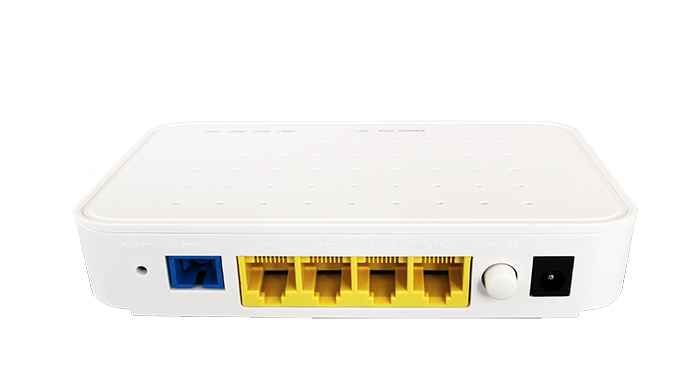

GP1802-3G1E

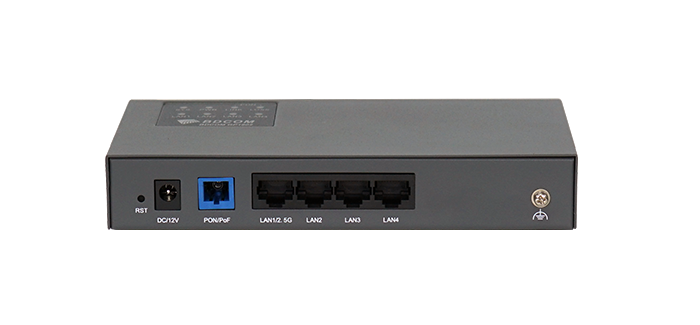

GP1802-3G1EM

Product Characteristics

Superior Access Performance

Secure Service Bearing Capability

Refined Service Control Capability

Rich Control Functions

Comprehensive Interconnection and Interoperability

Advanced Green Energy-saving Technology

consult

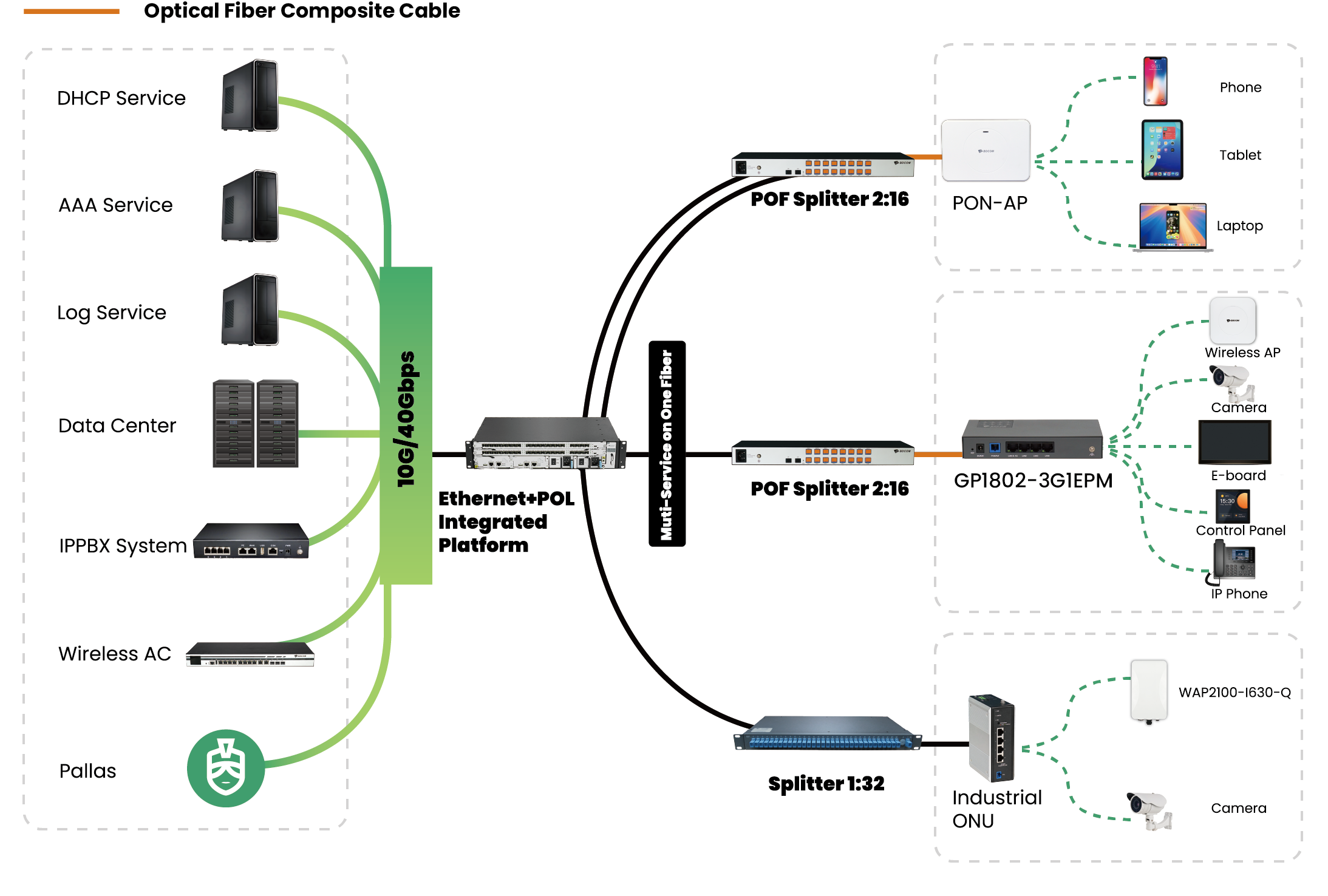

Application Topology

Technical Parameter

GP1802-3G1E GP1802-3G1EM
Gigabit RJ45 3
2.5G RJ45 1
POE N/A
Environment Input rated voltage: DC 12V/1.0A (powered by external adapter)
Operating environment: 0°C~45°C; 10%~90non-condensing
PON port Optical interface type: SC/UPC
Chassis Dimensions(WxDxH mm) 140×105×28.9
Chassis Weight(Kg)(empty) 0.177
Package Dimensions(WxDxH mm) 231×126×42
Package Weight(Kg) 0.32
Flash 128M
DDR 512M
Gigabit RJ45 3
2.5G RJ45 1
POE N/A
Environment Input rated voltage: DC 12V/1.0A (powered by external adapter)
Operating environment: 0°C~45°C; 10%~90non-condensing
PON port Optical interface type: SC/UPC Supports PoF (Powerover Fiber)
Chassis Weight(Kg)(empty) 0.443
Package Dimensions(WxDxH mm) 272×120×50
Package Weight(Kg) 0.57
Flash 128M
DDR 512M

Features

PON interface

Downlink 10Gbps / Uplink 10Gbps transmission rate

Network coverage radius: 20 kilometers

Receiver sensitivity: no more than -28dBm

Transmit optical power: 0.5~5dBm

Standards

ITU-T G.987.3, G.988, G.989

People's Republic of China Communication Industry Standard GB/T 43699-2024 "Access Network Technical Requirements for 10Gbit/s Symmetrical Passive

Optical Network (XGS-PON)"

IEEE 802.1Q, VLAN

Multicast

Supports IGMP-Snooping

Supports CTC-defined dynamic multicast function

Supports MLD-Snooping

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full-duplex)

Head of Line blocking prevention mechanism

IEEE 802.1p, CoS

8 priority queues per port

WR, SP, and FIFO queue scheduling algorithms

Port rate limiting

Reliability

Supports Loopdetect

Supports Dying-Gasp

Supports Type B dual-homing protection

Network Security

Port protection

Firewall MAC/IP/Port/URL/ Domain filtering

DDoS

Port storm suppression

Port mapping

Configuration Management

Multiple management methods including Web, TELNET, R069, OMCI, OAM, etc.

Software upgrades via TFTP/ WEB/TR069/OLT

Heat dissipation

During long-term use (24 hours), the device's heat generation will not cause performance degradation or deformation/ damage of components

Ordering Information

BDCOM GP1802-3G1E Series
BDCOM GP1802-3G1E XGS-PON ONU, 1-Port XGS-PON (SC/UPC), 3-Port Gigabit RJ45, 1-Port 2.5G RJ45, plastic casing, DC12/1.0A external power adaptor
BDCOM GP1802-3G1EM XGS-PON ONU, 1-Port XGS-PON (SC/UPC, supports PoF power input), 3-Port Gigabit RJ45,1-Port 2.5G RJ45, metal casing, DC12/1.0A external power adaptor
