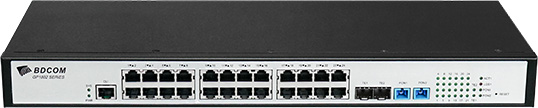

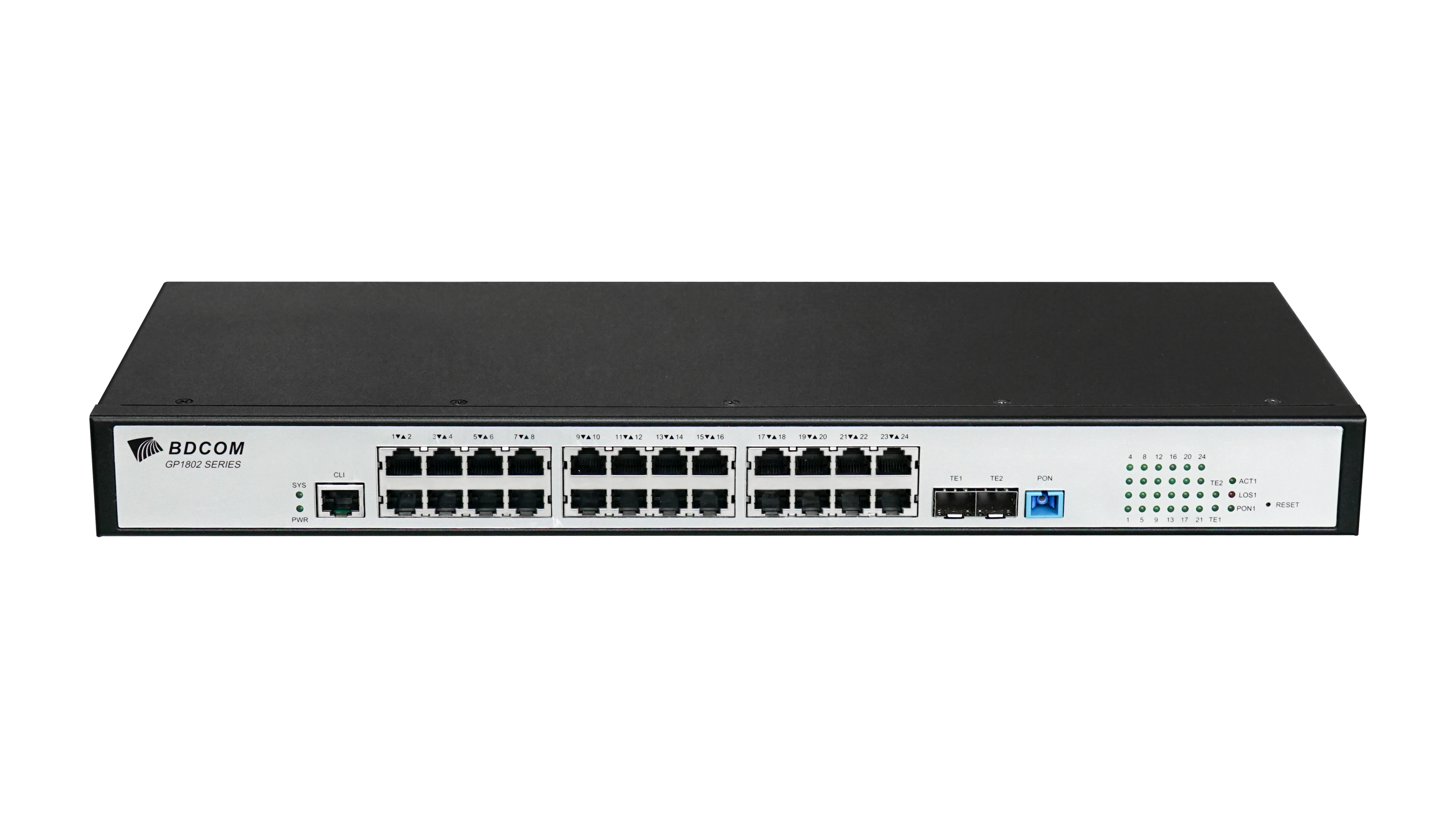

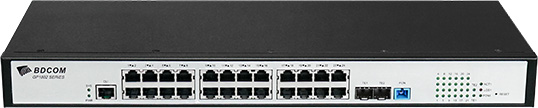

XGS-PON MDU(Multi-Dwelling Unit)

· Downlink 10Gbps / Uplink 10Gbps transmission rate

· Network coverage radius: 20 kilometers

· Receiver sensitivity: no more than -28dBm

· Transmit optical power: 0.5~5dBm

· ITU-T G.987.3, G.988, G.989

· People's Republic of China Communication Industry Standard GB/T 43699-2024 "Access Network Technical Requirements for 10Gbit/s Symmetrical Passive Optical Network (XGS-PON)"

· IEEE 802.1Q, VLAN

· Supports IGMP-Snooping

· Supports CTC-defined dynamic multicast function

· Supports MLD-Snooping

· Backpressure flow control(half-duplex)

· IEEE 802.3x flow control(full-duplex)

· Head of Line blocking prevention mechanism

· IEEE 802.1p, CoS

· 8 priority queues per port

· WR, SP, and FIFO queue scheduling algorithms

· Port rate limiting

· Supports Loopdetect

· Supports Dying-Gasp

· Supports Type B dual-homing protection

· Port protection

· Firewall MAC/IP/Port/URL/Domain filtering

· DDoS

· Port storm suppression

· Port mapping

· Multiple management methods including Web, TELNET, R069,OMCI, OAM, etc.

· Software upgrades via TFTP/WEB/TR069/OLT

During long-term use (24 hours), the device's heat generation will not cause performance degradation or deformation/damage of components
