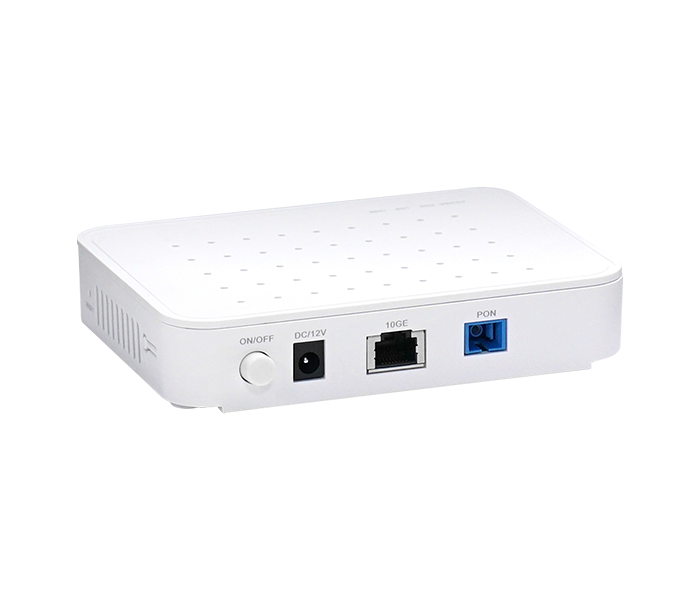

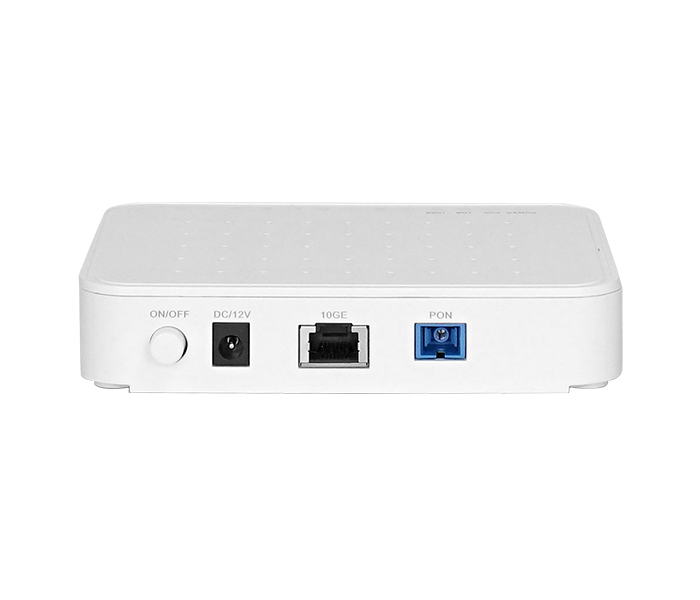

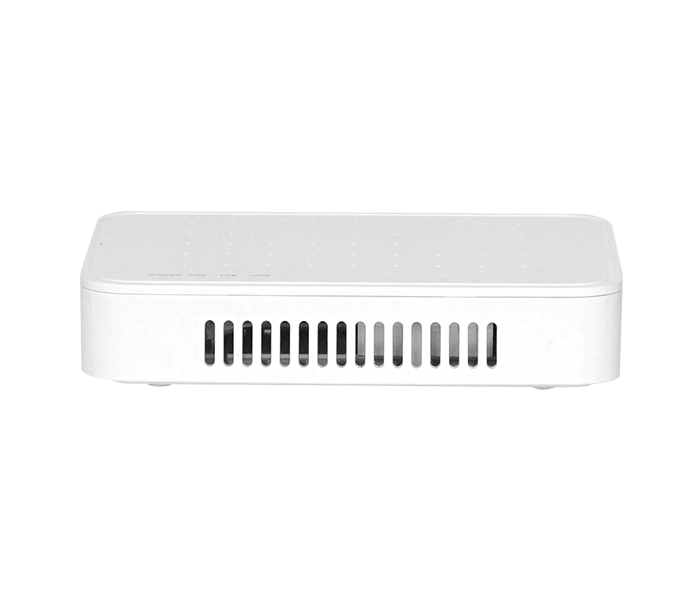

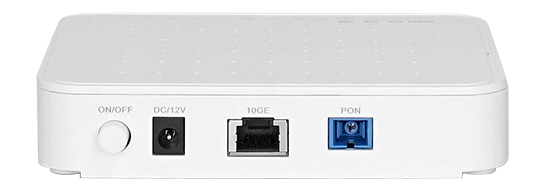

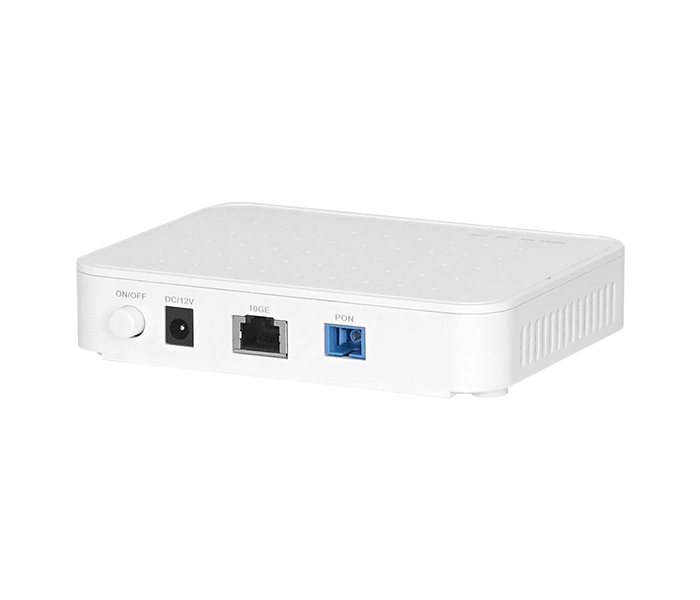

XGS-PON 10G ONU

Downlink 10Gbps / Uplink 10Gbps transmission rate

Network coverage radius: 20 km

Receiver sensitivity: ≤ -28dBm

Transmitter optical power: 0.5~5dBm

Optical interface type: SC/UPC

ITU-T G.987.3, G.988, G.989

GB/T 43699-2024 "Access Network Technical Requirements for 10Gbit/s

Symmetrical Passive Optical Network (XGS-PON)"

IEEE 802.1Q, VLAN

IGMP-Snooping, IGPM Proxy

MLD-Snooping, MLD Proxy

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full-duplex)

Head of Line (HOL) blocking prevention

IEEE 802.1p, CoS

8 priority queues per port

WR, SP, and FIFO queue scheduling algorithms

Port rate limiting

Supports Loop-detect function

Supports Dying-Gasp function

Supports Type B dual-homing protection

Supports port protection

Firewall with MAC/IP/Port/URL/domain name filtering

DDoS protection

Supports port storm suppression

Port mapping

Multiple management methods: Web, Telnet, TR069, OMCI, OAM, etc.

Software upgrades via TFTP/WEB/TR069/OLT

Continuous operation (24 hours)  without performance degradation or component damage due to heat.

Operating temperature/humidity: 0℃ ~45℃ ; 10%~90%  non-condensing

Input rated voltage: DC 12V/1.0A (powered by external adapter)
