>Products>Router>Converged Gateway

Multi-service Converged Gateway

BDCOM BIG2000-530 is a multi - service con-verged gateway product specially designed and developed by BDCOM after in-depth research on the Internet access needs of typical ICT sce-narios such as enterprises, parks, hotels, schools, hospitals, and chains.

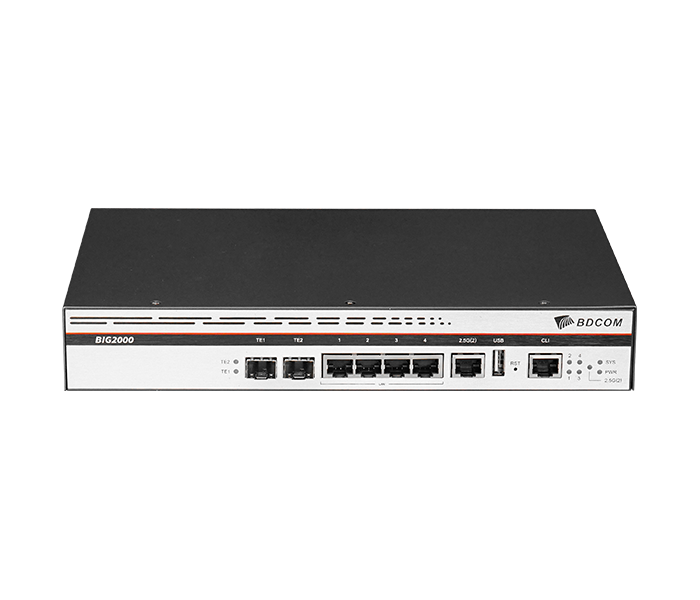

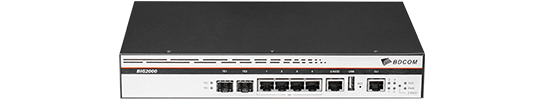

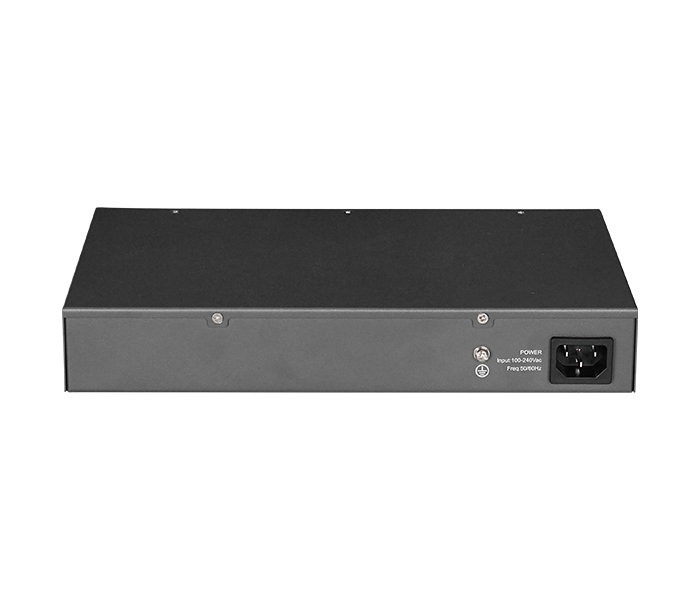

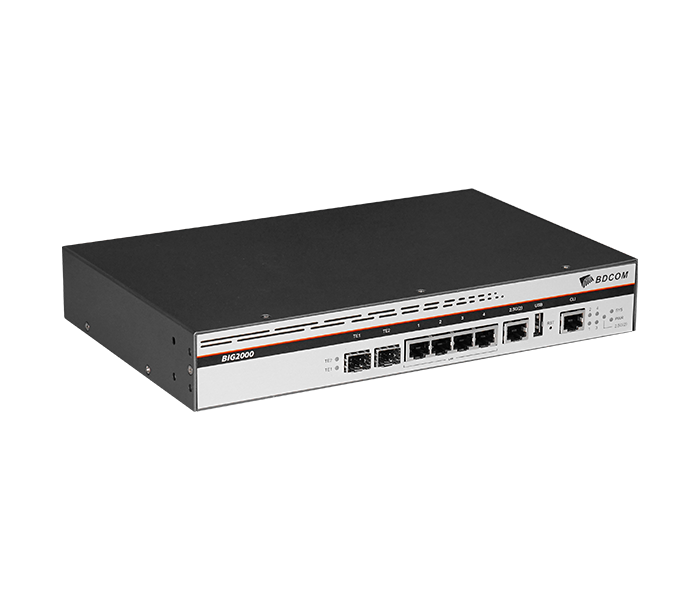

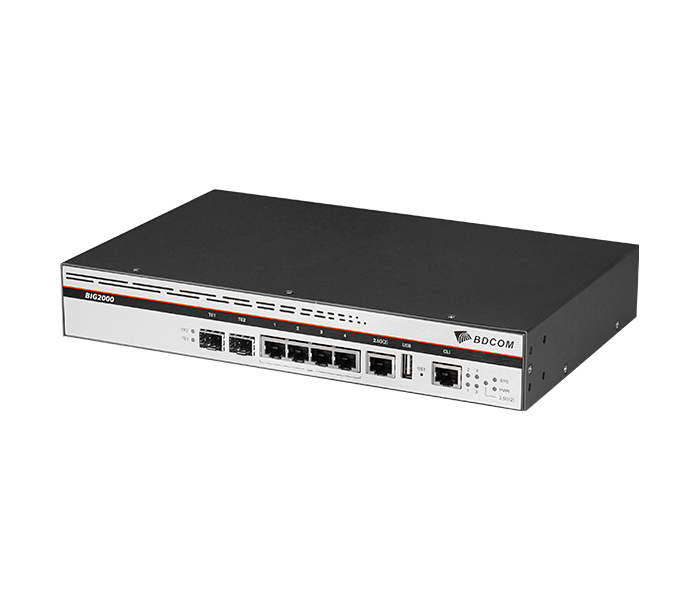

BIG2000-530

Multi-giga WAN capacity

Routing+Switching+AC+Firewall All-in-one

Carrier-Level High Reliability Layer-3 Routing Functions

Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

consult

Typical Application

Technical Parameter

BIG2000-530

Management	1 Console 1 USB2.0
Ports	1-Port 10G SFP+ 1-Port 10G SFP+/2.5G RJ45 combo WAN 4-Port Gigabit RJ45 LAN
Button	1 Reset button
CPU	Quad-core ARM
Memory	2GB DDR4
FLASH	4MB NOR + 8GB EMMC
Recommended capacity	500-1000 users
Wireless AP	128 APs capacity
Input Power	AC 100-240V, 50/60Hz
Device size	280 × 180 × 44mm
Operating temperature	0~45 ℃
Operating humidity	5%~95% (non-condensing)

Features

WAN Capabilities

Supports static IP, DHCP and PPPoE

Supports multi-line WAN access

Supports intelligent load- balance based on equivalent routing, weight, etc.

NAT

Supports NAT/PAT address translation based on IP, port and address pool

Supports ALG and DMZ functions

Supports global and per-IP connection limits

Traffic Shape

Supports flow classification based on IP, UDP/TCP ports and QoS queue scheduling function

Supports flexible bandwidth control strategies based on user groups and time periods

Supports blacklist and whitelist functions

IPv4 Routing

Supports static routing and default routing

Supports PBR policy routing

Supports dynamic routing protocols such as RIP, OSPF, BGP, ISIS, etc.

Supports floating routing backup, Keepalive, BFD and other remote detection functions

IPv6 Routing

Supports IPv6/v4 dual stack

Supports V4/V6 tunnel and translation technology

Supports IPv6 routing protocols such as RIPng, OSPFv3, BGP+, etc.

Multicast: Supports IGMP, SM/SSM, MLD and other multicast routing protocols

Security

Supports IP, MAC ACL and firewall security policies

Supports various VPN protocols such as L2TP/PPTP, IPSec, GRE, etc.

Support ARP Scan, DHCP Snooping and other ARP anti-spoofing functions

Support Anti-Flood, Ping of Death, Tear-drop, WinNuke, Smurf and other attack protection

IP Services

Supports DHCP server, relay and client

Supports Option43, 60, 82, etc.

Supports DNS and DDNS

Supports SNTP and NTP

Supports FTP and TFTP

Converged Functions

Built-in wireless controller function

Supports wireless AP management

Supports seamless roaming

Built-in Portal server

Supports authentication functions based on SMS, card coupons, Radius, etc.

Supports Internet behavior management, allowing users to block common apps and applications with one click

Supports Layer 2 and Layer 3 switching, 802.3 protocol, 802.1Q VLAN, Rate-limit, etc.

Maintenance

Supports WebGUI management and quick start wizard

Supports efficient command line configuration tools such as CLI, Telnet, SSH, etc.

Supports network management protocols such as SNMP and MQTT

Supports BDCOM Pallas cloud management to achieve device management, topology discovery, log alarm and other operation and maintenance capabilities

Ordering Information

BDCOM BIG2000-530
BIG2000-530	BIG2000-530 Converged Gateway (1 Console, 1 USB 2.0, 1-Port 10G SFP+ 1-Port 10G SFP+/2.5G RJ45 combo WAN, 4-Port Gigabit RJ45 LAN; supports 128 AP management; AC-220V power supply)
