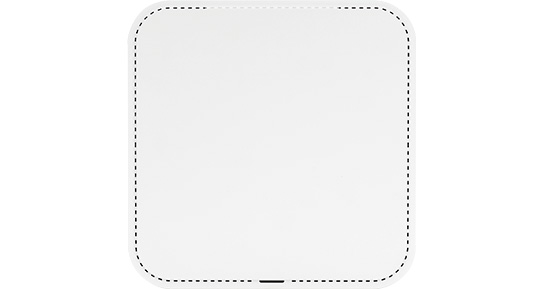

Ceiling-mounted 3000M WiFi6 AP Series

BDCOM WAP2100-T Series is the BDCOM-developed WiFi6 ceiling-mounted wireless AP oriented for high-density wireless scenarios such as enterprises, campus, hospitals, governments, hotels, and smart buildings.

WAP2100-T630
WAP2100-T630E

Highlight Features

High-performance Wireless Solutions

Powerful Automatic Network Optimization

Comprehensive Security Features

consult

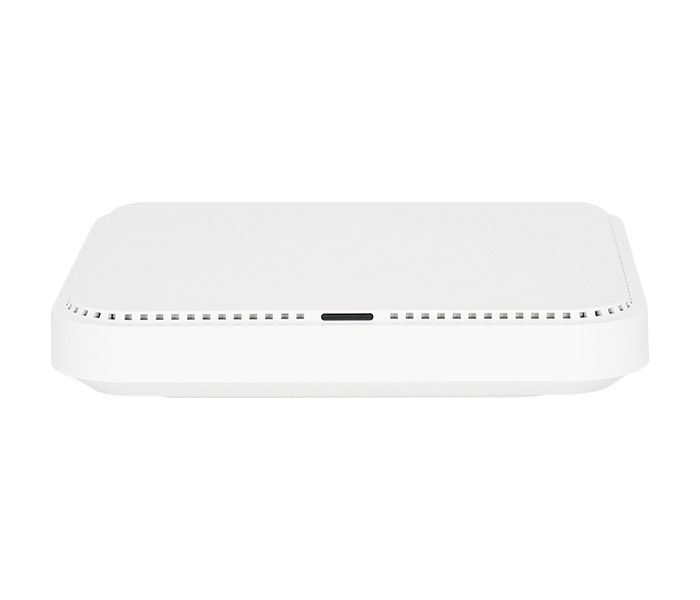

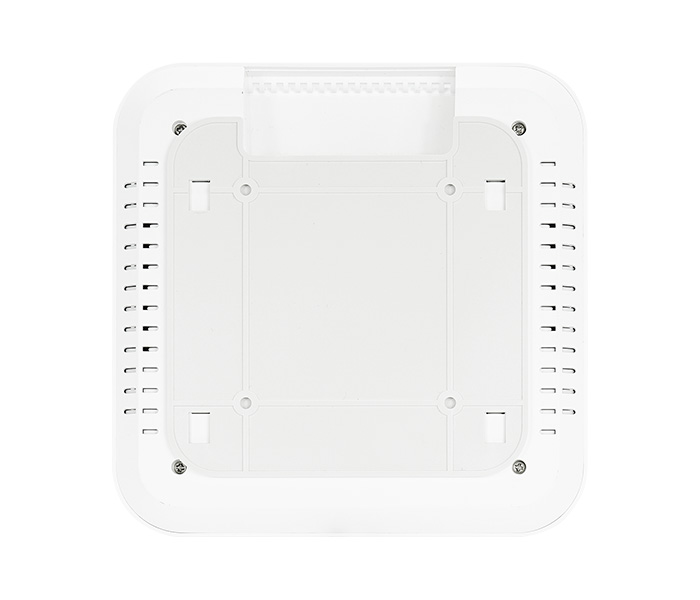

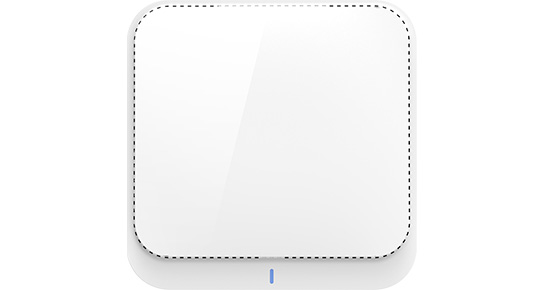

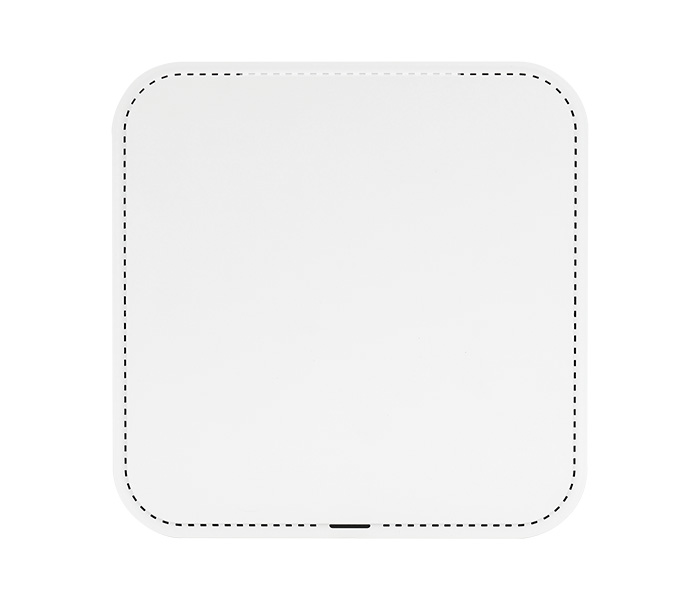

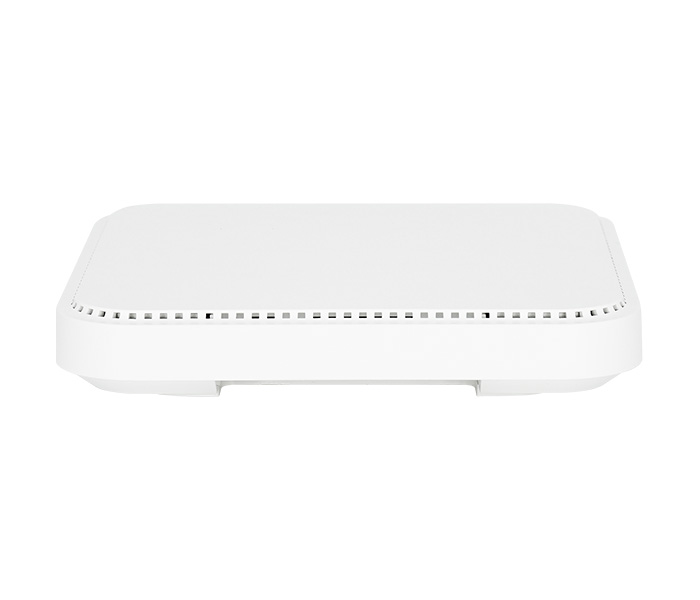

Ceiling-mounted/desktop Intelligent AP

WAP2100-T Series is designed with high-performance RF chip solution, with high throughput and strong concurrent access capability.
WAP2100-T Series stands out with the builtin omnidirectional MIMO high-power antenna to meet the wireless coverage to the greatest extent.

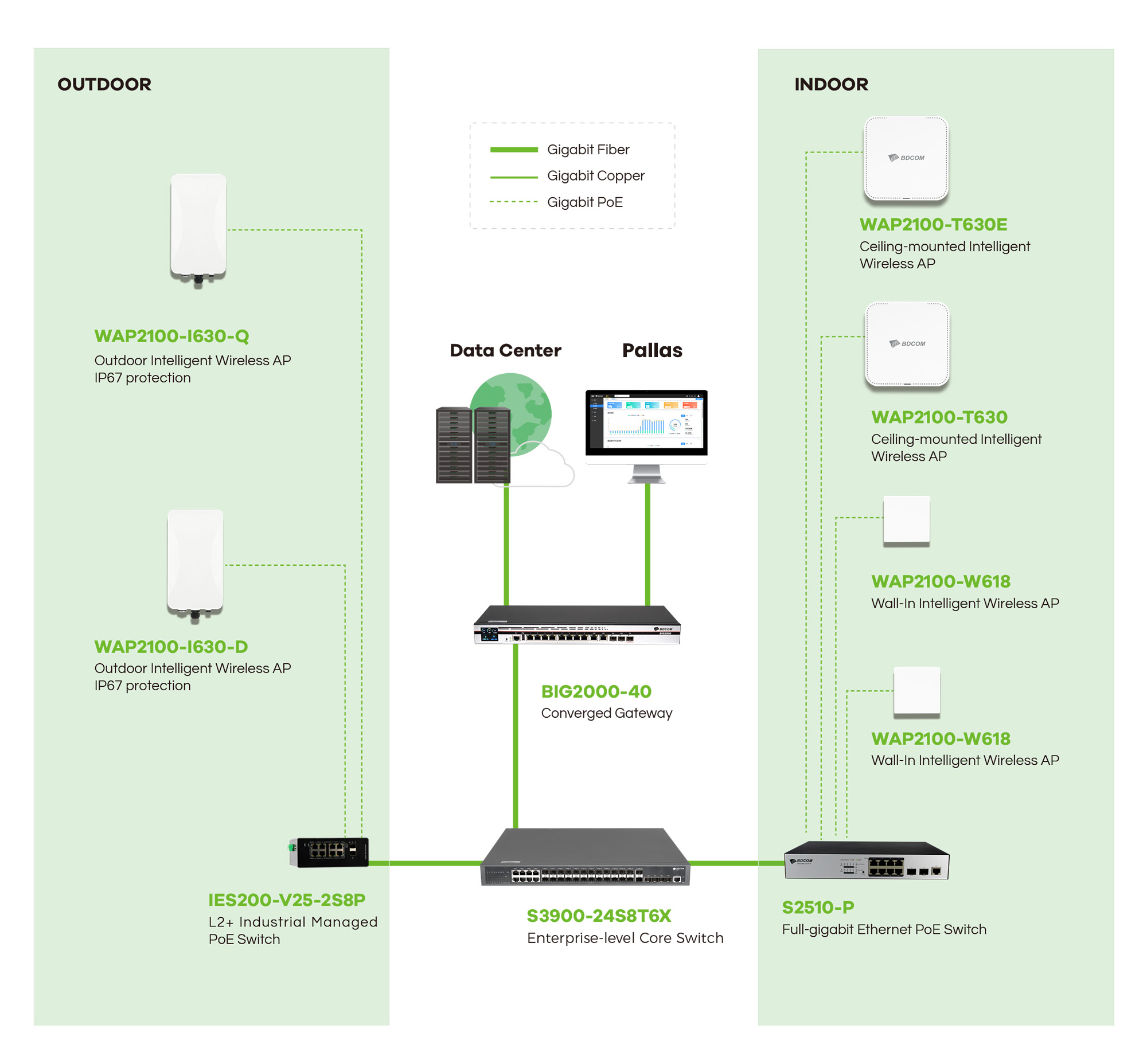

Typical Application

Technical Parameter

WAP2100-T630 WAP2100-T630E
Weight 420(g)
Mounting method Ceiling
Dimensions 186×186×36(mm)
(excluding accessories)

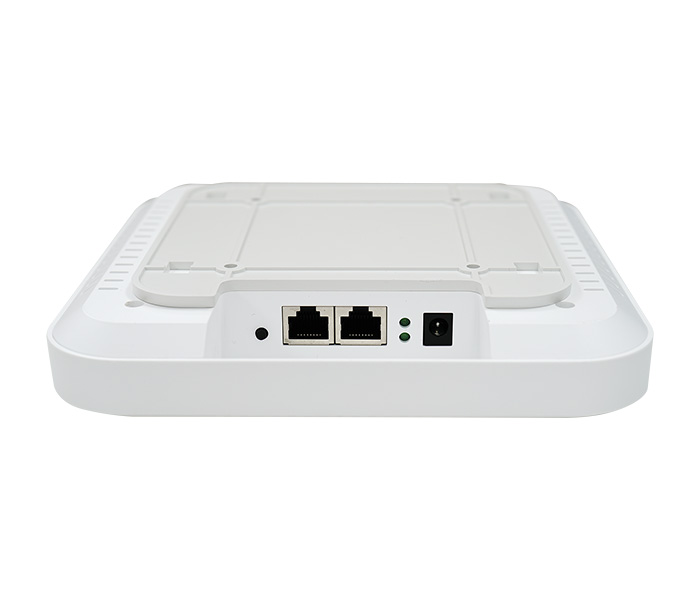

Ethernet port 1 GE WAN port
(POE supported)
Local power supply POE input or 12V DC
PoE power supply 802.3at
Antenna type Built-in omnidirectional
Antenna gain 2.4G: 3dBi
5G: 3dBi
Operating frequency bands
802.11a/n/ac 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac 2.4GHz-2.483GHz
Wi-Fi data rate 2.4G: 2*2 11ax 576Mbps
5G: 2*2 11ax 2400Mbps
Maximum total transmitting power (The actual transmission power is subject to relevant regulations.)
2.4 GHz 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
Modulation technology OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS:
DBPSK@1Mbps, DQPSK@2Mbps,
CCK@5.5/11Mbps
MIMO-OFDM(11n):
MCS 0-15
MIMO-OFDM(11ac):
MCS 0-9
MIMO-OFDM(11ax):
MCS 0-11
Modulation mode 11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps,
DBPSK@1Mbps
11a/g: OFDM:
64QAM@48/54Mbps,16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment Automatic
Reset Supported
Status LED on / Blinking/ error
Operating temperature/ Storage temperature -10ºC~40ºC/-40ºC~70ºC
Operating humidity / Storage humidity 10%~95% (non-condensing)
Protection class IP41
Power consumption < 18W
MTBF >250000H
Weight 420(g)
Mounting method Ceiling
Dimensions (excluding accessories)(mm) 186×186×36(mm)
Ethernet port 1 2.5G WAN Port
1 GE WAN port
(POE supported)
Local power supply POE input or 12V DC
PoE power supply 802.3at
Antenna type Built-in omnidirectional
Antenna gain 2.4G: 3dBi
5G: 3dBi
Operating frequency bands
802.11a/n/ac 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac 2.4GHz-2.483GHz
Wi-Fi data rate 2.4G: 2*2 11ax 576Mbps
5G: 2*2 11ax 2400Mbps
Maximum total transmitting power (The actual transmission power is subject to relevant regulations.)
2.4 GHz 27 dBm (combined power)
5 GHz 23 dBm (combined power)
Modulation technology OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS:
DBPSK@1Mbps, DQPSK@2Mbps,
CCK@5.5/11Mbps
MIMO-OFDM(11n):
MCS 0-15
MIMO-OFDM(11ac):
MCS 0-9
MIMO-OFDM(11ax):
MCS 0-11
Modulation mode 11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps,
DBPSK@1Mbps
11a/g: OFDM:
64QAM@48/54Mbps, 16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment Automatic
Reset Supported
Status LED on / Blinking/ error
Operating temperature/ Storage temperature -10ºC~40ºC/-40ºC~70ºC
Operating humidity / Storage humidity 10%~95% (non-condensing)
Protection class IP41
Power consumption < 18W
MTBF >250000H

Features

Working mode

Supports AP Mode

Routing mode

Bridging Mode

IP functions

Supports IPv4, DHCP, NTP protocols

Supports static IP allocation, dynamic DHCP and PPPoE dial-up

Wireless management

Supports CAPWAP management protocol

Supports Option43, DNS to discover AC

Supports Layer 2 and Layer 3 networking of AC and AP

Supports cross-NAT of AC and AP

Supports Layer 2 and Layer 3 user roaming

Supports clock, version and configuration synchronization of AC and AP

Application added

Supports for RTLS probe

Supports docking wireless positioning system

Wireless access

Supports 802.11 protocol suite

Supports multiple SSID management, Chinese SSID and SSID hiding

Supports no SSID, VLAN binding function

Supports SSID-based user limit and isolation

Supports each SSID to specify the parameter template separately

Supports country code setting

User authentication

Supports local authentication and Cloud authentication

Supports multiple authentication methods such as local account, SMS, WeChat, and Vouther

Supports user black and white lists

Supports account-based access period control and bandwidth control

Security

Supports PSK authentication method

Supports WEP, WPA, WPA2, WPA3 wireless encryption

Supports IP-based, MAC-based filtration

Supports DDoS, De-Auth anti-attack

Supports Rogue AP detection

QoS

Supports 802.11e/WMM

Supports global trac rate limit

Supports AP-based, VLANbased, User-based trac rate limit

Supports frequency-based, APbased flow load balancing

Wireless optimization

Supports one-click network optimization, customs wireless RF parameters

Default 8 wireless scene templates, supports user-defined templates

Supports 5G prior access, supports restrict access of lowrate users

Management and maintenance

Supports traditional device management such as Telnet, SSH, Web, SNMP and TR069

Supports ping, tracert, debug and other diagnostic tools templates

Supports CAPWAP-based AC centralized management

Supports COP unified management

Support AP indicator on and off

Ordering Information

WAP2100-T Series
WAP2100-T630 WAP2100-T630 ceiling-mounted intelligent WiFi6 AP, 1 GE port and 1 console port, built-in MIMO antennas, 2976Mbps wireless, supports PoE and adaptor power supply (excluding power adaptor)
WAP2100-T630E WAP2100-T630E ceiling-mounted intelligent WiFi6 AP, 1 2.5G port, 1 GE port , built-in MIMO antennas, 2976Mbps wireless, supports PoE and adaptor power supply (excluding power adaptor)
