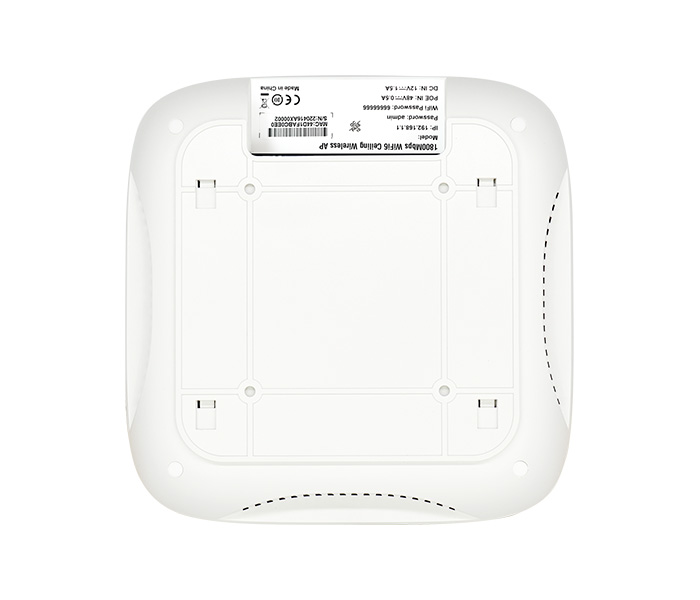

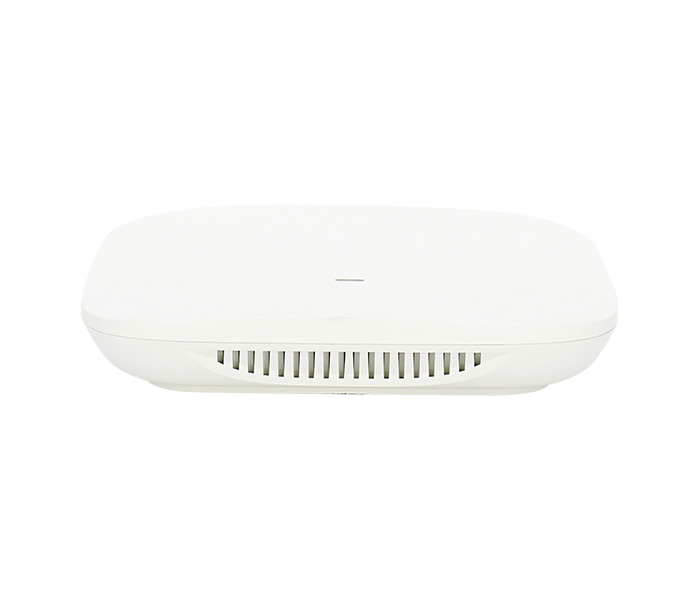

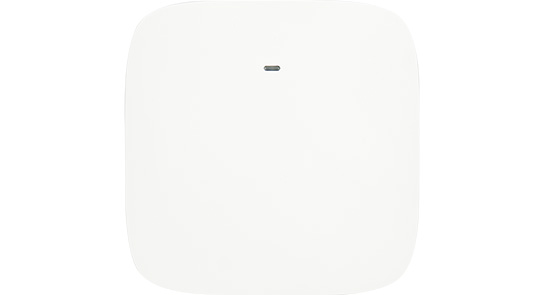

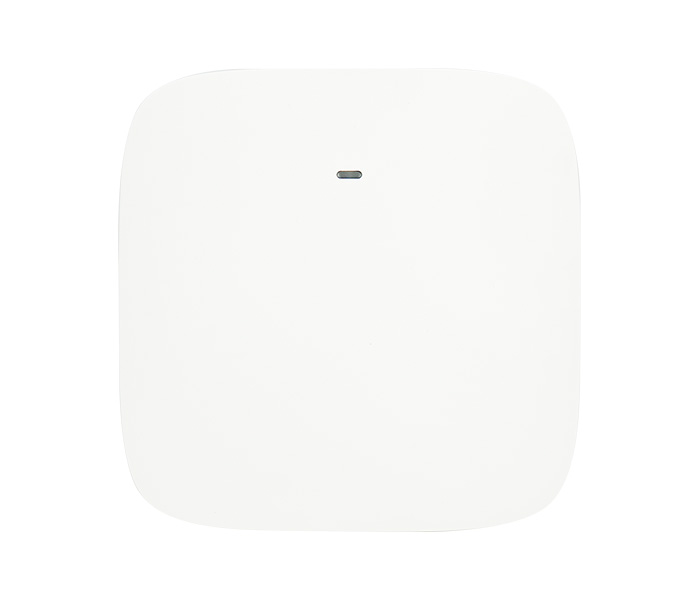

Ceiling-mounted 1800M WiFi6 AP

BDCOM WAP2100-T618 is the BDCOM-developed WiFi6 ceiling-mounted wireless AP oriented for medium and highdensity wireless scenarios such as enterprises, campus, hospitals, governments, hotels, and smart buildings.

Highlight Features

High-performance Wireless Solutions

Powerful Automatic Network Optimization

Rich Manageable Features

Ceiling-mounted/desktop Intelligent AP

WAP2100-T618 is designed with high-performance RF chip solution, with high throughput and strong concurrent access capability.
WAP2100-T618 stands out with the builtin omnidirectional MIMO high-power antenna to meet the wireless coverage to the greatest extent.

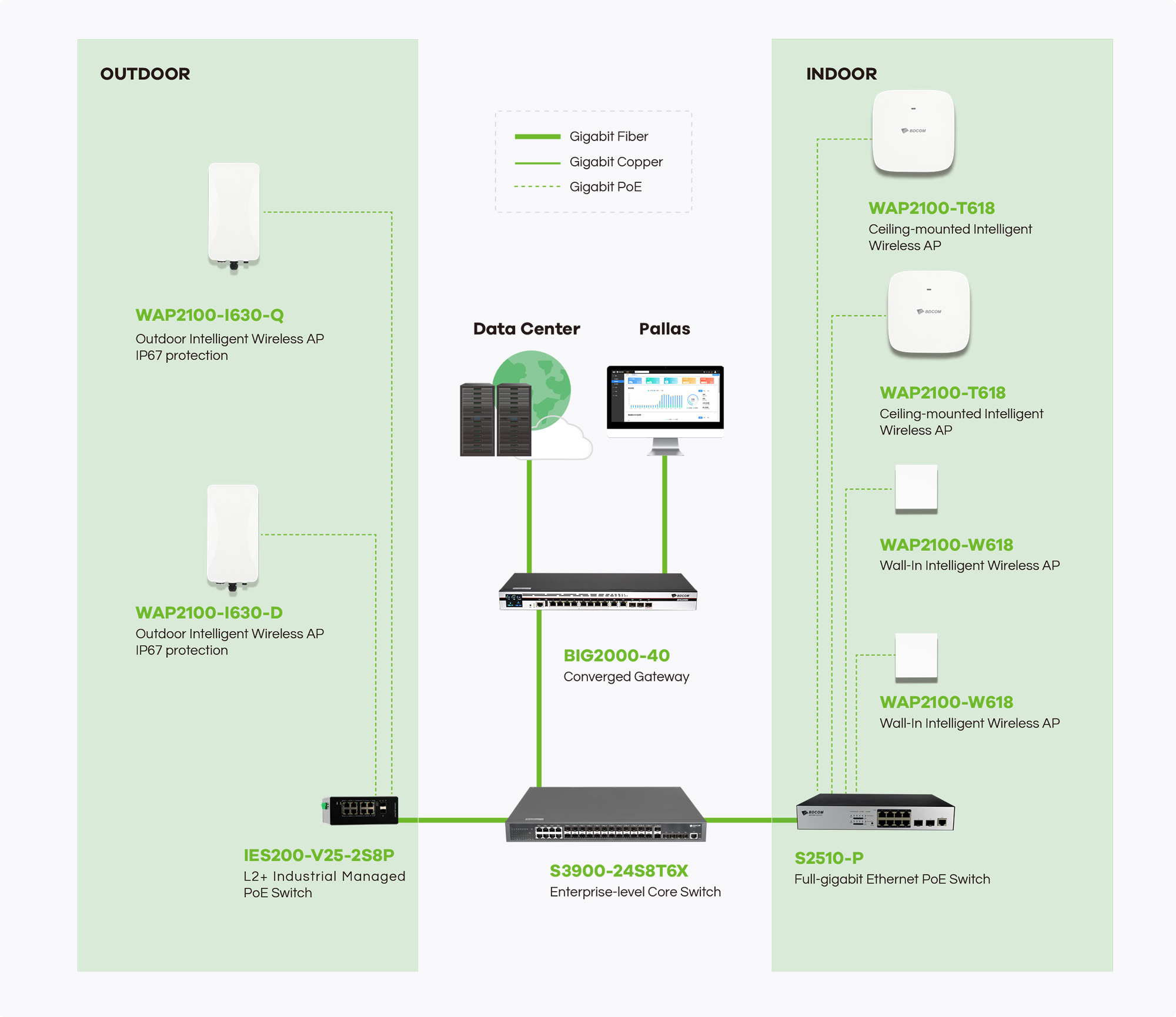

Typical Application

Technical Parameter

Weight 420(g)
Mounting method Ceiling
Dimensions (excluding accessories) 168x168x32(mm)

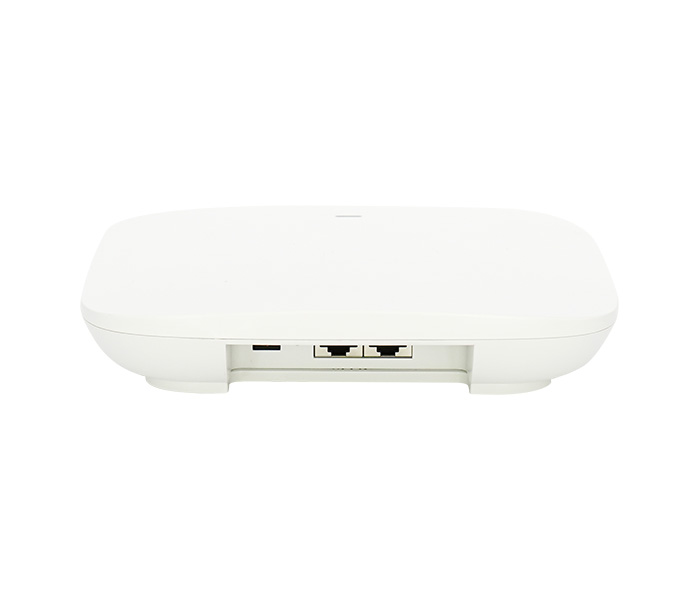

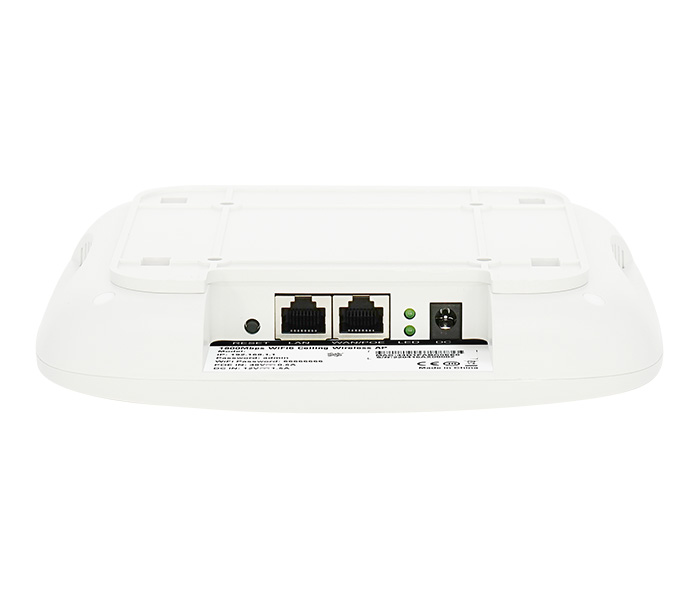

Ethernet port 1 GE WAN port
(POE supported)
1 GE LAN port
Local power supply POE input or 12V DC
PoE power supply 802.3at
Antenna type Built-in omnidirectional
Antenna gain 2.4G: 3dBi
5G: 3dBi
Operating frequency bands
802.11 a/n/ac: 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac 2.4GHz-2.483GHz
Wi-Fi data rate 2.4G: 2*2 11ax 573Mbps
5G: 2*2 11ax 1200Mbps
Maximum total transmitting power (The actual transmission power is subject to relevant regulations.)
2.4 GHz 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
Modulation technology OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
MCS 0-15
MCS 0-9
MCS 0-11MIMO-OFDM(11ax): MCS 0-11
Modulation mode 11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps,
11a/g: OFDM:
64QAM@48/54Mbps, 16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11ac: MIMO-OFDM:
11ax: MIMO-OFDM:
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment Automatic
Reset Supported
Status LED on / Blinking/ error
Operating temperature/ Storage temperature -10ºC~40ºC/-40ºC~70ºC
Operating humidity / Storage humidity 10%~95% (non-condensing)
Protection class IP41
Power consumption < 15W
MTBF >250000H


Working mode

Supports AP Mode

Routing mode

Bridging Mode

IP functions

Supports IPv4, DHCP, NTP protocols

Supports static IP allocation, dynamic DHCP and PPPoE dial-up

Wireless management

Supports CAPWAP management protocol

Supports Option43, DNS to discover AC

Supports Layer 2 and Layer 3 networking of AC and AP

Supports cross-NAT of AC and AP

Supports Layer 2 and Layer 3 user roaming

Supports clock, version and configuration synchronization of AC and AP

Application added

Supports for RTLS probes

Supports docking wireless positioning system

Wireless access

Supports 802.11 protocol suite

Supports multiple SSID management, Chinese SSID and SSID hiding

Supports no SSID, VLAN binding function

Supports SSID-based user limit and isolation

Supports each SSID to specify the parameter template separately

Supports country code setting

User authentication

Supports local authentication and Cloud authentication

Supports multiple authentication methods such as local account, SMS, WeChat, and Voucher

Supports user black and white lists

Supports account-based access period control and bandwidth control


Supports PSK authentication method

Supports WEP, WPA, WPA2, WPA3 wireless encryption

Supports IP-based, MAC-based filtration

Supports DDoS, De-Auth anti-attack

Supports Rogue AP detection


Supports 802.11e/WMM

Supports global trac rate limit

Supports AP-based, VLANbased, User-based trac rate limit

Supports frequency-based, APbased flow load balancing

Wireless optimization

Supports one-click network optimization, customs wireless RF parameters

Default 8 wireless scene templates, supports user-defined templates

Supports 5G prior access, supports restrict access of lowrate users

Management and maintenance

Supports traditional device management such as Telnet, SSH, Web, SNMP and TR069

Supports ping, tracert, debug and other diagnostic tools templates

Supports CAPWAP-based AC centralized management

Supports COP unified management

Support AP indicator on and off

Ordering Information

WAP2100-T Series
WAP2100-T618 WAP2100-T618 ceiling-mounted intelligent WiFi6 AP, 2 Gigabit Ethernet ports, built-in MIMO antennas, 1800Mbps wireless, supports POE and adaptor power supply (excluding power adaptor)
