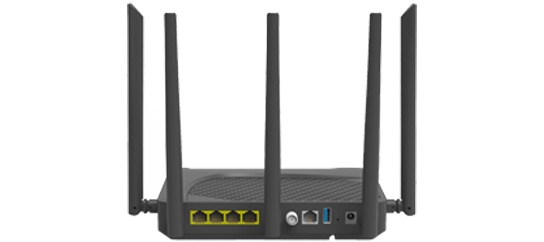

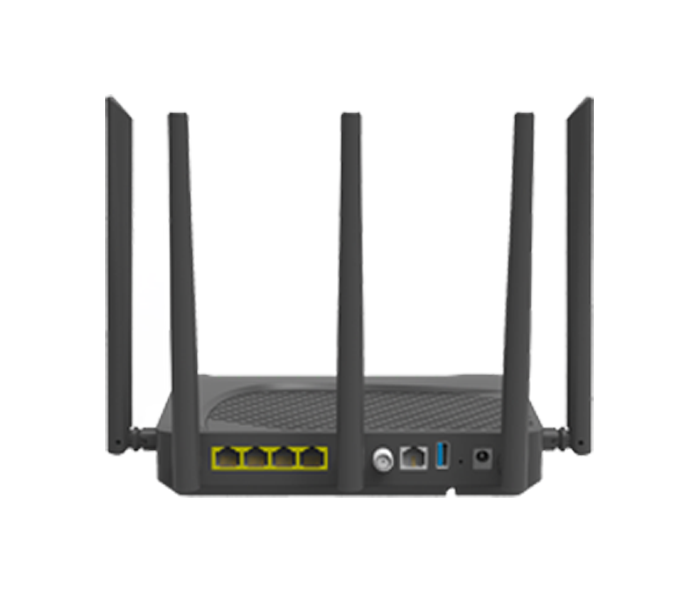

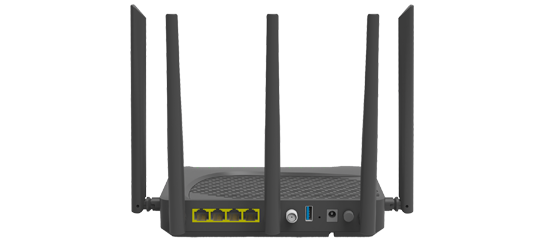

xPON CATV WiFi6 HGU(Home Gateway Unit)

BDCOM GP1706-4GC/4GVC HGU is an intelligent home gateway terminal product launched by BDCOM for multi-service converged networks, integrating wir eless and voice functionalities.

GPON and EPON autoadaptive

Efficient bandwidth usage and Ethernet services

The Splitting ratio ups to  1:128

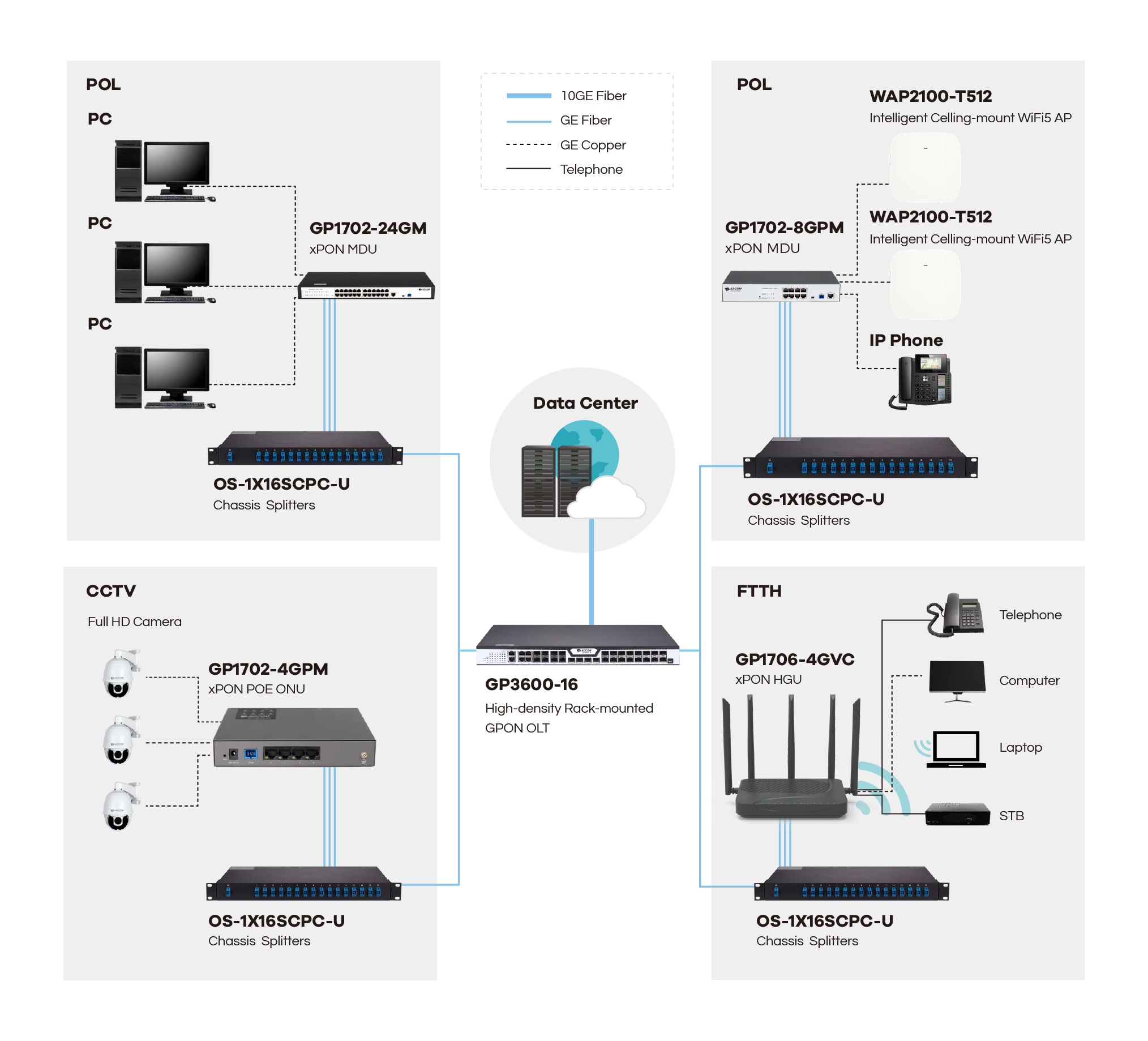

Application Diagram

Technical Parameter

PON ports 1-Port SC/APC
UNI ports 4-Port Gigabit RJ45
WIFI 3000Mbps
Voice /
USB2.0 1
Optical power
TX power 0.5~5dBm
RX sensitive <-28dBm
CATV
TX level ≥70dbuv
Receiver AGC Range -15~-5dbm
AC adaptor Input: 100-240V AC Output: 12V/1.5A
Max. consumption (W) 18W
Chassis
Dimensions(WxDxH mm) 185x135x36
Weight(Kg)(empty) 0.3
Operating
Temperature -0℃ -45℃
Humidity 10%~85% (non-condensing )
Storage
Temperature -40℃ -85℃
Humidity 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1-Port SC/APC
UNI ports 4-Port Gigabit RJ45
WIFI 3000Mbps
Voice 1
USB2.0 1
Optical power
TX power 0.5~5dBm
RX sensitive <-28dBm
CATV
TX level ≥70dbuv
Receiver AGC Range -15~-5dbm
AC adaptor Input: 100-240V AC Output: 12V/1.5A
Max. consumption (W) 18W
Chassis
Dimensions(WxDxH mm) 185x135x36
Weight(Kg)(empty) 0.3
Operating
Temperature -0℃ -45℃
Humidity 10%~85%(non-condensing )
Storage
Temperature -40℃ -85℃
Humidity 5%-95% (non-condensing )
Accessories Power adaptor

Features

Standards

ITU-T G.984/G.988

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation /Trunk/Translation mode VLAN

CTC2.0 defined VLAN

IP Service

DHCP server/client

Routing/Bridging/Hybrid mode

DNS, DDNS

PPPOE

NAT/NAPT

xPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line  mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including CLI, HTTP, SNMP, TR069 and TELNET

Software upgrade through TFTP and  WEB, OMCI, etc.

Local or server syslog

Voice Service

SIP, T.38 FAX

Three-way calling

Call waiting

Hot-line calling

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Wireless

802.11b/g/n/ac/ax

2x2 MIMO

Multi SSID

SSID encryption

Wireless channel (configurable)

Ordering Information

GP1706-4GC/4GVC
GP1706-4GC xPON CATV WiFi6 HGU, 1-Port GPON/EPON(SC/APC), 4-Port Gigabit RJ45 + 1-Port RF(British System), 1-Port USB2.0, dual band 3000M WiFi6, 5 external antennas, plastic casing, DC12/1.5A power adapter.
GP1706-4GVC xPON CATV WiFi6 HGU, 1-Port GPON/EPON(SC/APC), 4-Port Gigabit RJ45 + 1-Port RJ11(POTS) + 1-Port RF(British System), 1-Port USB2.0, dual band 3000M WiFi6, 5 external antennas, plastic casing, DC12/1.5A power adapter.
